2. Linkage with Server Management Infrastructure

This chapter provides an overview of the server management infrastructure included in Enterprise Linux with Dependable Support.

This chapter covers:

• 2.1. Overview of the server management infrastructure

• 2.2. Overview of linkage between the server management infrastructure and EXPRESSCLUSTER

• 2.3. Setup of the function to link with the server management infrastructure

• 2.4. Message receive monitor resources

2.1. Overview of the server management infrastructure

This server management infrastructure is included in Enterprise Linux with Dependable Support. This software provides the following functions:

• Recording information about failures detected by the expanded device driver

• Linking with EXPRESSCLUSTER X to perform a failover when the expanded device driver detects a fatal system failure

For details, see the manual for Enterprise Linux with Dependable Support.

2.2. Overview of linkage between the server management infrastructure and EXPRESSCLUSTER

EXPRESSCLUSTER's function for linking with the server management infrastructure is not used for EXPRESSCLUSTER to perform monitoring itself. This linkage function is used for EXPRESSCLUSTER to receive messages spontaneously sent by the driver module and passively perform a failover or other processing.

The following shows an overview:

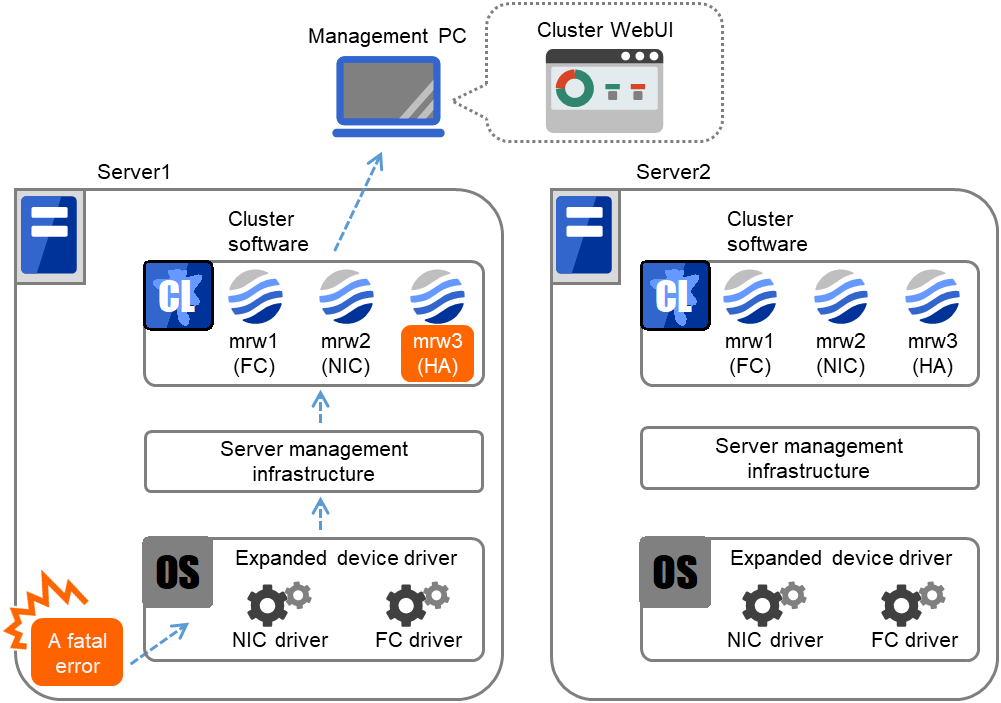

Fig. 2.1 Overview of the linkage between server management infrastructure and EXPRESSCLUSTER

If a fatal system error occurs, the expanded device driver included in Enterprise Linux with Dependable Support (hereafter referred to as the expanded driver) sends a message to EXPRESSCLUSTER through the server management infrastructure. After receiving such a message, EXPRESSCLUSTER performs the following operations.

• EXPRESSCLUSTER makes the status of the corresponding message receive monitor (mrw) abnormal. The administrator can visually determine that an error was detected by checking the status using the Cluster WebUI or an EXPRESSCLUSTER command.

• When a failure occurs, EXPRESSCLUSTER performs an operation failover or shuts down the OS according to the specified action.

2.3. Setup of the function to link with the server management infrastructure

For details about resources other than the message receive monitor resource, see the EXPRESSCLUSTER manuals below.

• Installing EXPRESSCLUSTER

  • "Installing EXPRESSCLUSTER" in the Installation and Configuration Guide

  • "Registering the license" in the Installation and Configuration Guide

• Creating EXPRESSCLUSTER configuration information

  • "Creating the cluster configuration data" in the Installation and Configuration Guide

  • "Verifying a cluster system" in the Installation and Configuration Guide
  To use the function for linking with the server management infrastructure, the message receive monitor resources must be registered with the cluster . To create configuration information, register the necessary message receive monitor resources as described in the manual. For the message receive monitor resources, see "Message receive monitor resources".

• Uploading EXPRESSCLUSTER configuration information

  • "Modifying the cluster configuration data" in the Installation and Configuration Guide

2.4. Message receive monitor resources

The message receive monitor resources monitor error messages reported from outside. This section only covers the part associated with linkage with the server management infrastructure. For other cases, see "Monitor resource details" in the Reference Guide.

2.4.1. Notes on message receive monitor resources

A message receive monitor resource cannot execute any scrip before the final action if it is linked with the server management infrastructure.

Do not use the clprexec command, because EXPRESSCLUSTER manages the status of a message receive monitor resource if it is linked with the server management infrastructure.

When the keyword by a message receive monitor resource is specified, if an error is detected in the device specified as the monitor target, an error occurs and the error correction action is performed .

If no device is specified as the keyword by a message receive monitor resource and an error is detected in any device that matches the Category, an error occurs and the error correction action is performed.

2.4.2. Category by a message receive monitor resource

A message receive monitor resource receives the following message types when it is linked with the server management infrastructure.

1. NIC

   Monitors the error messages of network interface cards.
2. FC

   Monitors the error messages of Fibre Channel.
3. HA/SS

   Monitors the error messages of the EXPRESSCLUSTER X HA/StorageSaver.
4. HA/AM

   Monitors the error messages of the EXPRESSCLUSTER X HA/ApplicationMonitor.
5. HA/RS

   Monitors the error messages of the EXPRESSCLUSTER X HA/ResourceSaver.
6. SPS

   Monitors the error messages of the SPS.

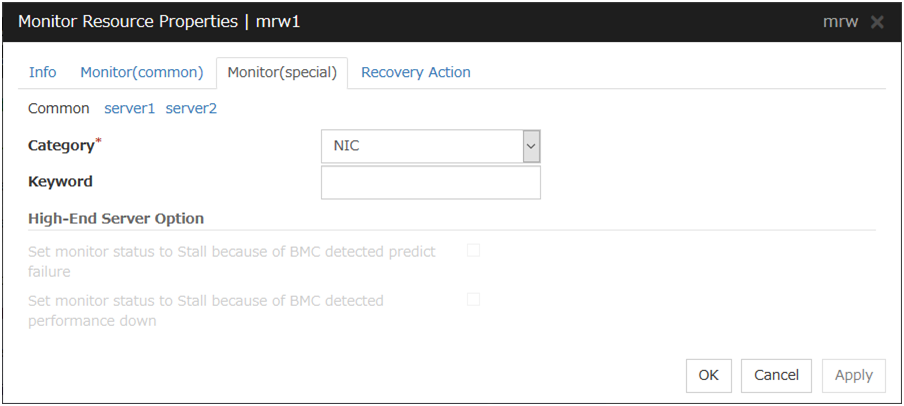

2.4.3. Monitor(special) tab

For more information on the Info tab and the Monitor (common) tab, see "Monitor resource details" in the Reference Guide.

Category (within 32 bytes)

Specify a category.

Be sure to select a default character string from the list box.

Keyword (within 1023 bytes)

Specify a monitor target.

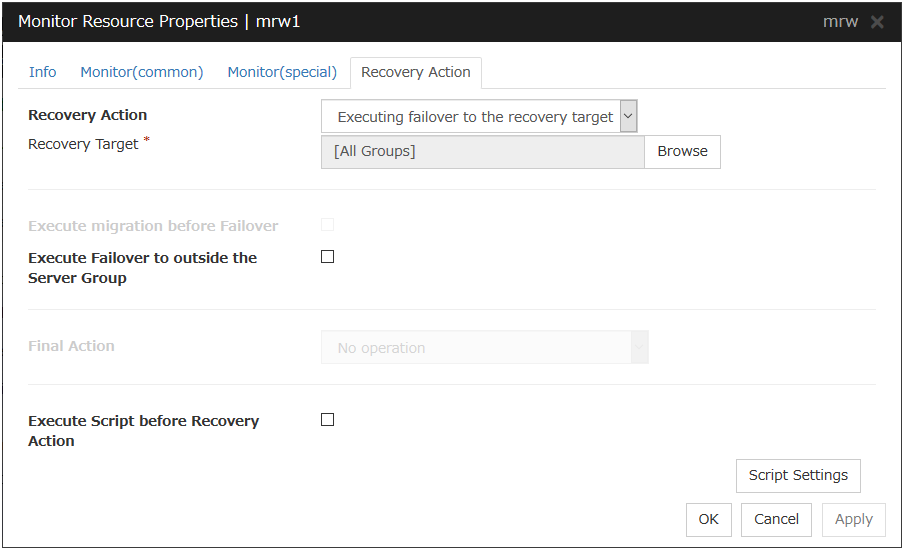

2.4.4. Recovery Action tab

For more information on the Info tab and the Monitor (common) tab, see "Monitor resource details" in the Reference Guide.

Specify the recovery target and the action upon detecting an error. For message receive monitor resources, select "Restart the recovery target", " Executing failover to the recovery target", or " Execute the final action" as the action to take when an error is detected. However, if the recovery target is inactive, the recovery action is not performed.

Recovery Action

Select the action to take when a monitor error is detected.

• Executing recovery script

  Let the recovery script run upon the detection of a monitor error.
• Restart the recovery target

  Restart the group or group resource selected as the recovery target when a monitor error is detected.
• Executing failover to the recovery target

  Perform a failover for the group selected as the recovery target or the group to which the group resource selected as the recovery target belongs when a monitor error is detected.
• Execute the final action

  Execute the selected final action when a monitor error is detected.

Execute Failover to outside the Server Group

Configurable only for message receive monitor resources. Specify whether to fail over to a server group other than the active server group upon the reception of an error message.

Execute Script before Recovery Action

This setting is disabled when linking with the server management infrastructure. Execute the script before the operation to be performed upon error detection, as selected for the recovery action.

For details about the settings other than the above, see "Recovery Action tab" in "Monitor resource" in "Monitor resource details" in the Reference Guide.
