EXPRESSCLUSTER X Installation and Configuration Guide
This guide is intended for system engineers and administrators who want to build, operate, and maintain a cluster system. Instructions for designing, installing, and configuring a cluster system with EXPRESSCLUSTER are covered in this guide.
This guide is intended for system administrators. The guide covers topics such as how to operate EXPRESSCLUSTER, function of each module and troubleshooting. The guide is supplement to the Installation and Configuration Guide.
This guide is intended for administrators and for system administrators who want to build, operate, and maintain EXPRESSCLUSTER-based cluster systems. The guide describes maintenance-related topics for EXPRESSCLUSTER.
This guide is intended for administrators and for system engineers who want to build EXPRESSCLUSTER-based cluster systems. The guide describes features to work with specific hardware, serving as a supplement to the Installation and Configuration Guide.
2.1. Steps from configuring a cluster system to installing EXPRESSCLUSTER
Before you set up a cluster system that uses EXPRESSCLUSTER, you should carefully plan the cluster system with due consideration for factors such as hardware requirements, software to be used, and the way the system is used. When you have built the cluster, check to see if the cluster system is successfully set up before you start its operation.
This guide explains how to create a cluster system with EXPRESSCLUSTER through step-by-step instructions. Read each chapter by actually executing the procedures to install the cluster system. Following is the steps to take from designing the cluster system to operating EXPRESSCLUSTER:
The following is the procedure for configuring a cluster system to run an operation test:
Prepare for installing EXPRESSCLUSTER. Determine the hardware configuration and the setting information of a cluster system to be constructed.
Install EXPRESSCLUSTER to server machines, create a configuration data file on the Cluster WebUI by using the setting information created in Steps 1 and 2 , and construct a cluster. After that, verify that a cluster system operates normally.
Perform an evaluation required before starting the EXPRESSCLUSTER operation. Test the operations of a constructed cluster system, and then check what should be checked before starting the EXPRESSCLUSTER operation. On the last part of this section, how to uninstall and reinstall EXPRESSCLUSTER is described.
Refer to the Reference Guide as you need when operating EXPRESSCLUSTER by following the procedures introduced in this guide. See the Getting Started Guide for installation requirements.

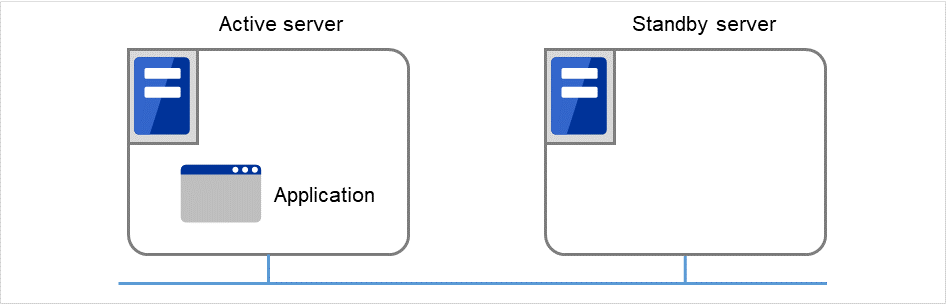

EXPRESSCLUSTER is software that enhances availability and expandability of systems by a redundant (clustered) system configuration. The application services running on the active server are automatically taken over to the standby server when an error occurs on the active server.
The following can be achieved by installing a cluster system that uses EXPRESSCLUSTER.

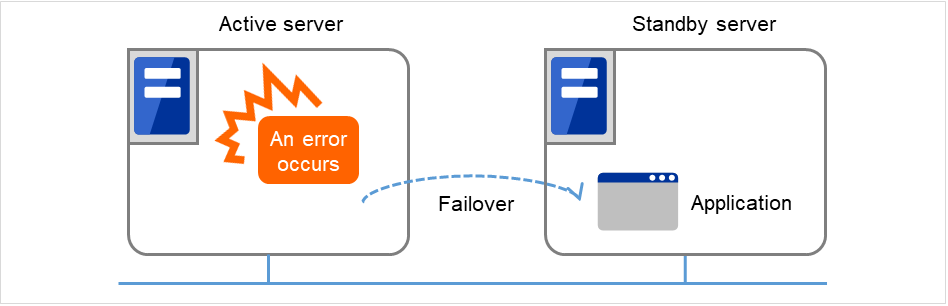

High availability

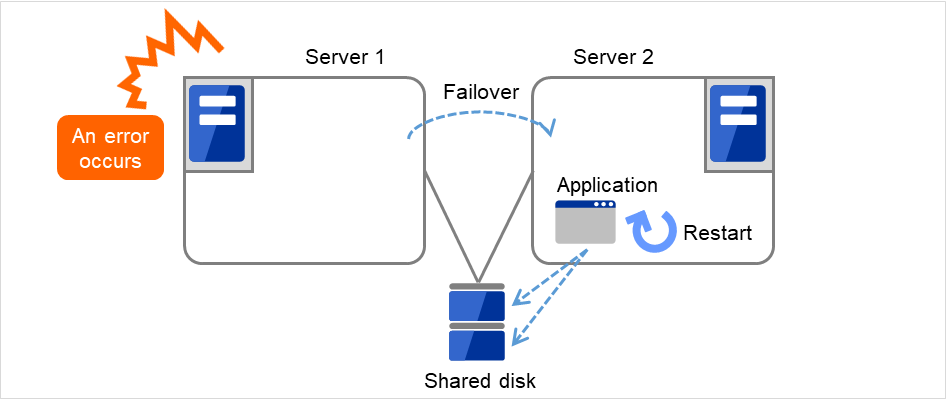

The down time is minimized by automatically failing over the applications and services to a "healthy" server when one of the servers which configure a cluster stops.
High expandability
An expandable database platform can be provided by supporting a parallel database up to 32 servers.

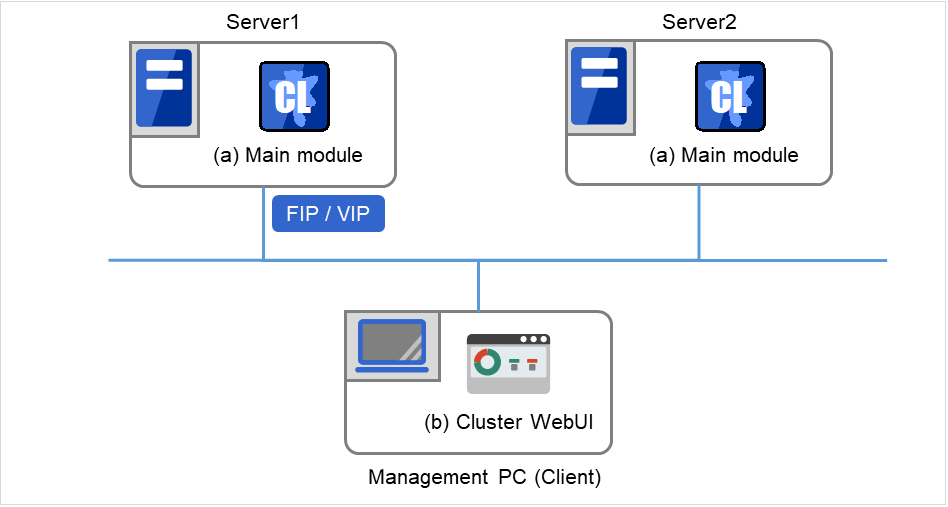

The main module of EXPRESSCLUSTER and has all high availability functions of the server. Install this module on each server constituting the cluster.
Cluster WebUI
This is a tool to create the configuration data of EXPRESSCLUSTER and to manage EXPRESSCLUSTER operations. It is distinguished from the EXPRESSCLUSTER Server because the Cluster WebUI is operated through a Web browser on the management PC.
You need to determine an appropriate hardware configuration to install a cluster system that uses EXPRESSCLUSTER. The configuration examples of EXPRESSCLUSTER are shown below.
There are two types of system configurations: shared disk type and data mirror type, which has a subset, hybrid type.

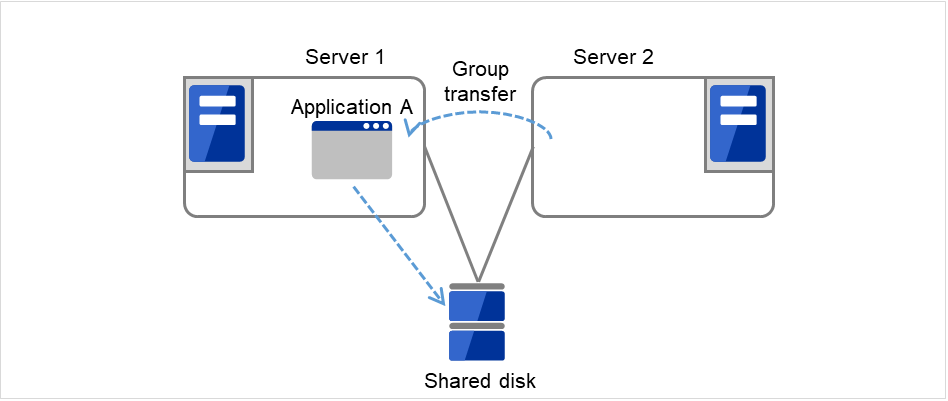

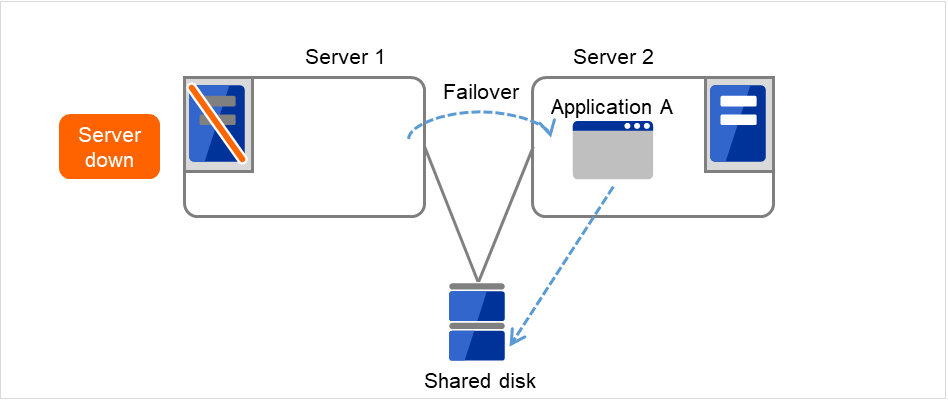

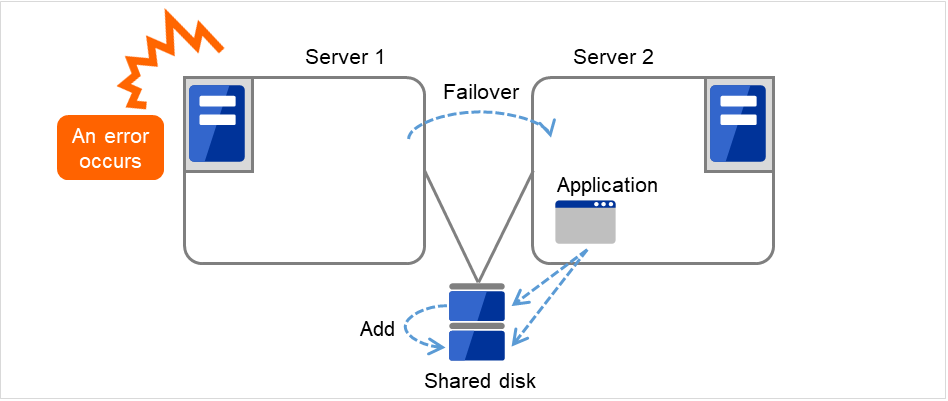

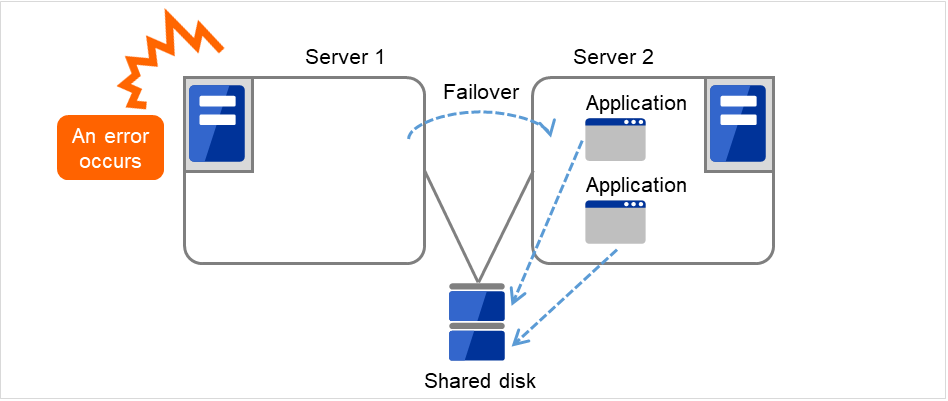

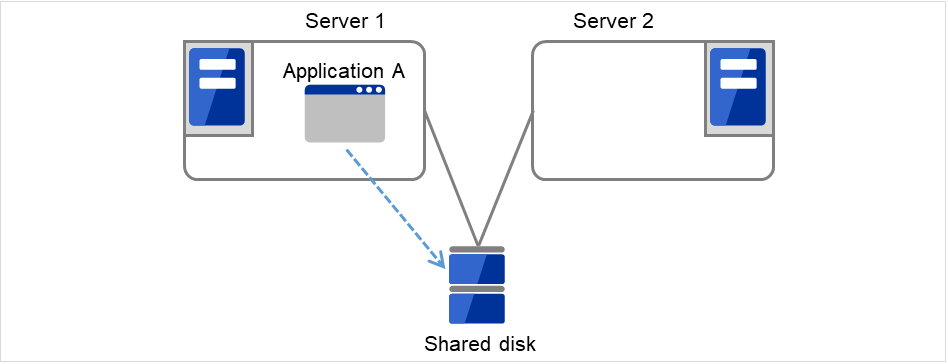

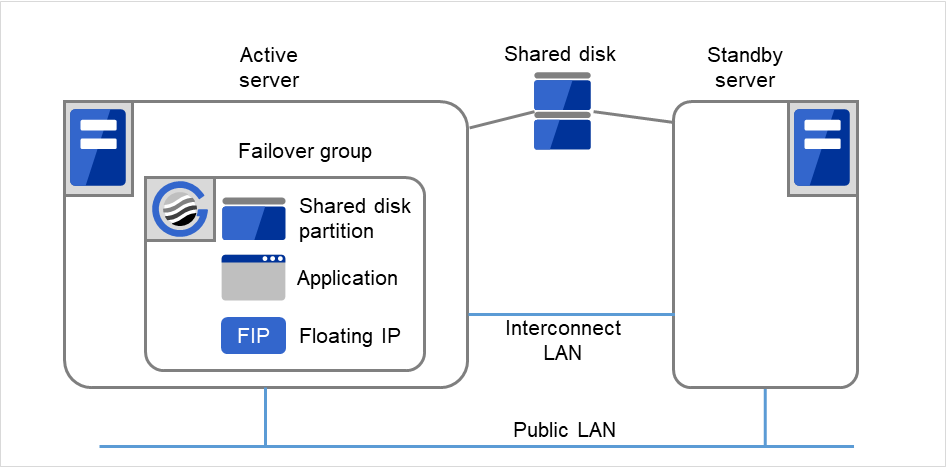

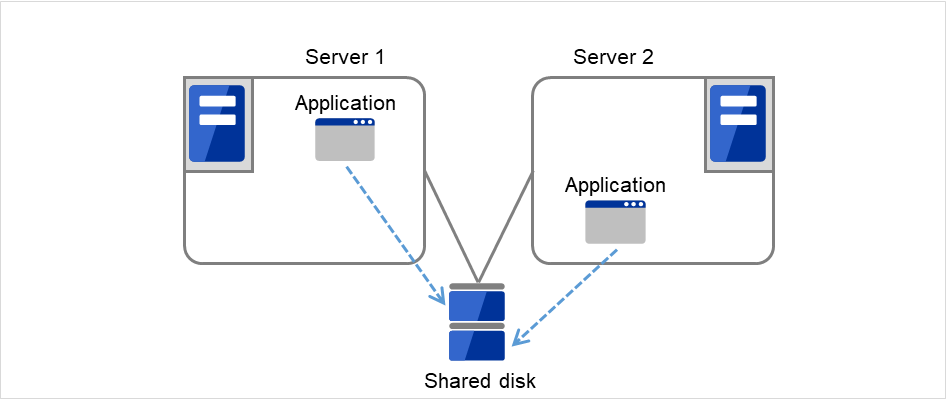

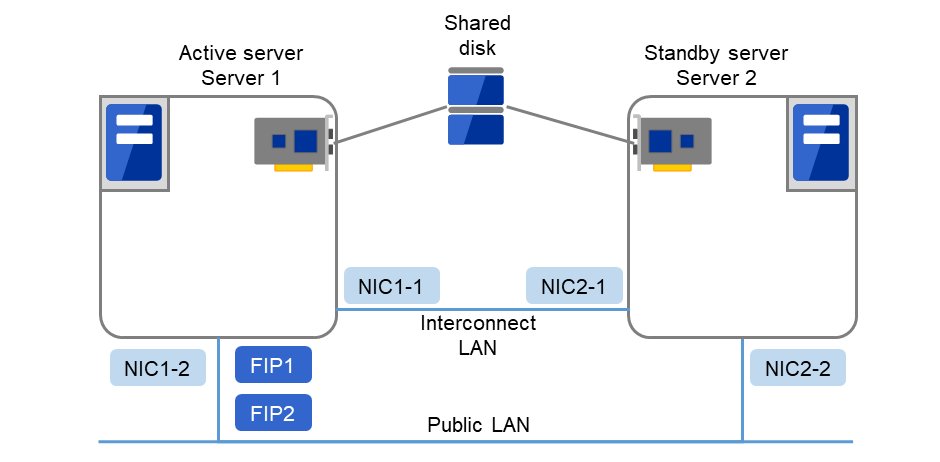

Shared disk type
When the shared disk type configuration is used, application data is stored on a shared disk that is physically connected to servers, by which access to the same data after failover is ensured.
You can make settings that block the rest of the server from accessing the shared disk when one server is using a specific space of the shared disk.
The shared disk type is used in a system such as a database server where a large volume of data is written because performance in writing data does decrease.

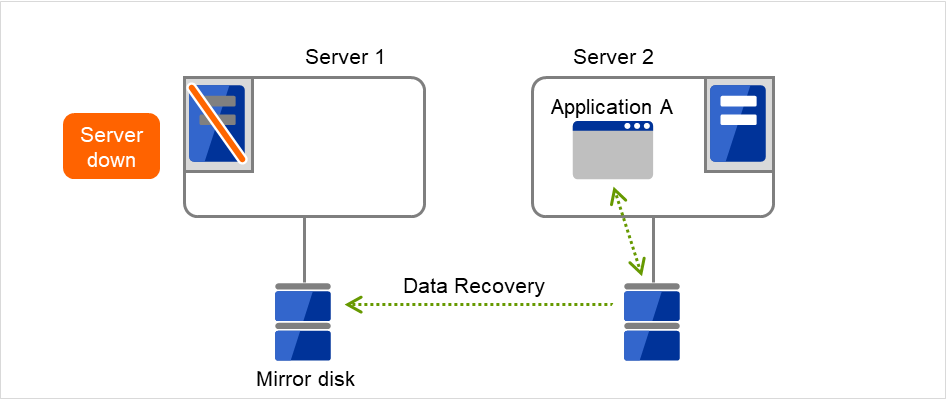

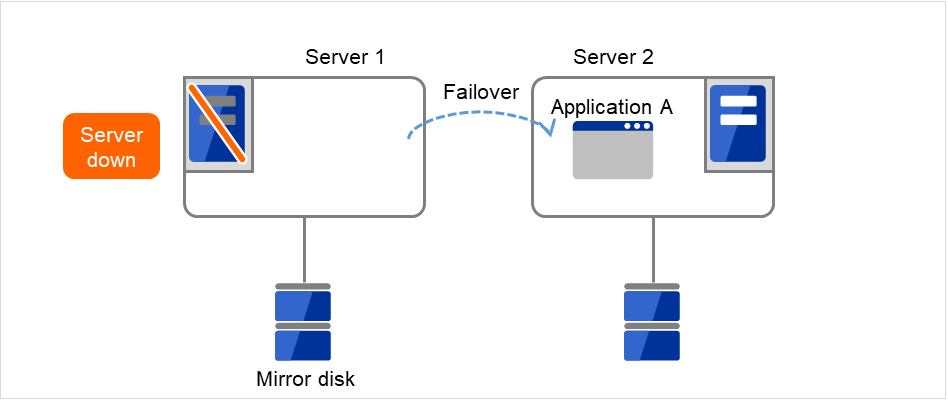

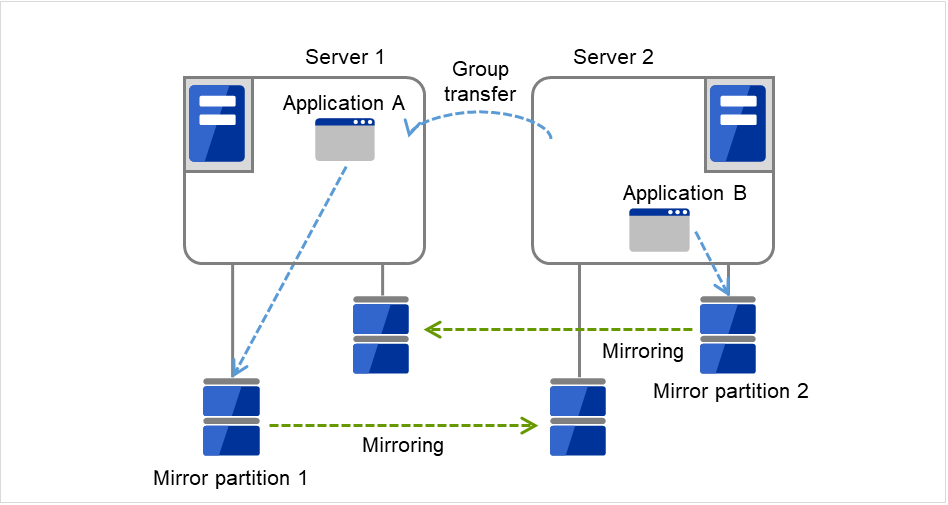

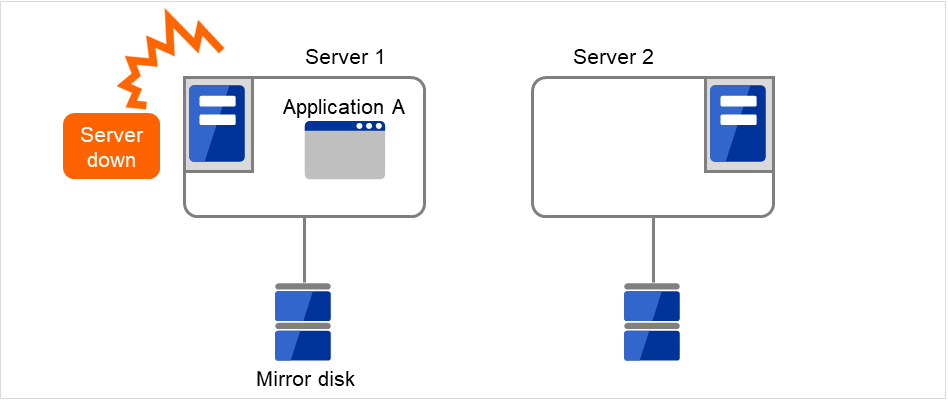

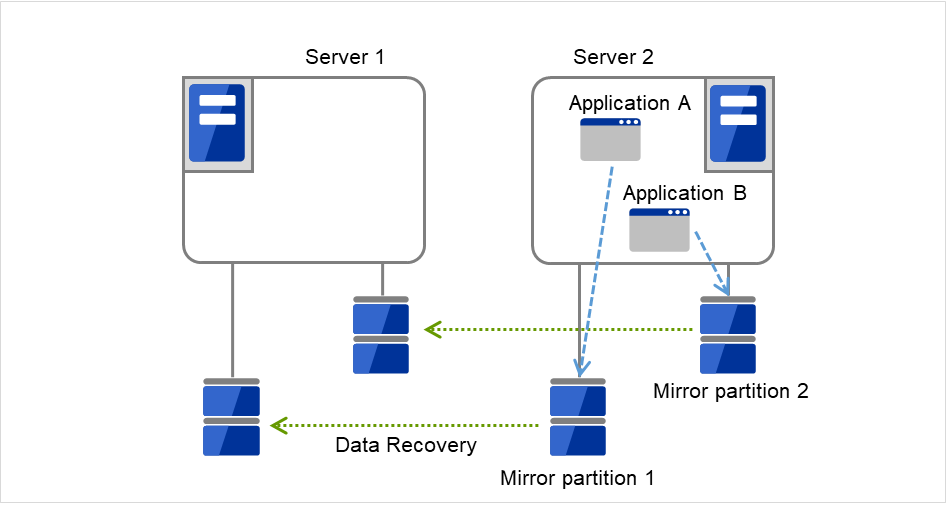

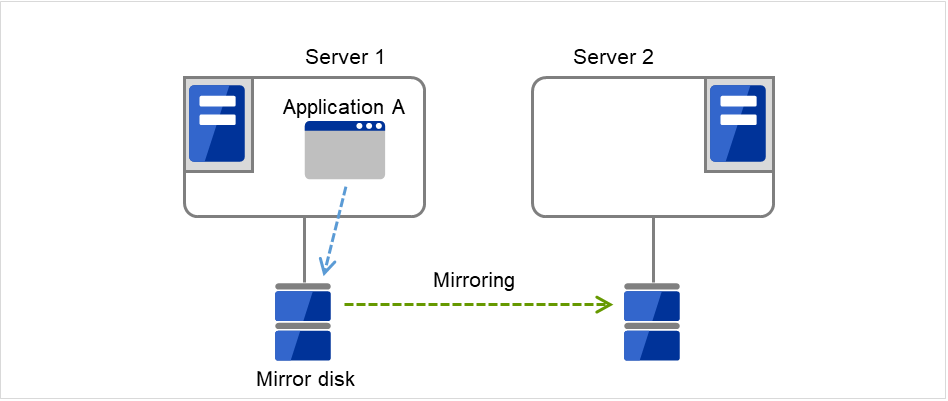

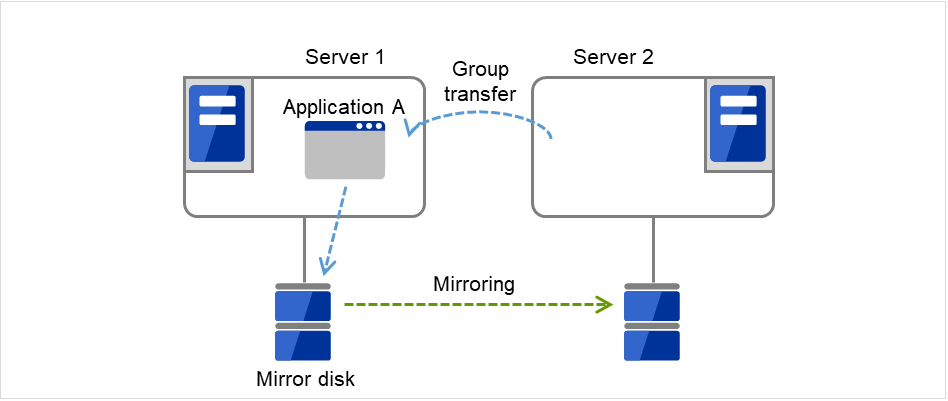

Data mirror type
When the data mirror type configuration is used, application data is always mirrored between disks of two servers, by which access to the same data after failover is ensured.
When data is written on the active server, writing the data is considered as being completed after the data is written on the standby server simultaneously.
Performance in writing decreases because data is written on the standby server. However, cost of system can be reduced because no external disk such as a shared disk is necessary, and the cluster can be achieved only by disks on servers.
Hybrid type
This configuration is a combination of the shared disk type and the mirror disk type. By mirroring the data on the shared disk, the data is placed in the third server, which prevents the shared disk being a single point of failure. This method is a subset of the data mirror type.
Data writing performance, operational topology and precautions of the mirror disk type apply to the hybrid type.
The following show configuration examples of the shared disk type, the mirror disk type and the hybrid type. Use these examples to design and set up your system.

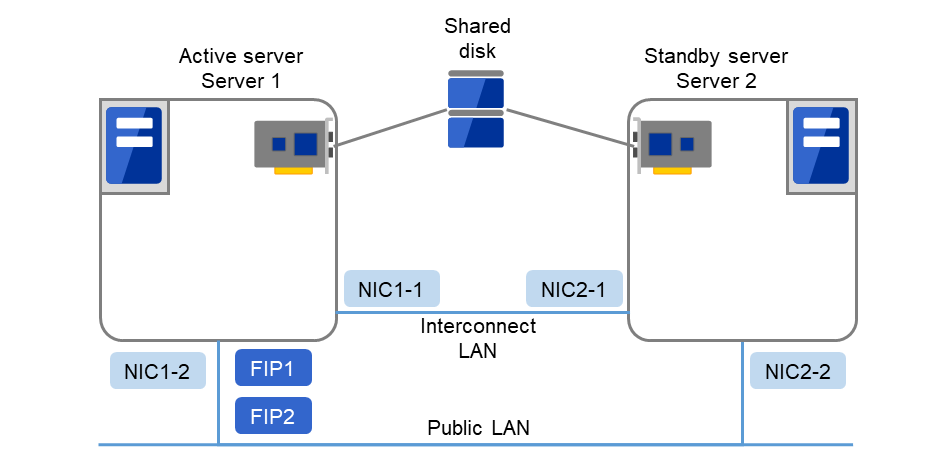

2.3.2. Example 1: configuration using a shared disk with two nodes
The most commonly used system configuration:
Different models can be used for servers.
Use LAN cables for interconnection. (A dedicated HUB can be used for connection as in the case with the 4-nodes configuration)

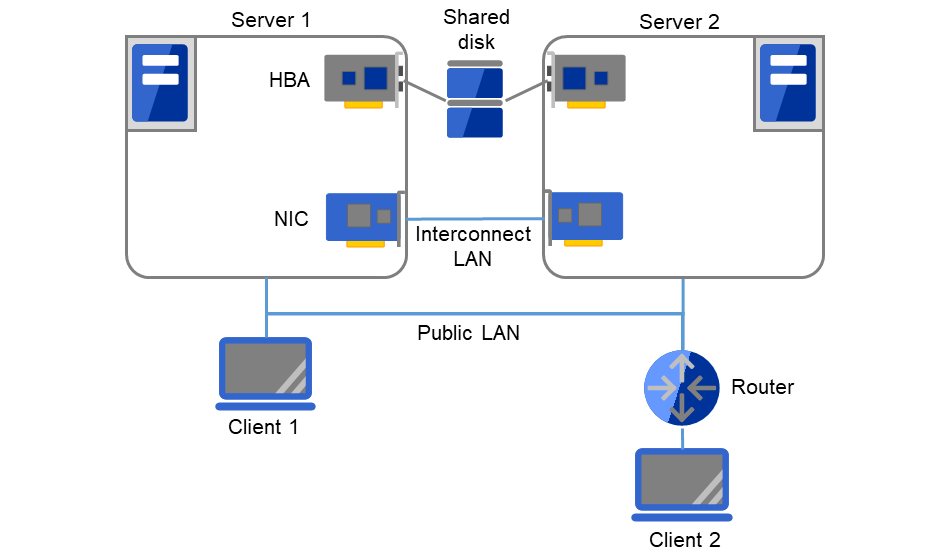

Fig. 2.4 Example of a configuration using a shared disk with two nodes
Client 1, which exists on the same LAN as that of the cluster servers, can access them through a floating IP address.
Client 2, which exists on a remote LAN, can also access the cluster servers through a floating IP address. Using floating IP addresses does not require the router to be configured for them.

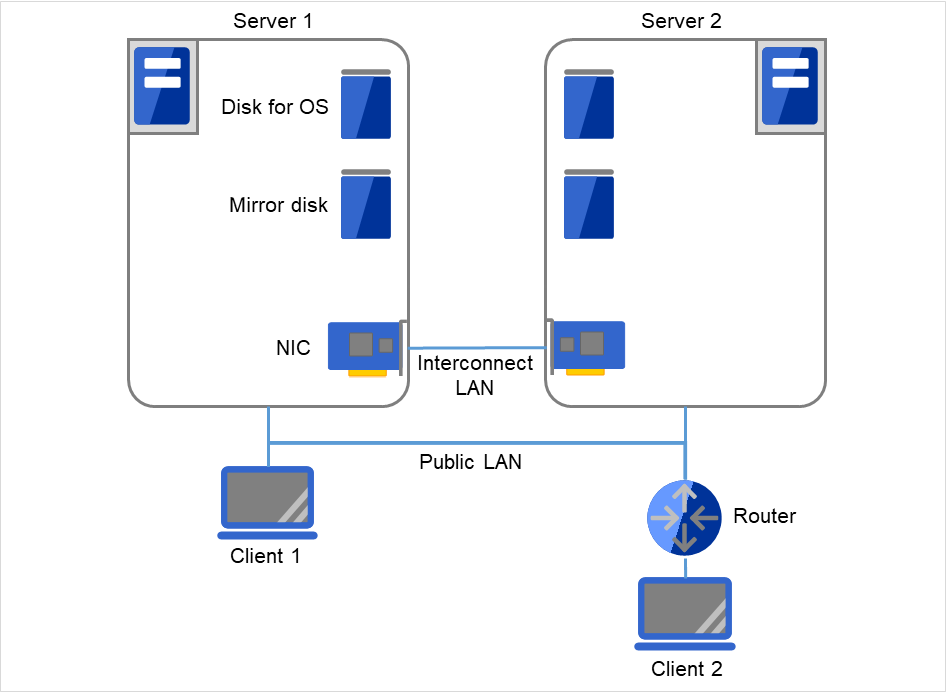

2.3.3. Example 2: configuration using mirror disks with two nodes
Different models can be used for servers. However, servers should have the same architecture.
Use LAN cables for interconnection. Use cross cables for the interconnection between the mirror disks (mirror disk connect). Do not connect a HUB.

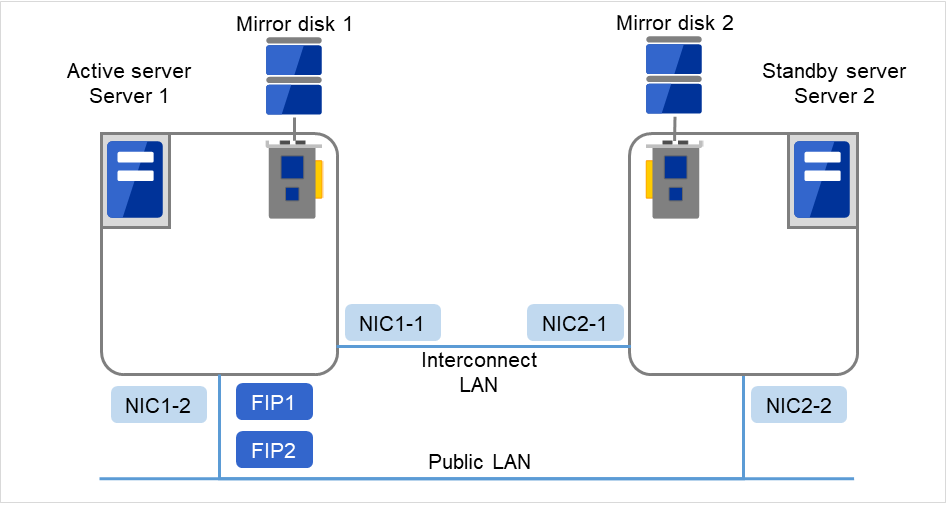

Fig. 2.5 Example of a configuration using mirror disks with two nodes
Client 1, which exists on the same LAN as that of the cluster servers, can access them through a floating IP address.
Client 2, which exists on a remote LAN, can also access the cluster servers through a floating IP address. Using floating IP addresses does not require the router to be configured for them.

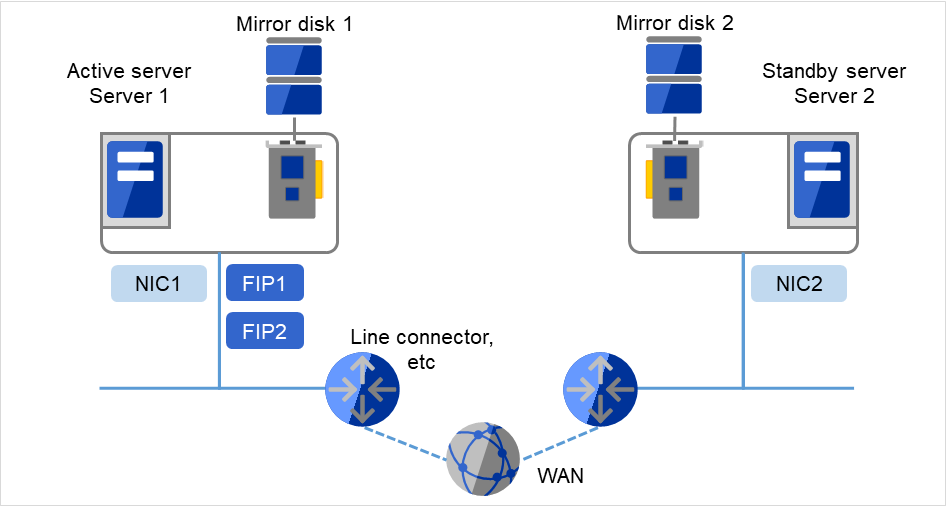

2.3.4. Example 3: configuration using mirror disks with two nodes and one LAN
Different models can be used for servers, but the servers must have the same architecture.

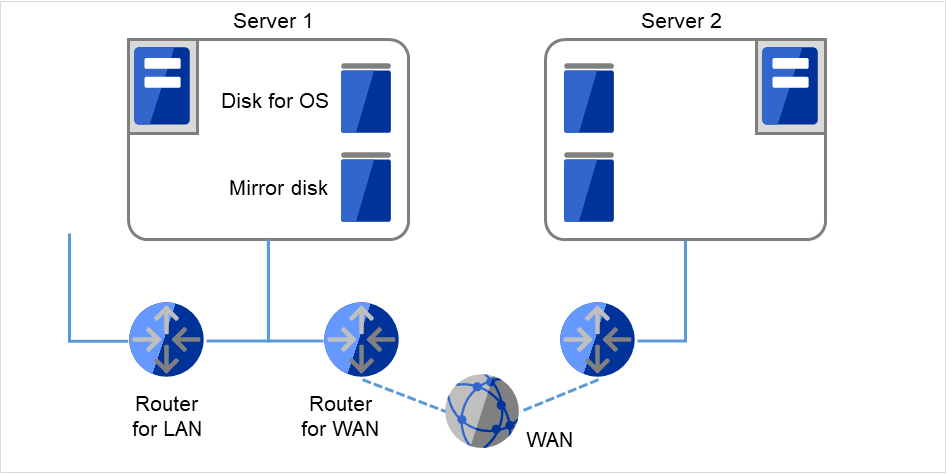

Fig. 2.6 Example of a configuration using mirror disks with two nodes and one LAN
WAN and LAN routers are to be monitored for the Ping NP resolution method.
The WAN throughput must be enough to update data in an operation. EXPRESSCLUSTER does not support boosting line speed.

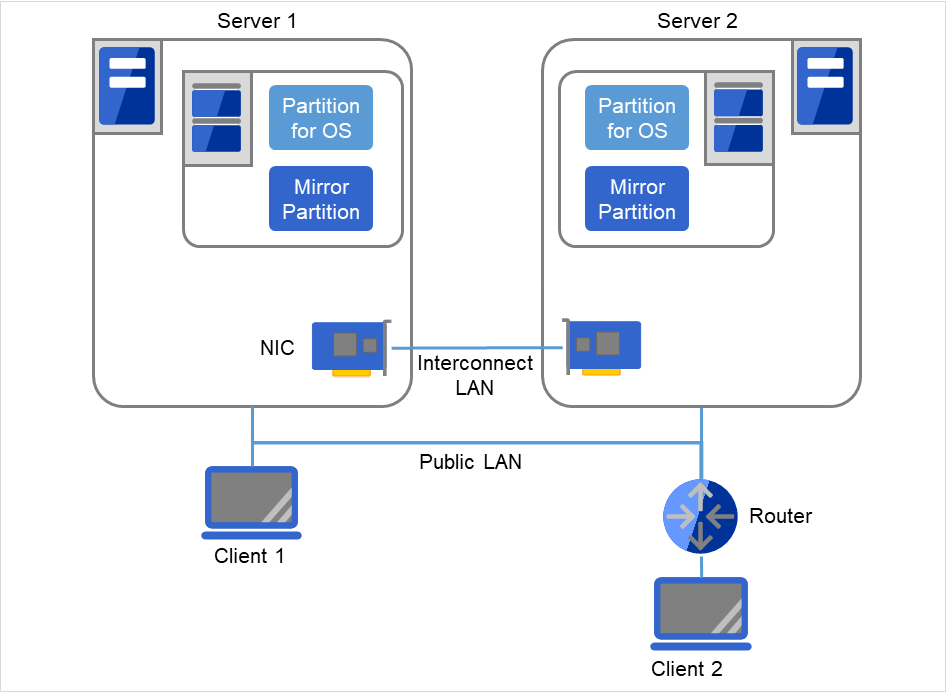

2.3.5. Example 4: configuration using mirror partitions on the disks for OS with two nodes
As shown below, a mirroring partition can be created on the disk used for the OS.
Fig. 2.7 Example of a configuration using mirror partitions on the disks for OSs with two nodes
Client 1, which exists on the same LAN as that of the cluster servers, can access them through a floating IP address.
Client 2, which exists on a remote LAN, can also access the cluster servers through a floating IP address. Using floating IP addresses does not require the router to be configured for them.

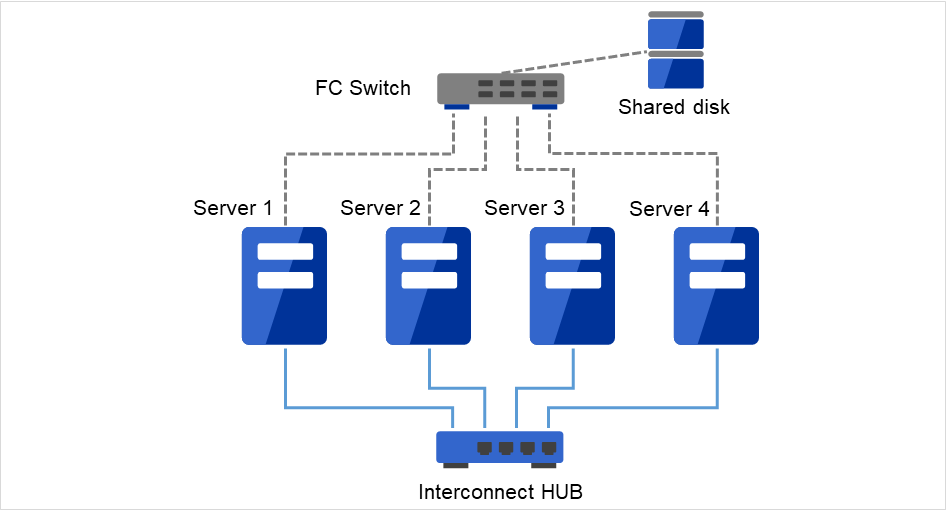

As is the case with two nodes, connect a shared disk.
Install a dedicated HUB for interconnect.
Fig. 2.9 Example of a configuration with four nodes
Interconnect LAN cables are connected to the interconnect hub, which is not connected to any other server or client.

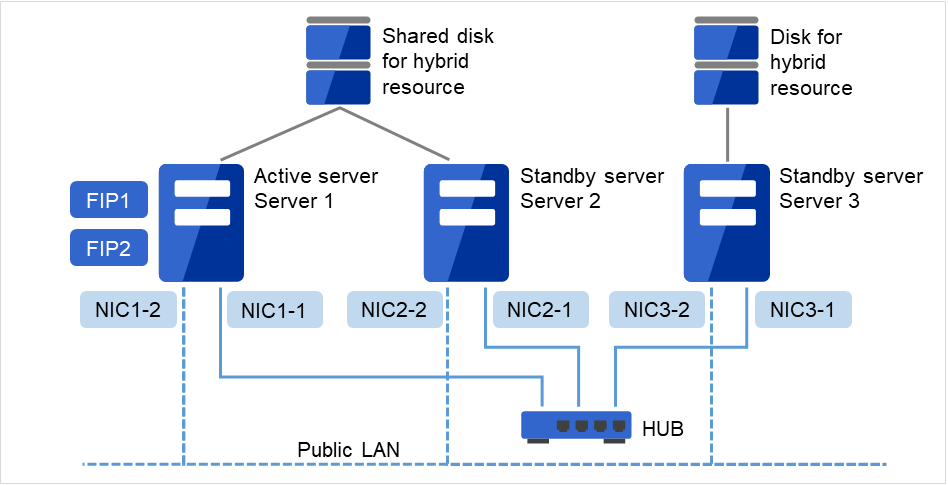

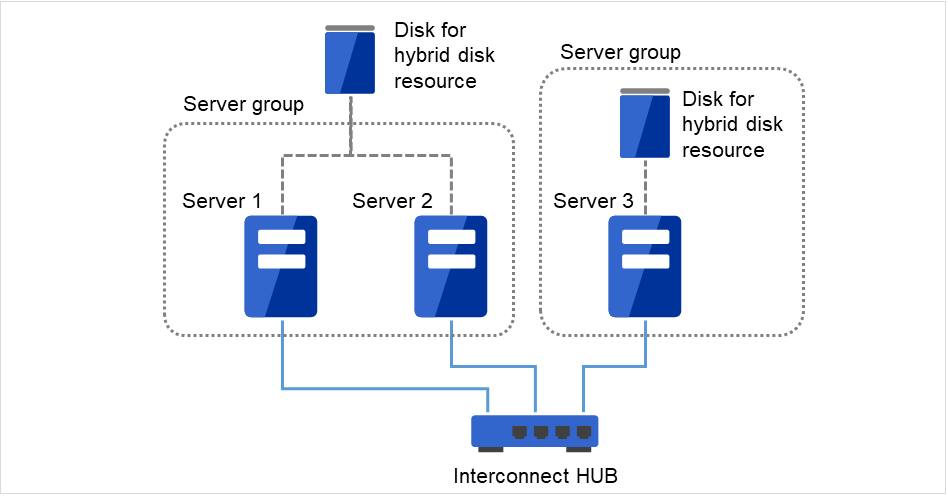

2.3.8. Example 7: Configuration of hybrid type with three nodes
This is a configuration with three nodes, which consists of two nodes connected to the shared disk and one node with the disk to be mirrored.
Different models can be used for servers but the servers must be configured in the same architecture.
Install a dedicated HUB for interconnection and LAN of mirror disk connect.
For the HUB, use a fast HUB.
Fig. 2.10 Example of a configuration of the hybrid type with three nodes
Interconnect LAN cables are connected to the interconnect hub, which is not connected to any other server or client.

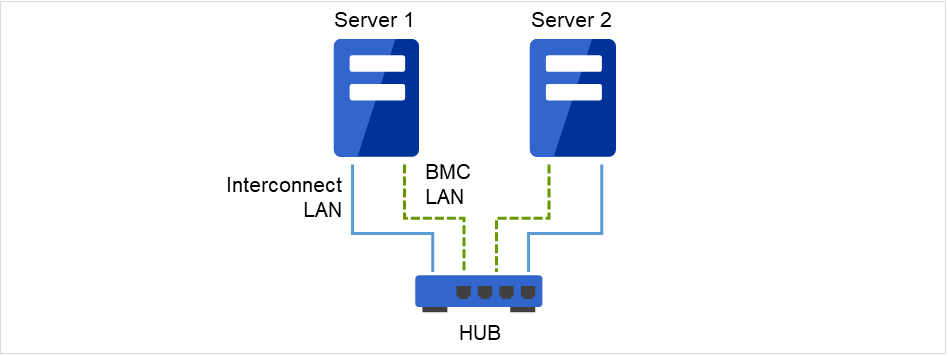

2.3.9. Example 8: Configuration for using BMC-related functions with two nodes
This is an example of 2-node cluster configuration for using the BMC linkage functions, such as the forced stop function of a physical machine.
When using BMC-related functions, connect the interconnect LAN and BMC management LAN via a dedicated HUB.
Use as fast a HUB as is available.
Fig. 2.11 Example of a configuration for using BMC-related functions with two nodes
Interconnect LAN and BMC LAN cables are connected to the hub, which is not connected to any other server or client.
2.4. Checking system requirements for each EXPRESSCLUSTER module

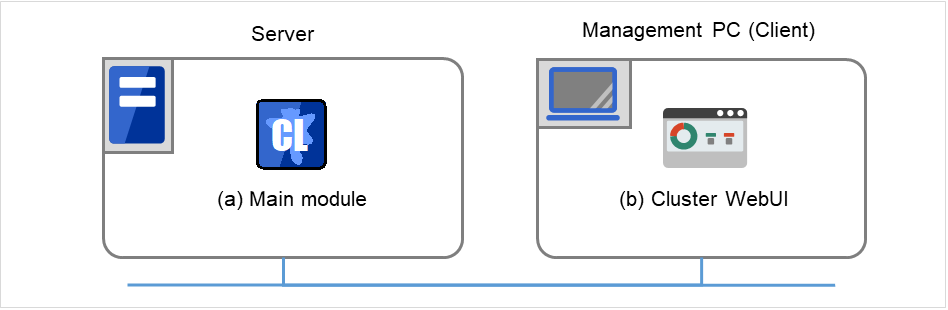

EXPRESSCLUSTER X consists of two modules: EXPRESSCLUSTER Server (main module) and Cluster WebUI. Check configuration and operation requirements of each machine where these modules will be used. For details about the operating environments, see "Installation requirements for EXPRESSCLUSTER" in the Getting Started Guide.
2.5. Example of EXPRESSCLUSTER (main module) hardware configuration
The EXPRESSCLUSTER Server is a core component of EXPRESSCLUSTER. Install it on each server that constitutes a cluster. Cluster WebUI is included in the EXPRESSCLUSTER Server and it is automatically installed once the EXPRESSCLUSTER Server is installed.
Following is the recommended specification for the EXPRESSCLUSTER Server:
Ethernet port: 2 or more ports
Shared disk (For disk resource and/or hybrid disk resource)
Disk for mirroring or free partition (For mirror disk resource or hybrid disk resource)
DVD-ROM drive
See also
For information on system requirements for supported hardware and OS, refer to the Getting Started Guide.
2.6. Verifying system requirements for the Cluster WebUI

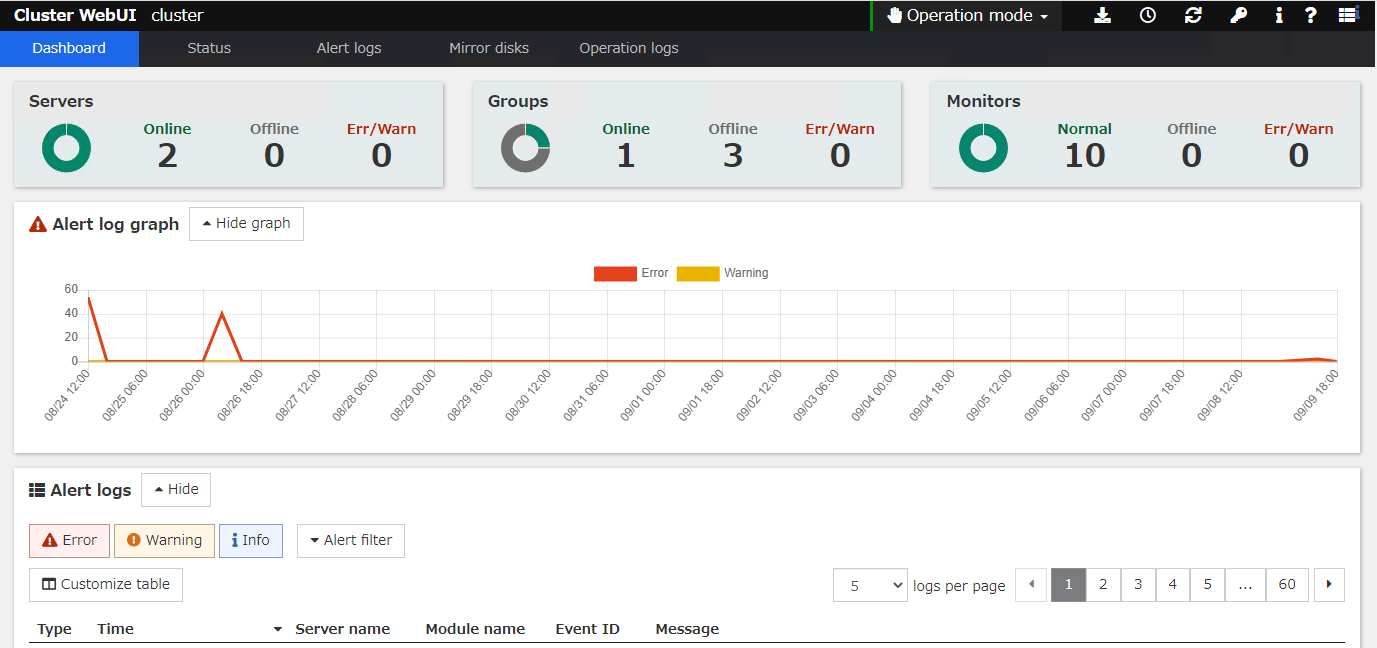

To monitor a cluster system that uses EXPRESSCLUSTER, use Cluster WebUI, which accesses from a management PC via a Web browser. Therefore, a management PC should be able to make access to the cluster via network. The management PC can be Linux or Windows.
For information of the latest system requirements of the Cluster WebUI (supported operating systems and browsers, required memory and disk size) see the Getting Started Guide.
Determine a hardware configuration considering an application to be duplicated on a cluster system and how a cluster system is configured. Read "3.Configuring a cluster system" before you determine a hardware configuration.
When you continue using the data on the shared disk (in the cases such as reinstalling the server), do not create partitions or a file system. If you create partitions or a file system, data on the shared disks will be deleted.

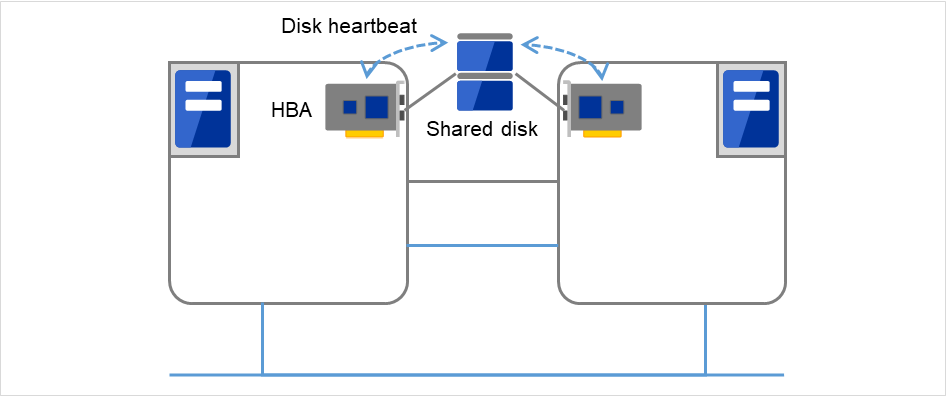

1-a. Allocate a partition for disk heartbeat resource.
Allocate a partition on a shared disk to be used as a disk heartbeat resource in EXPRESSCLUSTER. Create a partition on one of the servers in the cluster that uses the shared disk. Use the fdisk command to set 83 (Linux) for the partition ID.
Note
Typically, only one partition is used for heartbeat resources. However, in addition to the LUN used for heartbeat, you should create another partition used for the disk heartbeat resources in each disk as a spare dummy partition. This is because heartbeat needs to be done in other LUN when the file system gets corrupted and the device name is changed by disk error or other errors. Use the same partition number for partitions for disk heartbeat in all the LUNs.
Note
A disk heartbeat partition should be 10 MB (10*1024*1024 bytes) or larger. It is not necessary to construct any file system for disk heartbeat partitions.
1-b. Allocate a partition for disk resource.
Create partitions to be used for disk resources on the shared disk. Use a server in the cluster that uses the shared disk to create the partition. Run the fdisk command to set 83 (Linux) for the partition ID.
2. Create a file system.
Configure a file system for a partition for the disk resource on a shared disk. Run the mkfs command on a server in the cluster that uses the shared disks as you usually do in Linux.
Note
It is not necessary to construct the file system for a partition for the disk heartbeat resource.
Note
The EXPRESSCLUSTER controls the file systems on shared disks. Do not enter the file systems on the shared disks into /etc/fstab in the operating system. (If the entry to is required /etc/fstab, please use the noauto option is not used ignore option.)
The disk resource basically does not depend on file systems, problems may occur depending on the specification of the fsck of the file system.
It is recommended to use a file system that is capable of journaling to avoid system failure.
Following is the currently supported file systems:
ext3
ext4
xfs
zfs
3. Create a mount point.
Create a directory to mount the partition for disk resource.
Create this directory on all servers in the cluster that use disk resource.
2.8.2. Shared disk settings for Hybrid disk resource (Required for Replicator DR)
When you continue using the data on the shared disk (in the cases such as reinstalling the server), do not create partitions or a file system. If you create partitions or a file system, data on the shared disks will be deleted.
Allocate a cluster partition.
Allocate a partition to be used by the mirror driver. The mirror driver and mirror agent use this partition to monitor the status of hybrid disk.
Create a partition from one server in the cluster that uses shared disk. Use the fdisk command to set 83 (Linux) for the partition ID.
Note
A cluster partition should be 1024MiB or larger. (The size will be actually larger than 1024MB even if you specify exactly 1024MB because of the disk geometry difference. This will cause no problem.) You do not need to create a file system on this partition.
Initialize the cluster partition. (Required only when you continue using a shared disk that was used as EXPRESSCLUSTER mirror disk or hybrid disk.)
Initialization is required because the old data on the cluster partition remains even if allocation of the partition is performed.
If you continue to use a disk that was once used as an EXPRESSCLUSTER mirror disk or hybrid disk, make sure to initialize it.
Run the following command from one server in the cluster that uses shared disk:
dd if=/dev/zero of=<Name of the partition device to be used as cluster partition>
Note
Running the dd command initializes the specified data partition. Before you run the dd command make sure to check the partition device name.
Note
The following message is displayed when you run the dd command. This is not an error.
dd: writing to [Partition_device_name_used_as_a_cluster_partition]: No space left on device
Allocate a partition for hybrid disk resource.
Allocate a partition to be used by the hybrid disk resource on the shared disk. Create the partition from one server in the cluster that uses the shared disk.
Use the fdisk command to set 83 (Linux) for the partition ID.
Create a file system.
It is necessary to create a file system on the partition for hybrid disk resource.
Run the mkfs command on a server in the cluster that uses the shared disks.
The hybrid disk resource basically does not depend on file systems, problems may occur depending on the specification of the fsck of the file system.
It is recommended to use file systems which have journal function for fault tolerance improvement of the system.
File systems of which the operation is verified so far are as follows:
ext3
ext4
xfs
It is also possible to directly access the partition without creating a file system.
Note
The file systems on the hybrid disk resource are controlled by EXPRESSCLUSTER. Do not entry hybrid disk resource or partitions for the hybrid disk resource in /etc/fstab of OS. (Do not enter them into /etc/fstab, even if the ignore option is specified.)
Note
When problems occur because of forgetting creating file system, execute the following steps:
Stop cluster when the cluster is running.
For the Cluster WebUI, select Service -> Stop Cluster.
For the commands, use clpcl -t -a command.
Stop mirror agent when mirror agent is running.
For the Cluster WebUI, select Service -> Stop Mirror Agent.
For the commands, run service clusterpro_md stop on each
server.
Lift access control to the hybrid disk partition.
use the clproset command.
(Example: clproset -w -d <partition-device>)
Create file systems
use the mkfs or other commands.
(Example: mkfs -t ext3 <partition-device>)
Reboot the system.
Allocate a partition for disk heartbeat resource.
Allocate a partition on the shared disk to be used as a disk heartbeat resource exclusively by EXPRESSCLUSTER. Create the partition from one of the servers in the cluster that uses the shared disk. Use the fdisk command to set 83 (Linux) for the partition ID.
Note
Typically, only one partition is used for heartbeat resources. However, in addition to the LUN used for heartbeat, you should create another partition used for the disk heartbeat resources in each disk as a spare dummy partition. This is because heartbeat needs to be done in other LUN when the file system gets corrupted and the device name is changed by disk error or other errors. Use the same partition numbers for partitions for disk heartbeat in all the LUNs.
Note
A disk heartbeat partition should be 10 MB (10*1024*1024 bytes) or larger. It is not necessary to configure a file system for disk heartbeat partitions.
Create a mount point.
Create a directory to mount the partition for hybrid disk resource.
Create this directory on servers that use hybrid disk resource and connecting to the shared disk.
If a file system is not used for the partition for hybrid disk resources, a mount point does not need to be created.
2.8.3. Partition settings for Hybrid disk resource (Required for the Replicator DR)
Follow the steps below to configure the partitions when a non-shared disk (such as internal disk of the server or a non-shared external disk) is used as a hybrid disk resource.
When you continue using an existing partition (in the cases such as clustering a single server) or reinstalling server, do not allocate a partition for a hybrid disk resource or create a file system. The data on the partition gets deleted if you allocate a partition for hybrid disk resources or create a file system.
Allocate a cluster partition for hybrid disk resource.
Allocate a partition to be used by the mirror driver. The mirror driver and mirror agent use this partition to monitor the status of hybrid disk resource. Create a partition in every server in the cluster that uses hybrid disk resource. Use the fdisk command to set 83 (Linux) for the partition ID.
Note
A cluster partition for hybrid disk resource should be 1024MiB or larger. (The size will be actually larger than 1024MB even if you specify exactly 1024MB because of the disk geometry difference. This will cause no problem.) You do not need to create a file system on this partition.
Initialize the cluster partition. (Required only when you continue using a disk that is used as disk that was used as EXPRESSCLUSTER mirror disk or hybrid disk.)
Initialization is required because the old data on partitions survive even if allocation of partitions is performed.
If you continue to use a disk that was once used as an EXPRESSCLUSTER mirror disk or hybrid disk, make sure to initialize it.
Running the dd command initializes the specified partition. Before you run the dd command make sure to check the partition device name.
Note
The following message is displayed when you run the dd command. This is not an error.
dd: writing to <Partition_device_name_used_as_a_cluster_partition>: No space left on device
Allocate a partition for hybrid disk resource.
Create a partition to be used for hybrid disk resource. Create the partition in every server in the cluster that use hybrid resource. Run the fdisk command to set 83 (Linux) for the partition ID.
Create a file system.
It is necessary to create a file system on the partition for hybrid disk resource.
The hybrid disk resource basically does not depend on file systems, problems may occur depending on the specification of the fsck of the file system.
It is recommended to use file systems which have journal function for fault tolerance improvement of the system.
Following is the currently supported file systems:
ext3
ext4
xfs
It is also possible to directly access the partition without creating a file system.
Note
The EXPRESSCLUSTER controls the file systems on hybrid disk resource. Do not enter the hybrid disk resource or partition for hybrid disk resource into /etc/fstab in the operating system. (Do not enter them into /etc/fstab, even if the ignore option is specified.)
Note
When problems occur because of forgetting creating file system, execute the following steps:
Stop cluster when the cluster is running.
For the Cluster WebUI, select Service -> Stop Cluster.
For the commands, use clpcl -t -a command.
Stop mirror agent when mirror agent is running.
For the Cluster WebUI, select Service -> Stop Mirror Agent.
For the commands, run service clusterpro_md stop on each server.
Lift access control to the hybrid disk partition.
use the clproset command.
(Example: clproset -w -d <partition_device>)
Create file systems
use the mkfs or other commands.
(Example: mkfs -t ext3 <partition_device>)
Reboot the system.
Create a mount point.
Create a directory to mount the partition for hybrid disk resource.
If a file system is not used for the partition for hybrid disk resources, a mount point does not need to be created.
2.8.4. Partition settings for Mirror disk resource (when using Replicator)
When you continue using an existing partition (in the cases such as clustering a single server) or reinstalling server, do not allocate a partition for mirror resources. If you create the partition for mirror resources, data on the existing partition will be deleted.
Allocate a cluster partition.
Allocate a partition to be used by the mirror driver. The mirror driver and mirror agent use this partition to monitor the status of mirror disk resource. Create a partition in every server in the cluster that uses mirror disk resource. Use the fdisk command to set 83 (Linux) for the partition ID.
Note
A cluster partition should be 1024MiB or larger. (The size will be actually larger than 1024MB even if you specify exactly 1024MB because of the disk geometry difference. This will cause no problem.) You do not need to create a file system on this partition.
Initialize the cluster partition. (Required only when you continue using a disk that is used as disk that was used as EXPRESSCLUSTER mirror disk or hybrid disk.)
Initialization is required because the old data on the cluster partition remains even if allocation of partitions is performed.
If you continue to use a disk that was once used as an EXPRESSCLUSTER mirror disk or hybrid disk, make sure to initialize it.
Running the dd command initializes the specified partition. Before you run the dd command make sure to check the partition device name.
Note
The following message is displayed when you run the dd command. This is not an error.
dd: writing to <Partition_device_name_used_as_a_cluster_partition>: No space left on device
Allocate a partition for mirror disk resource
Create a partition to be used for mirror disk resource. Create a partition in every server in the cluster that use mirror resource. Run the fdisk command to set 83 (Linux) for the partition ID.
Create a file system.
Creation of a file system for the partition used for mirror resource depends on the Execute initial mkfs setting.
If Execute initial mkfs is selected when creating the cluster configuration data using the Cluster WebUI, EXPRESSCLUSTER will automatically create a file system.
Note that the existing data on the partition will be lost.
If Execute initial mkfs is not selected when creating the cluster configuration data using the Cluster WebUI, EXPRESSCLUSTER will not create a file system.
Because this option causes the existing file system on the partition to be used, it is necessary to create a file system in advance.
In addition, note the following about the partition for mirror resource:
The mirror resource basically does not depend on file systems, problems may occur depending on the specification of the fsck of the file system.
It is recommended to use a file system capable of journaling to avoid system failures.
The file systems currently supported are:
ext3
ext4
xfs
It is also possible to directly access the partition without creating a file system.
Note
Do not select Execute initial mkfs when you use the data has been saved on the partition.
If you select it, the data will be removed.
Note
The EXPRESSCLUSTER controls the file systems on the mirror resource. Do not enter the mirror resource or a partition for the mirror resource into the operating system /etc/fstab directory. (Do not enter them into /etc/fstab, even if the ignore option is specified.)
Create a mount point.
Create a directory to mount the partition for mirror resource.
Create this directory on all servers in the cluster that use mirror resource.
If a file system is not used for the partition for mirror resources, a mount point does not need to be created.
2.8.5. Adjustment of time for EXPRESSCLUSTER services to start up (Required)
Configure the time from turning on each server of the cluster system to starting up the EXPRESSCLUSTER services, longer than the following two:
The time from power-on of the shared disk to the point they become available.
Heartbeat timeout time (90 seconds by default)
Adjustment of the startup time is necessary due to the following reasons:
The cluster system is started by powering on the shared disk and servers, but starting the shared disk is not completed before EXPRESSCLUSTER is started up (i.e., the startup of EXPRESSCLUSTER is completed without the shared disk recognized). This leads to a failure in the activation of disk resources.
If a server reboots (i.e., the EXPRESSCLUSTER services start) within the heartbeat timeout time, the other server assumes that the heartbeat continues. This results in a failure in a failover by the server restart.
Therefore, after measuring the above two time periods, adjust the startup time in either of the following ways:
2.8.6. Verification of the network settings (Required)
On all servers in the cluster, verify the status of the following networks using the ifconfig or ping command. Verify if network devices (eth0, eth1, eth2, etc) are assigned to appropriate roles, such as public LAN and interconnect-dedicated LAN.
Public LAN (used for communication with all the other machines)
LAN dedicated to interconnect (used for communication between EXPRESSCLUSTER Servers)
Host name
Note
It is not necessary to specify the IP addresses of floating IP resources or virtual IP resources used in the cluster in the operating system.
2.8.7. Verification of the firewall settings (Required)
It is recommended to regularly synchronize the clocks of all the servers in the cluster. Make the settings that synchronize server clocks through protocol such as ntp on a daily basis.
Note
If the clock in each server is not synchronized, it may take time to analyze the problem when an error occurs.
This chapter provides information on applications to be duplicated, cluster topology, and explanation on cluster configuration data that are required to configure a cluster system.
EXPRESSCLUSTER supports multiple cluster topologies. There are uni-directional standby cluster system that considers one server as an active server and other as standby server, and multi-directional standby cluster system in which both servers act as active and standby servers for different operations.
Uni-directional standby cluster system
In this operation, only one application runs on an entire cluster system. There is no performance deterioration even when a failover occurs. However, resources in a standby server will be wasted.

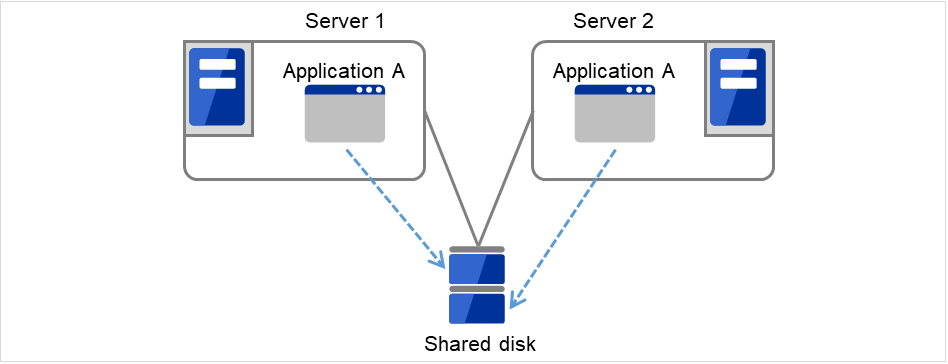

Multi-directional standby cluster system with the same application
In this operation, the same applications run simultaneously on a cluster system. Applications used in this system must support multi-directional standby operations.
Fig. 3.3 Multi-directional standby cluster system with the same application
Multi-directional standby cluster system with different applications
In this operation, different applications run on different servers and standby each other. Resources will not be wasted during normal operation; however, two applications run on one server after failing over and system performance deteriorates.
Fig. 3.4 Multi-directional standby cluster system with different applications
3.2.1. Failover in uni-directional standby cluster
On a uni-directional standby cluster system, the number of groups for an operation service is limited to one as described in the diagrams below:
1. Server 1 runs Application A.
Application A can be run on only one server in the same cluster.
Fig. 3.9 Uni-directional standby cluster with mirror disks (1): in normal operation

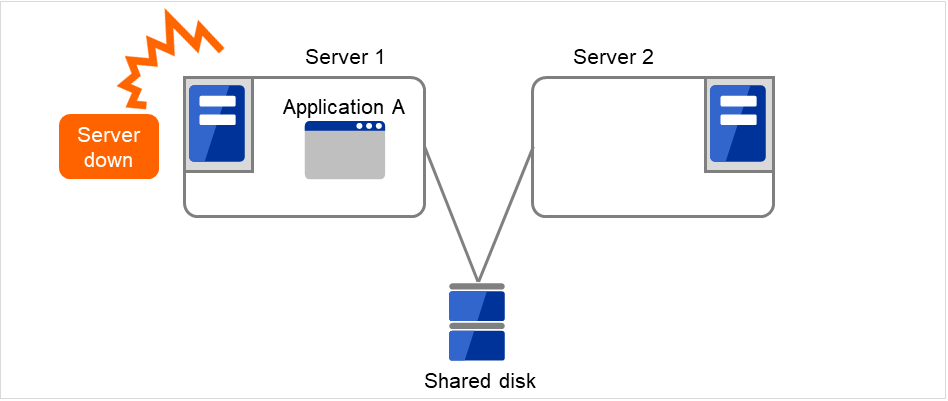

Server 1 crashes due to some error.
Fig. 3.10 Uni-directional standby cluster with mirror disks (2): when the server crashes
The application is failed over from Server 1 to Server 2.
Fig. 3.11 Uni-directional standby cluster with mirror disks (3): during a failover
To resume the application, data is recovered from Server 2's mirror disk.
Fig. 3.12 Uni-directional standby cluster with mirror disks (4): during data recovery
After Server 1 is restored, a group transfer can be made for Application A to be returned from Server 2 to Server 1.
Fig. 3.13 Uni-directional standby cluster with mirror disks (5): After the server is restored

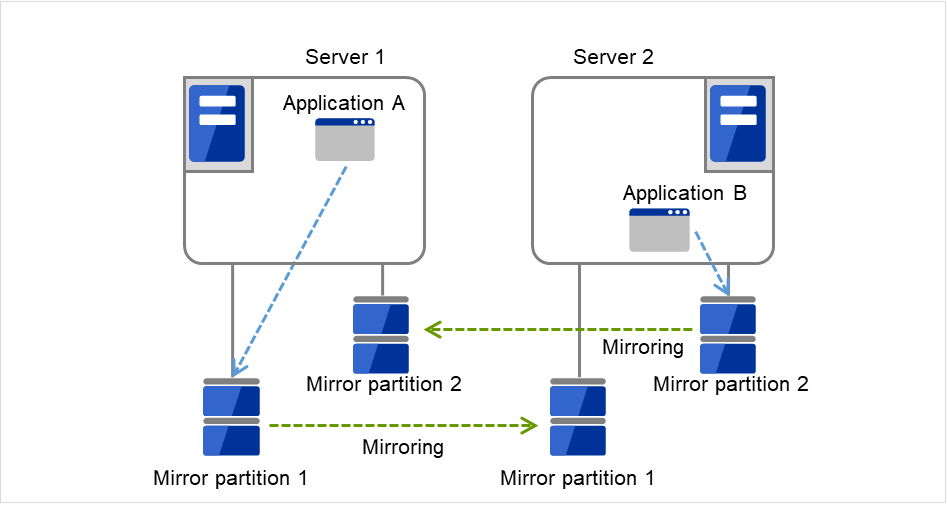

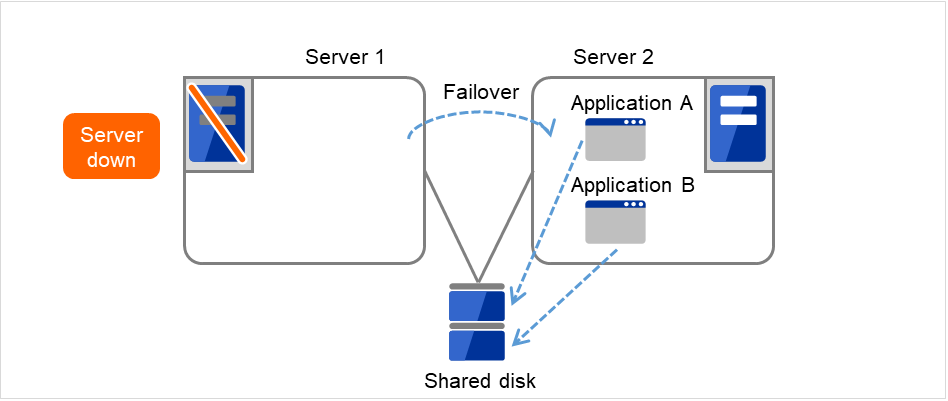

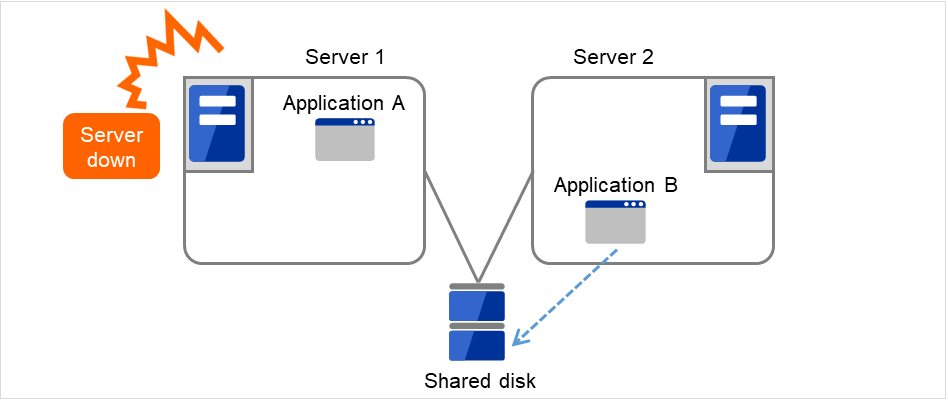

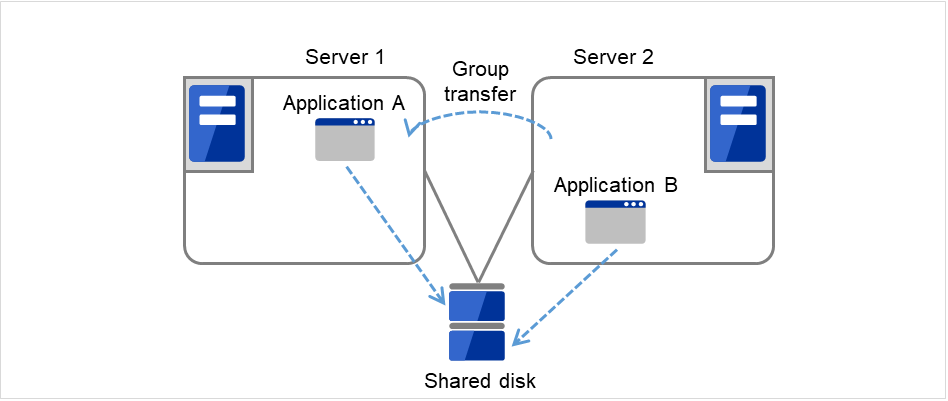

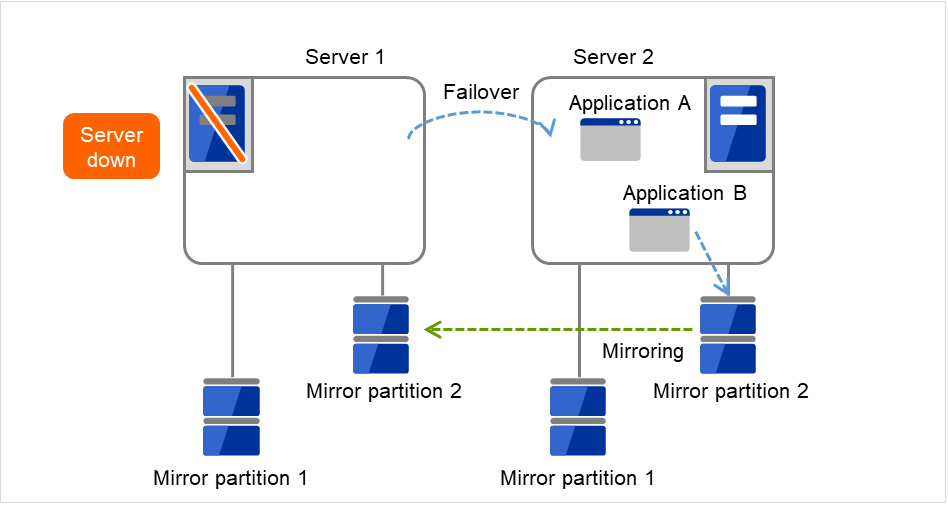

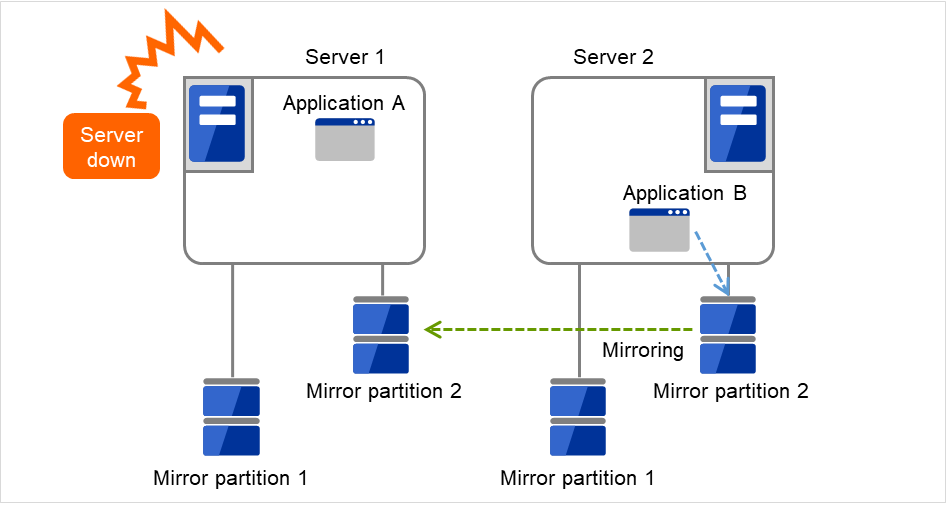

3.2.2. Failover in multi-directional standby cluster
On a multi-directional standby cluster system, an application can simultaneously run on multiple servers. However, an active server gets heavily loaded when a failover occurs as described in the diagram below:
When you determine applications to be duplicated, study candidate applications considering the points described below to see whether they should be clustered in your EXPRESSCLUSTER cluster system.
What you need to consider differs depending on which standby cluster system is selected for an application. Following is the notes for each cluster system. The numbers correspond to the numbers of notes (1 through 5) described above:
Note for uni-directional standby [Active-Standby]: 1, 2, 3, and 5
Note for multi-directional standby [Active-Active]: 1, 2, 3, 4, and 5
Note for co-existing behaviors: 5
(Applications co-exist and run. The cluster system does not fail over the applications.)
If an application was updating a file when an error has occurred, the file update may not be completed when the standby server accesses to that file after the failover.
The same problem can happen on a non-clustered server (single server) if it goes down and then is rebooted. In principle, applications should be ready to handle this kind of errors. A cluster system should allow recovery from this kind of errors without human interventions (from a script).
EXPRESSCLUSTER executes fsck if the file system on a shared disk or mirror disk requires fsck.
When EXPRESSCLUSTER stops or transfers (performs online failback of) a group for application, it unmounts the file system used by the application group. Therefore, you have to issue an exit command for applications so that they stop accessing files on a shared disk or mirror disk.
Typically, you give an exit command to applications in their stop scripts; however, you have to pay attention if an exit command completes asynchronously with termination of the application.
EXPRESSCLUSTER can pass the following types of data between servers:
Data on shared disk or mirror disks
Application data should be divided into the data to be shared among servers and the data specific to the server, and these two types of data should be saved separately.
Data type
Example
Where to store
Data to be shared among servers
User data, etc.
On shared disk or mirror disks
Data specific to a server
Programs, configuration data
On server's local disks
3.3.2.4. Note 4: Multiple application service groups
For multi-directional standby operation, you have to assume (in case of degeneration due to a failure) that multiple application groups are run by the same application on a server.
Applications should have capabilities to take over the passed resources by one of the following methods described in the diagram below. A single server is responsible for running multiple application groups. The same is true for mirror disks:
Fig. 3.23 Application running normally on each server in a multi-directional standby cluster
Starting up multiple instances
This method invokes a new process. More than one application should co-exist and run.
3.3.2.5. Note 5: Mutual interference and compatibility with applications
Sometimes mutual interference between applications and EXPRESSCLUSTER functions or the operating system functions required to use EXPRESSCLUSTER functions prevents applications or EXPRESSCLUSTER from working properly.
Access control of switching partitions and mirror partitions
Inactive disk resources are not writable.
Inactive mirror disk resources or hybrid disk resources are inaccessible.
Applications cannot access an inactive disk, mirror disk resource or hybrid disk resources (i.e. disk to which applications have no access right).
Generally, you can assume when an application that is started up by cluster script is started, the disk resource, mirror disk resource or hybrid disk resource to which it should access is already accessible.
Multi-home environment and transfer of IP addresses
In a cluster system, a server usually has multiple IP addresses, and an IP address (such as floating IP address) moves between servers.
Access to shared disks or mirror disks from applications
The stopping of application groups is not notified to co-existing applications. Therefore, if such an application is accessing a disk resource, mirror disk resource, or hybrid disk resource used by an application group at the time when the application group stops, unmount will fail.
Some applications like those responsible for system monitoring service periodically access all disk partitions. To use such applications in your cluster environment, they need a function that allows you to specify monitoring partitions.
3.3.3. Solution to the problems relevant to the notes
Problems
Solution
Note to refer
When an error occurs while updating a data file, the application does not work properly on the standby server.
Modify the program
Note 1: Data recovery after an error
The application keeps accessing a disk or file system for a certain period of time even after it is stopped.
Execute the sleep command during stop script execution.
Note 2: Application termination
The same application cannot be started more than once on one server.
In multi-directional operation, reboot the application at failover and pass the shared data.
A group is a set of resources required to perform an independent operation service in a cluster system. Failover takes place by the unit of group. A group has its group name, group resources, and attributes.
Resources in each group are handled by the unit of the group. If a failover occurs in group1 that has Disk resource1 and Floating IP resource1, a failover of Disk resource1 and a failover of Floating IP resource1 are concurrent (failover of disk resource 1 never takes place without that of Floating IP resource1). Likewise, Disk resources1 is never contained in other groups, such as group2.
For a failover to occur in a cluster system, a group that works as a unit of failover must be created. A group consists of group resources. In order to create an optimal cluster, you must understand what group resources to be added to the group you create, and have a clear vision of your operation.
See also
For details on each resource, refer to the "Reference Guide".
Following is the currently supported group resources:
Servers in a cluster system monitor if other servers in the cluster are active. For this, heartbeat resources are used. Following is the heartbeat device types:
LAN heartbeat/kernel mode LAN heartbeat (primary interconnect)
Fig. 3.28 LAN heartbeat/kernel mode LAN heartbeat (primary interconnect)

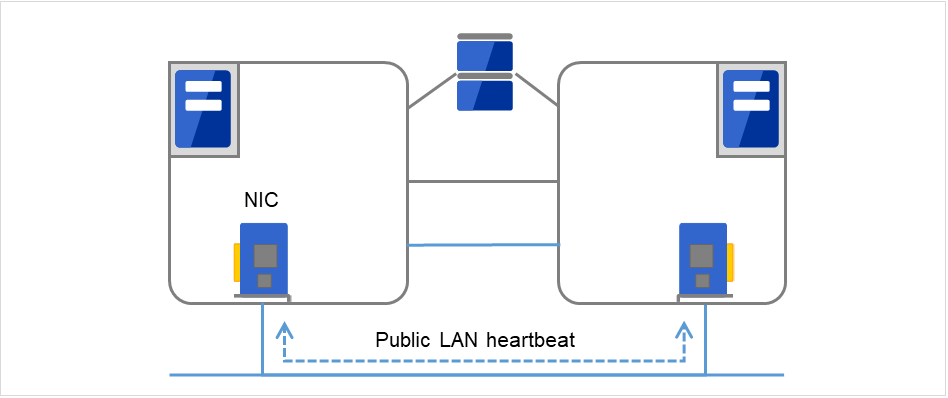

LAN heartbeat/kernel mode LAN heartbeat (secondary interconnect)
Fig. 3.29 LAN heartbeat/kernel mode LAN heartbeat (secondary interconnect)
Used for communication within the cluster as well.
Kernel mode LAN heartbeat resource (1)(2)
lankhb
A kernel mode module uses a LAN to monitor if servers are active.
Used for communication within the cluster as well.
Disk heartbeat resource (3)
diskhb
Uses a dedicated partition in the shared disk to monitor if servers are active.

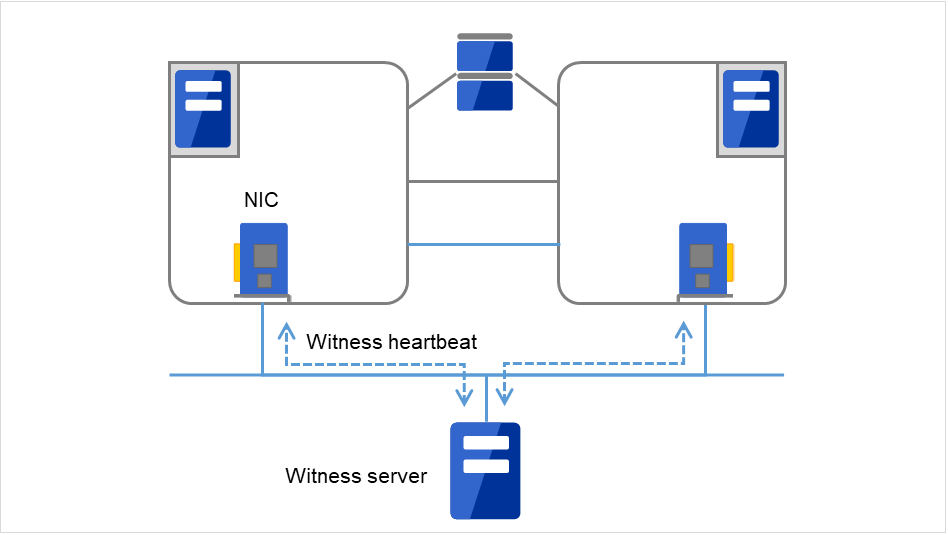

Witness heartbeat resource (4)
witnesshb
Uses the Witness server to monitor whether servers are active.
For an interconnect with the highest priority, configure LAN heartbeat resources or kernel mode LAN heartbeat resources which can be exchanged between all servers.
Configuring at least two kernel mode LAN heartbeat resources is recommended unless it is difficult to add a network to an environment such as the cloud or a remote cluster.
It is recommended to register both an interconnect-dedicated LAN and a public LAN as LAN heartbeat resources.
Network partitioning refers to the status where all communication channels have problems and the network between servers is partitioned.
In a cluster system that is not equipped with solutions for network partitioning, a failure on a communication channel cannot be distinguished from an error on a server. This can cause data corruption brought by access from multiple servers to the same resource. EXPRESSCLUSTER, on the other hand, distinguishes a failure on a server from network partitioning when the heartbeat from a server is lost. If the lack of heartbeat is determined to be caused by the server failure, the system performs a failover by activating each resource and rebooting applications on a server running normally. When the lack of heartbeat is determined to be caused by network partitioning, emergency shutdown is executed because protecting data has higher priority over continuity of the operation. Network partitions can be resolved by the following methods:
Ping method
A device that is always active to receive and respond to the ping command (hereafter described as ping device) is required.
More than one ping device can be specified.
When the heartbeat from the other server is lost, but the ping device is responding to the ping command, it is determined that the server without heartbeat has failed and a failover takes place. If there is no response to the ping command, the local server is isolated from the network due to network partitioning, and emergency shutdown takes place. This will allow a server that can communicate with clients to continue operation even if network partitioning occurs.
When the status where no response returns from the ping command continues before the heartbeat is lost, which is caused by a failure in the ping device, the network partitions cannot be resolved. If the heartbeat is lost in this status, a failover takes place in all servers. Because of this, using this method in a cluster with a shared disk can cause data corruption due to access to a resource from multiple servers.
HTTP method
A Web server that is always active is required.
When the heartbeat from the other server is lost, but there is a response to an HTTP HEAD request, it is determined that the server without heartbeat has failed and a failover takes place. If there is no response to an HTTP HEAD request, it is determined that the local server is isolated from the network due to network partitioning, and an emergency shutdown takes place. This will allow a server that can communicate with clients to continue operation even if network partitioning occurs.
When there remains no response to an HTTP HEAD request before the heartbeat is lost, which is caused by a failure in Web server, the network partitions cannot be resolved. If the heartbeat is lost in this status, emergency shutdowns occur in all the servers.
Not solving the network partition
If a failure occurs on all the network channels between servers in a cluster, all the servers fail over.
The following are the recommended methods to resolve the network partition:
Method to resolve a network partition
Number of nodes
Required hardware
Circumstance where failover cannot be performed
When all network channels are disconnected
Circumstance where both servers fail over
Time required to resolve network partition
Ping
No limit
Device to receive the ping command and return a response
None
Server that responses to the ping command survives
All networks are disconnected after the ping command timeouts the specified times consecutively.
0
HTTP
No limit
Web server
Web server failure
A server that can communicate with the Web server survives
Refer to the "Reference Guide" as you need when operating EXPRESSCLUSTER by following the procedures introduced in this guide. See the "Getting Started Guide" for installation requirements.
The EXPRESSCLUSTER Server, which is the core component of EXPRESSCLUSTER, consists of the following system services. It is set up by installing the EXPRESSCLUSTER Server RPM/deb package.
System Service Name
Description
clusterpro
EXPRESSCLUSTER daemon:
A service of EXPRESSCLUSTER itself.
clusterpro_evt
EXPRESSCLUSTER event:
A service to control syslog and logs being output from EXPRESSCLUSTER.
clusterpro_nm
EXPRESSCLUSTER Node Manager:
A service to control heartbeat resources and network partition resolution resources of EXPRESSCLUSTER.
clusterpro_trn
EXPRESSCLUSTER data transfer:
A service to control license synchronization and configuration data transfer in a cluster.
clusterpro_ib
EXPRESSCLUSTER Information Base:
A service to manage EXPRESSCLUSTER information.
clusterpro_api
EXPRESSCLUSTER API:
A service to control the EXPRESSCLUSTER RESTful API.
clusterpro_md
EXPRESSCLUSTER mirror agent
A service to control mirror disk resource, hybrid disk resource and mirror driver of EXPRESSCLUSTER.
clusterpro_alertsync
EXPRESSCLUSTER alert synchronization:
A service to synchronize alerts among servers in the cluster.
There are x86_64, IBM POWER LE and ARM64 for architecture. Select one of them according to the environment where the server RPM is installed. Verify the architecture by running the arch command.
The installation starts.
Note
If you omit the --prefix option, EXPRESSCLUSTER will be installed in the following directory:
Installation Directory: /opt/nec/clusterpro
This directory must remain unchanged and not be a symbolic link.
Note
If you use the --prefix option with an installation path specified, EXPRESSCLUSTER will be installed in the following directory:
Substitute a numeric value for X according to the environment.
Start the snmpd daemon.
Note
The daemon can usually be started by the following command:
For an init.d environment:
/etc/init.d/snmpdstart
For a systemd environment:
systemctlstartsnmpd
See also
You must cancel the settings of the SNMP function when uninstalling the EXPRESSCLUSTER Server. For how to cancel the settings of the SNMP linkage function, see "Canceling the SNMP linkage function settings."
Note
The settings required for SNMP communication are to be made on the SNMP agent.
The names of the products to which the CPU license applies are listed below.
Licensed Product Name
EXPRESSCLUSTER X 5.3 for Linux
EXPRESSCLUSTER X SingleServerSafe 5.3 for Linux
EXPRESSCLUSTER X SingleServerSafe for Linux Upgrade
Among servers that constitute the cluster, use the master server to register the CPU license. There are two ways of license registration; using the information on the license sheet and specifying the license file. These two ways are described for both the product and trial versions.
After registration of the CPU license on the master server, Cluster WebUI on the master server must be used in order to edit and reflect the cluster configuration data as described in "6.Creating the cluster configuration data".
5.1.2. Registering the license by specifying the license file (for both product version and trial version)
The following describes how to register the license by specifying the license file when you have a license for the product version or trial version.
Check the following before executing these steps.
Allow logon as root user to the server that will be set as a master server among servers that configures a cluster system.
Store the license file in the server that will be set as a master server among servers that constitute the cluster system.
Log on to the master server as root user and run the following command.
# clplcnsc -i <filepath>
Specify the path to the license file for filepath specified by the -i option.
When the command is successfully executed, the message "License registration succeeded." is displayed in the console. When a message other than this is displayed, see "EXPRESSCLUSTER command reference" in the "Reference Guide".
Run the following command to verify the licenses registered.
When an optional product is not used, run the OS shutdown command to reboot all servers. By doing this, the license registration becomes effective and you can start using the cluster.
You can ignore that clusterpro_md fails at the time the operating system is started up. It is because the cluster is yet to be created.
5.1.3. Registering the license interactively from the command line (Product version)
The following describes how you register a license for the product version interactively from the command line.
Before you register the license, make sure to:
Have the official license sheet that comes with the product. The license sheet is sent to you when you purchase the product. You will enter the values on the license sheet.
Allow logon as root user to the server that will be set as a mater server among servers that constitute the cluster system.
The instruction here is given using the values in the following license sheet as an example. When actually entering the values, modify them according to the information on your license sheet.
Product name: EXPRESSCLUSTER X 5.3 for Linux
License information:
Type Product Version
License Key A1234567-B1234567-C1234567-D1234567
Serial Number AAAAAAAA000000
Number Of Licensed CPUs 2
Log on to the master server as root user and run the following command.
# clplcnsc -i
The text that prompts you to enter the product division is displayed. Enter 1 to select "product version" for license version:
Selection of License Version.
1 Product version
2 Trial version
e Exit
Select License Version. [1, 2, or e (default:1)]...1
The text that prompts you to enter the serial number is displayed. Enter the serial number written in your license sheet. Note this is case sensitive.
Enter serial number [Ex. XXXXXXXX000000]... AAAAAAAA000000
The text that prompts you to enter the license key is displayed. Enter the license key written in your license sheet. Note this is case sensitive.
Enter license key
[XXXXXXXX- XXXXXXXX- XXXXXXXX- XXXXXXXX]...
A1234567-B1234567-C1234567-D1234567
When the command is successfully executed, the message "License registration succeeded." is displayed in the console. When a message other than this is displayed, see "EXPRESSCLUSTER command reference" in the "Reference Guide".
Run the following command to verify the licenses registered.
When an optional product is not used, run the OS shutdown command to reboot all servers. By doing this, the license registration becomes effective and you can start using the cluster. After rebooting all servers, proceed to "6.Creating the cluster configuration data" and follow the steps.
Note
You can ignore that clusterpro_md fails at the time the operating system is started up. It is because the cluster yet to be created.
When the virtual server exists in the cluster system to be constructed, VM node license can be used not CPU license for the virtual server.
The names of the products to which the VM node license applies are listed below.
License Product Name
EXPRESSCLUSTER X 5.3 for Linux VM
EXPRESSCLUSTER X SingleServerSafe 5.3 for Linux VM
EXPRESSCLUSTER X SingleServerSafe for Linux VM Upgrade
Registering the VM node license is done on all the virtual servers of the servers constructing the cluster. Of servers constituting the cluster, register the VM node license on all the virtual servers. There are two ways of license registration; using the information on the license sheet and specifying the license file.
Product version
Specify the license file as the parameter of the license management command. Refer to "Registering the VM node license by specifying the license file (for both product and trial versions)."
Register the license by running the license management command and interactively entering the license information that comes with the licensed product. Refer to "Registering the VM node license interactively from the command line (Product version)."
Trial version
Specify the license file as a parameter of the license management command, and register the license with the command. Refer to "Registering the VM node license by specifying the license file (for both product and trial versions)."
5.2.1. Registering the VM node license by specifying the license file (for both product and trial versions).
The following describes how you register the license by specifying the license file when you have a license for the product version.
Before you register the license, make sure to:
Be allowed to logon as root user to the virtual servers of servers constituting the cluster system.
Among virtual servers of which you intend to construct a cluster, log on to the server as root user and run the following command.
# clplcnsc -i filepath
Specify the path to the license file for filepath specified by the -i option.
When the command is successfully executed, the message "License registration succeeded." is displayed on the console. When a message other than this is displayed, see "EXPRESSCLUSTER command reference" in the "Reference Guide".
Run the following command to verify the licenses registered.
# clplcnsc -l -a
If there are other virtual servers in a cluster system, register the VM node license by following the same procedures.
When not using option products, run the OS shutdown command to reboot all the servers. By doing this, the license registration becomes effective and you can start using the cluster.
You can ignore that clusterpro_md fails at the time the operating system is starting up. It is because the cluster is yet to be created.
5.2.2. Registering the VM node license interactively from the command line (Product version)
The following describes how you register the license for the product version interactively from the command line.
Before you register the license, make sure to:
Have the official license sheet that comes with the product. The license sheet is sent to you when you purchase the product. You will enter the values on the license sheet.
Be allowed to logon as root user to the virtual servers of servers constituting the cluster system.
The instruction here is given using the values in the following license sheet as an example. When actually entering the values, modify them according to the information on your license sheet.
Product name: EXPRESSCLUSTER X 5.3 for Linux VM
License information:
Type Product Version
License Key A1234567- B1234567- C1234567- D1234567
Serial Number AAAAAAAA000000
Number Of Licensed Server 1
Among virtual servers of which you intend to construct a cluster, log on to the server as root user and run the following command.
# clplcnsc -i
The text that prompts you to enter the license version is displayed. Enter 1 because it is a product version:
Selection of License Version.
1 Product version
2 Trial version
e Exit
Select License Version. [1, 2, or e (default:1)]...1
The text that prompts you to enter the serial number is displayed. Enter the serial number written in your license sheet. Note this is case sensitive.
Enter serial number [Ex. XXXXXXXX000000]... AAAAAAAA000000
The text that prompts you to enter the license key is displayed. Enter the license key written in your license sheet. Note this is case sensitive.
Enter serial number [Ex. XXXXXXXX000000]... AAAAAAAA000000
A1234567-B1234567-C1234567-D1234567
When the command is successfully executed, the message "License registration succeeded." is displayed on the console. When a message other than this is displayed, see "EXPRESSCLUSTER command reference" in the "Reference Guide".
Run the following command to verify the licenses registered.
# clplcnsc -l -a
If there is any other virtual server in the cluster, register the VM license by repeating the same steps.
It is required to register the node license for the X 5.3 Replicator, X 5.3 Replicator DR, X 5.3 Agent products, and X 5.3 Alert Service (hereafter referred to as "optional product") to operate the cluster system where those products are constituted.
The names of the optional products to which the node license applies are listed below.
License Product Name
EXPRESSCLUSTER X Replicator 5.3 for Linux
EXPRESSCLUSTER X Database Agent 5.3 for Linux
EXPRESSCLUSTER X Internet Server Agent 5.3 for Linux
EXPRESSCLUSTER X File Server Agent 5.3 for Linux
EXPRESSCLUSTER X Application Server Agent 5.3 for Linux
EXPRESSCLUSTER X Java Resource Agent 5.3 for Linux
EXPRESSCLUSTER X System Resource Agent 5.3 for Linux
EXPRESSCLUSTER X Alert Service 5.3 for Linux
EXPRESSCLUSTER X Replicator DR 5.3 for Linux
EXPRESSCLUSTER X Replicator DR 5.3 for Linux Upgrade license
Among servers constituting the cluster, register the node license on the server that uses an optional product. There are two ways of license registration; using the information on the license sheet and specifying the license file. These two ways are described for both the product and trial versions.
5.3.1. Registering the node license by specifying the license file (for both product version and trial version)
The following describes how you register the license by specifying the license file when you have a license for the product version or trial version.
Before you register the license, make sure to:
Allow logon as root user to the server for which you plan to use the option product among servers constituting the cluster system.
Among servers of which you intend to construct a cluster and use the optional product, log on to the server you plan to use as a master server as root user and run the following command.
# clplcnsc -i filepath
Specify the path to the license file for filepathspecified by the -i option.
Note
If the licenses for optional products have not been installed, the resources and monitor resources corresponding to those licenses are not shown in the list on the Cluster WebUI
If the licenses are registered but the corresponding resources do not appear in the list, or if the licenses are registered after the Cluster WebUI is started, click the Get License Info button.
When the command is successfully executed, the message "License registration succeeded." is displayed in the console. When a message other than this is displayed, see "EXPRESSCLUSTER command reference" in the "Reference Guide".
Run the following command to verify the licenses registered.
# clplcnsc -l -a
If there is other server in a cluster system that uses the optional product, register the node license by following the same procedures. Register the license for the Replicator / Replicator DR to both servers.
Run the OS shutdown command to reboot all the servers. By doing this, the license registration becomes effective and you can start using the cluster. After rebooting all servers, proceed to "6.Creating the cluster configuration data" and follow the steps.
Note
You can ignore that clusterpro_md fails at the time the operating system is started up. It is because the cluster is yet to be created.
Note
If the Replicator / Replicator DR license is registered after starting the cluster operation, once shutdown and reboot the cluster. After the reboot, the Replicator / Replicator DR is operable.
5.3.2. Registering the node license interactively from the command line (Product version)
The following describes how you register the license for the product version interactively from the command line.
Before you register the license, make sure to:
Have the official license sheet that comes with the product. The license sheet is sent to you when you purchase the product. The number of license sheets required is the number of servers for which you use the optional product. You will enter the values on the license sheet.
Allow logon as root user to the server for which you plan to use the option product among servers constituting the cluster system.
The instruction here is given using the values in the following license sheet (Replicator) as an example. When actually entering the values, modify them according to the information on your license sheet.
Product name: EXPRESSCLUSTER X Replicator 5.3 for Linux
License information:
Type Product Version
License Key A1234567-B1234567-C1234567-D1234567
Serial Number AAAAAAAA000000
Number of Nodes 1
Among servers that constitute the cluster, log on as root user to the server for which you are intending to use the option product as root, and then run the following command:
# clplcnsc -i
Note
If the licenses for optional products have not been installed, the resources and monitor resources corresponding to those licenses are not shown in the list on the Cluster WebUI.
If the licenses are registered but the corresponding resources do not appear in the list, or if the licenses are registered after the Cluster WebUI is started, click the Get License Info button.
The text that prompts you to enter the license version is displayed. Enter 1 because it is a product version:
Selection of License Version.
1 Product Version
2 Trial Version
e Exit
Select License Version. [1, 2, or e (default:1)]...1
The text that prompts you to enter the serial number is displayed. Enter the serial number written in your license sheet. Note this is case sensitive.
Enter serial number [Ex. XXXXXXXX000000]... AAAAAAAA000000
The text that prompts you to enter the license key is displayed. Enter the license key written in your license sheet. Note this is case sensitive.
Enter license key
[XXXXXXXX-XXXXXXXX-XXXXXXXX-XXXXXXXX]...
A1234567-B1234567-C1234567-D1234567
When the command is successfully executed, the message "License registration succeeded." is displayed in the console. When a message other than this is displayed, see "EXPRESSCLUSTER command reference" in the "Reference Guide".
Run the following command to verify the licenses registered.
# clplcnsc -l -a
If there is any other server in the cluster that uses an optional product, register the node license by repeating the same steps.
Register the license for the Replicator / Replicator DR to both servers.
Run the OS shutdown command to reboot all the servers. By doing this, the license registration becomes effective and you can start using the cluster. After rebooting all servers, proceed to "6.Creating the cluster configuration data" and follow the steps.
Note
You can ignore that clusterpro_md fails at the time the operating system is started up. It is because the cluster is yet to be created.
Note
If the Replicator / Replicator DR license is registered after starting the cluster operation, once shutdown and reboot the cluster. After the reboot, the Replicator / Replicator DR is operable.
Use the fixed term license to operate the cluster system which you intend to construct for a limited period of time.
This license becomes effective on the date when the license is registered and then will be effective for a certain period of time.
In preparation for the expiration, the license for the same product can be registered multiple times. Extra licenses are saved and a new license will take effect when the current license expires.
The names of the products to which the fixed term license applies are listed below.
main product
Licensed Product Name
EXPRESSCLUSTER X 5.3 for Linux VM
optional product
Licensed Product Name
EXPRESSCLUSTER X Replicator 5.3 for Linux
EXPRESSCLUSTER X Database Agent 5.3 for Linux
EXPRESSCLUSTER X Internet Server Agent 5.3 for Linux
EXPRESSCLUSTER X File Server Agent 5.3 for Linux
EXPRESSCLUSTER X Application Server Agent 5.3 for Linux
EXPRESSCLUSTER X Java Resource Agent 5.3 for Linux
EXPRESSCLUSTER X System Resource Agent 5.3 for Linux
EXPRESSCLUSTER X Alert Service 5.3 for Linux
EXPRESSCLUSTER X Replicator DR 5.3 for Linux
Among the servers that you intend to use to build a cluster, use the master server to register the fixed term license regardless of the main product or optional product. Specify the license file to register the license.
Notes on using the fixed term license are as follows:
The fixed term license cannot be registered to several of the servers constituting the cluster to operate them.
After registration of the license on the master server, Cluster WebUI on the master server must be used in order to edit and reflect the cluster configuration data as described in "6.Creating the cluster configuration data".
The number of the fixed term license must be larger than the number of the servers constituting the cluster.
After starting the operation of the cluster, additional fixed term license must be registered in the master server.
Once enabled, the fixed term license cannot be reregistered despite its validity through the license/server removal or the server replacement.
5.4.2. Registering the fixed term license by specifying the license file
The following describes how you register a fixed term license.
Check the following before executing these steps.
Allow logon as root user to the server that will be set as a master server among servers that configures a cluster system.
The license files for all the products you intend to use are stored in the server that will be set as a master server among servers that constitute the cluster system.
Follow the following steps to register all the license files for the products to be used.
Log on to the master server as root user and run the following command.
# clplcnsc -i filepath
Specify the path to the license file for filepath specified by the -i option.
Note
If the licenses for optional products have not been installed, the resources and monitor resources corresponding to those licenses are not shown in the list on the Cluster WebUI.
If the licenses are registered but the corresponding resources do not appear in the list, or if the licenses are registered after the Cluster WebUI is started, click the Get License Info button.
When the command is successfully executed, the message "License registration succeeded." is displayed in the console. When a message other than this is displayed, see "EXPRESSCLUSTER command reference" in the "Reference Guide".
If you have two or more license files for the same product in preparation for the expiration, execute the command to register the extra license files in the same way as above.
If there are other products you intend to use, repeat the step 1.
Run the following command to verify the licenses registered.
# clplcnsc -l -a
Note
The license will be in an "inactive" state if the cluster is not yet created, but there is no problem because it will be activated once the cluster creation is completed.
Run the OS shutdown command to reboot all servers. By doing this, the license registration becomes effective and you can start using the cluster.
You can ignore that clusterpro_md fails at the time the operating system is started up. It is because the cluster is yet to be created.
Note
If the Replicator license is registered after starting the cluster operation, once shutdown and reboot the cluster. After the reboot, the Replicator is operable.
In EXPRESSCLUSTER, data that contains information on how a cluster system is configured is called "cluster configuration data." Generally, This data is created using the Cluster WebUI. This chapter provides the procedures to start up the Cluster WebUI and to create the cluster configuration data using the Cluster WebUI with a sample cluster configuration.
Creating the cluster configuration data is performed by using the config mode of Cluster WebUI, the function for creating and modifying cluster configuration data
Start the Cluster WebUI accessed from the management PC and create the cluster configuration data. The cluster configuration data will be applied in the cluster system by the Cluster WebUI.
Accessing to the Cluster WebUI is required to create cluster configuration data. This section describes the overview of the Cluster WebUI, and how to create cluster configuration data.
The Cluster WebUI is a function for setting up the cluster, monitoring its status, starting up or stopping servers and groups, and collecting cluster operation logs through a Web browser. The overview of the Cluster WebUI is shown in the following figures.
This figure shows two servers with EXPRESSCLUSTER installed. You can display the Cluster WebUI screen, by using a Web browser on the Management PC to access one of the servers.
For this access, specify the management group's floating IP (FIP) address or virtual IP (VIP) address.
For information of the latest system requirements of the Cluster WebUI (supported operating systems and browsers, required memory and disk size), see the Getting Started Guide.
6.3. Checking the values to be configured in the cluster environment with two nodes
Before you create the cluster configuration data using Cluster Generation Wizard, check values you are going to enter. Write down the values to see whether your cluster is efficiently configured and there is no missing information.

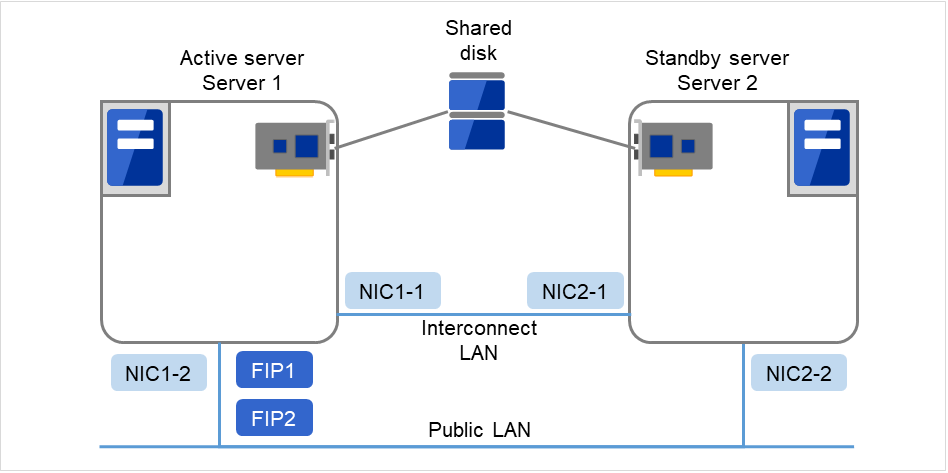

Fig. 6.5 Example of a 2-node cluster with a volume manager resource
FIP1: to be accessed by Cluster WebUI clients
FIP2: to be accessed by operation clients
Check the values to be configured before creating the cluster configuration data. The following table lists sample values of the cluster configuration data to achieve the cluster system shown above. These values and configuration are applied hereafter in the step-by-step instruction to create the cluster configuration data. When you actually set the values, you may need to modify them according to the cluster you are intending to create. For information on how you determine the values, refer to the "Reference Guide".
Sixth monitor resource (Automatically created after creating mirror disk resource)
Type
Mirror disk connect monitor
Mirror disk connect monitor
Monitor resource name
mdnw1
mdnw1
Monitor mirror disk resource
md1
md1
When an error is detected
No Operation
No Operation
Seventh monitor resource (Automatically created after creating mirror disk resource)
Type
Mirror disk monitor
Mirror disk monitor
Monitor resource name
mdw1
mdw1
Monitor mirror disk resource
md1
md1
When an error is detected
No Operation
No Operation
Eighth monitor resources
(Only when the volume manager is used. Automatically created after creating volume manager resource)
Type
Volume manager monitor
Monitor resource name
volmgrw1
Volume Manager
lvm
Target Name
vgl
Monitor Timing
Active
Monitor target
volmgr1
First PingNP resources
Resource name
xxxx
Monitor target 1
xxxx
Monitor target 2
xxxx
6.4. Creating the configuration data of a 2-node cluster
6.Creating the cluster configuration data involves creating a cluster, group resources, and monitor resources. The steps you need to take to create the data are described in this section.
Note
The following instruction can be repeated as many times as necessary. Most of the settings can be modified later by using the rename function or properties view function.
Click Languages field in Cluster window of Cluster generation wizard, select a language that is used on the machine that the Cluster WebUI works.
Note
Only one language is available within one cluster. If multiple languages are used within a cluster, specify English to avoid garbled characters.
In the Cluster Definition dialog box, type the cluster name (cluster) in the Name box.
Enter the Floating IP address (10.0.0.11) used to connect the Cluster WebUI in the Management IP Address box. Click Next.

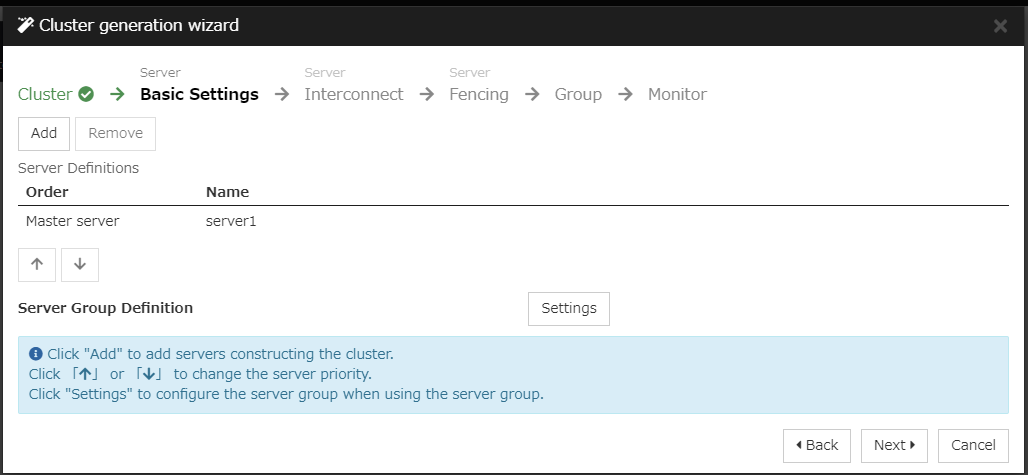

The Basic Settings window for the server is displayed. The server (server1) for which the IP address was specified as the URL when starting up the Cluster WebUI is registered in the list.
The Server Addition dialog box is displayed. Enter the server name, FQDN name, or IP address of the second server, and then click OK. The second server (server2) is added to the Server Definitions.

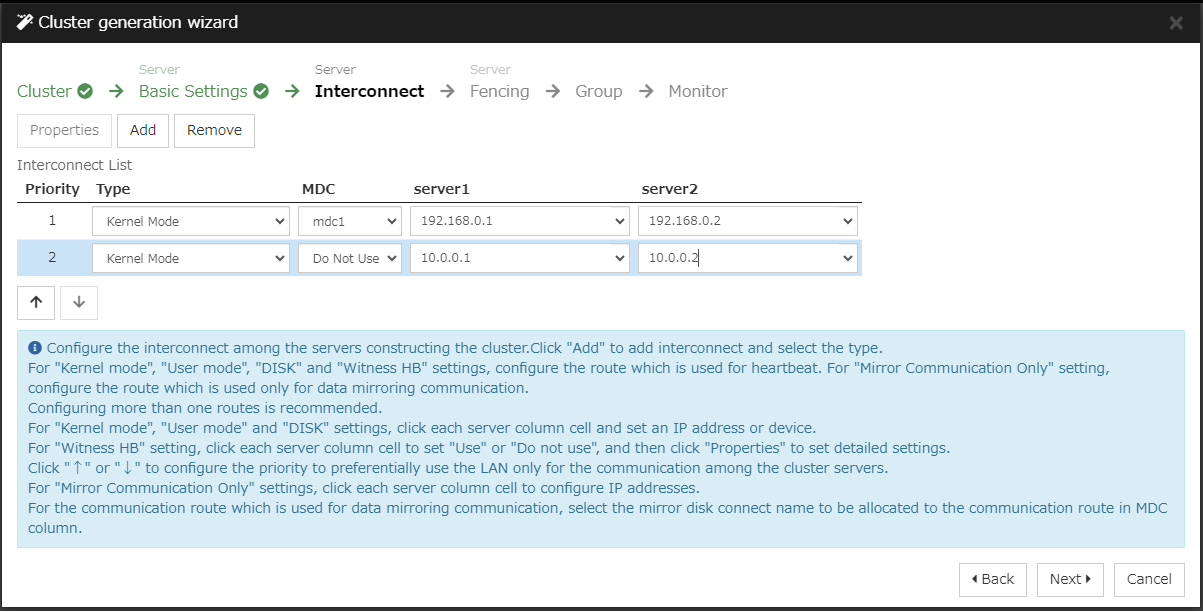

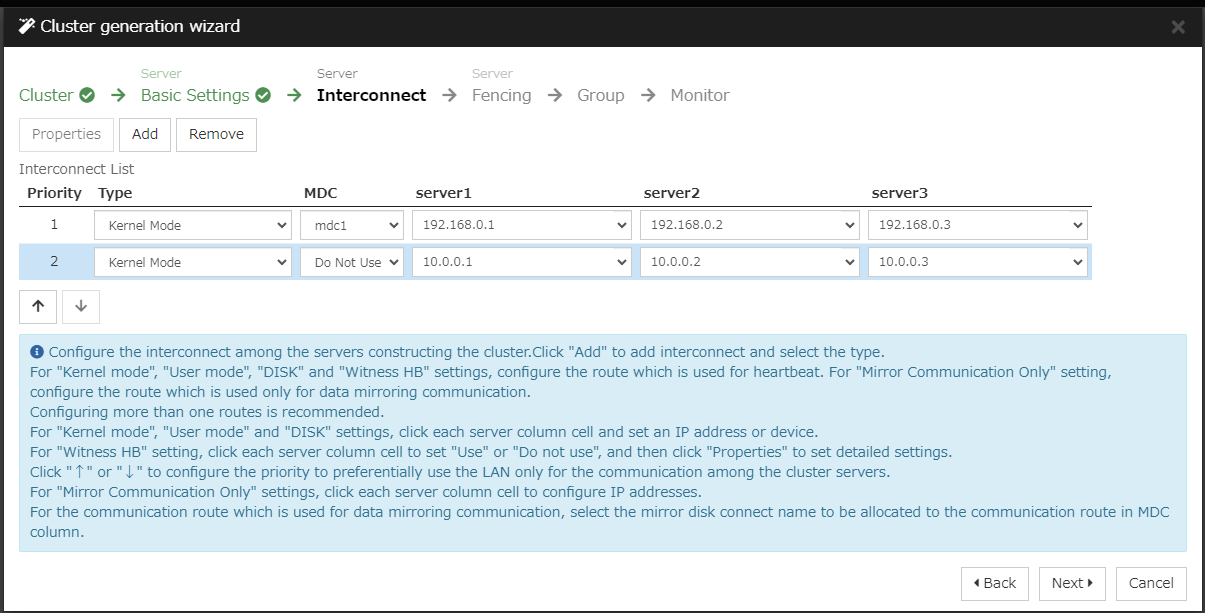

Set up the network configuration between the servers in the cluster.
Add or remove them by using Add or Remove, click a cell in each server column, and then select or enter the IP address. For a communication route to which some servers are not connected, leave the cells for the unconnected servers blank.
For a communication route used for heartbeat transmission (interconnect) , click a cell in the Type column, and then select Kernel Mode. Select Mirror Communication Only when using only for data mirroring communication of the mirror disk resource or hybrid disk resource, not using heartbeat.
At least one communication route must be specified for the interconnect. Specify as many communication routes for the interconnect as possible.
If multiple interconnects are set up, the communication route for which the Priority column contains the smallest number is used preferentially for internal communication between the servers in the cluster.To change the priority, change the order of communication routes by selecting arrows.
When using DISK heartbeat, click Type column cell and select DISK. Click Server name column cell and select or enter disk device. For the server not using DISK heartbeat, set blank to Server name column cell.
When using Witness heartbeat, click a cell in the Type column, and select Witness. Next, click Properties, and enter the address of Witness server for Target Host. Then enter the port number for Service Port. For servers that do not use Witness heartbeat, click the cells of those servers, and select Do Not Use.
For a communication route used for data mirroring communication for mirror disk resources (mirror disk connect), click a cell in the MDC column, and then select the mirror disk connect name (mdc1 to mdc16) assigned to the communication route. Select Not Used for communication routes not used for data mirroring communication.

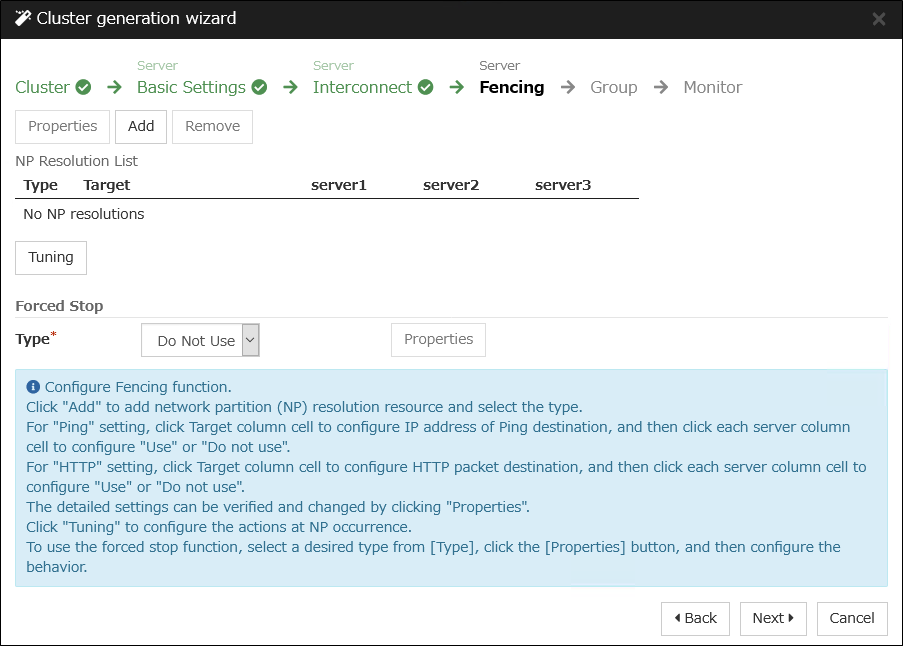

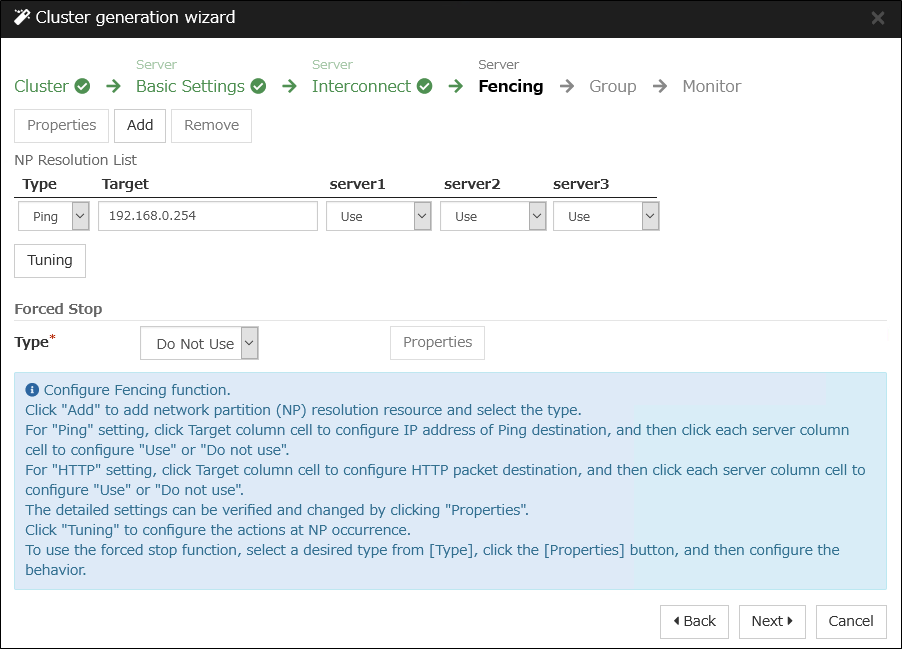

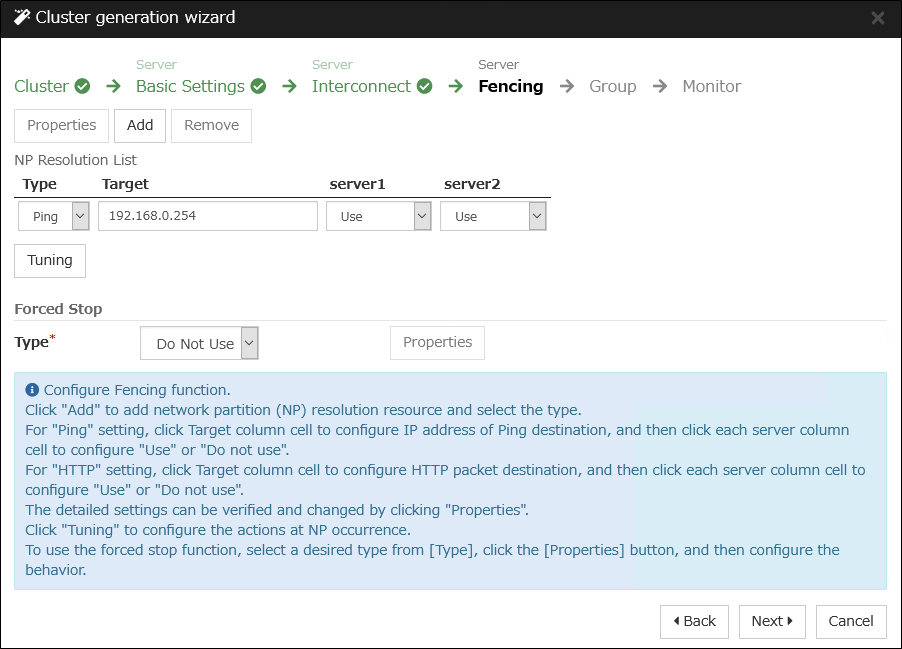

To use NP resolution in the PING mode, click Add and add a row to NP Resolution List, click Type and select Ping, click the cell of Target, and then click the cell of each server and enter the IP addresses of the ping destination target devices (such as a gateway). When multiple IP addresses separated by commas are entered, they are regarded as isolated from the network if there is no ping response from any of them.
If the PING mode is used only on some servers, set the cell of the server not to be used to DoNotUse.
For the setup example in this chapter, 192.168.0.254 is specified for Target.
To use NP resolution in the HTTP mode, add a row to NP Resolution List by clicking Add, click the cell in Type column, and select HTTP. Then click Properties, enter the address of the Web server in Target Host, and enter the port number in Service Port. If the HTTP mode is used only on some servers, set the cells of the servers not to be used to Do Not Use.
For the setup example in this chapter, the HTTP mode is not used.

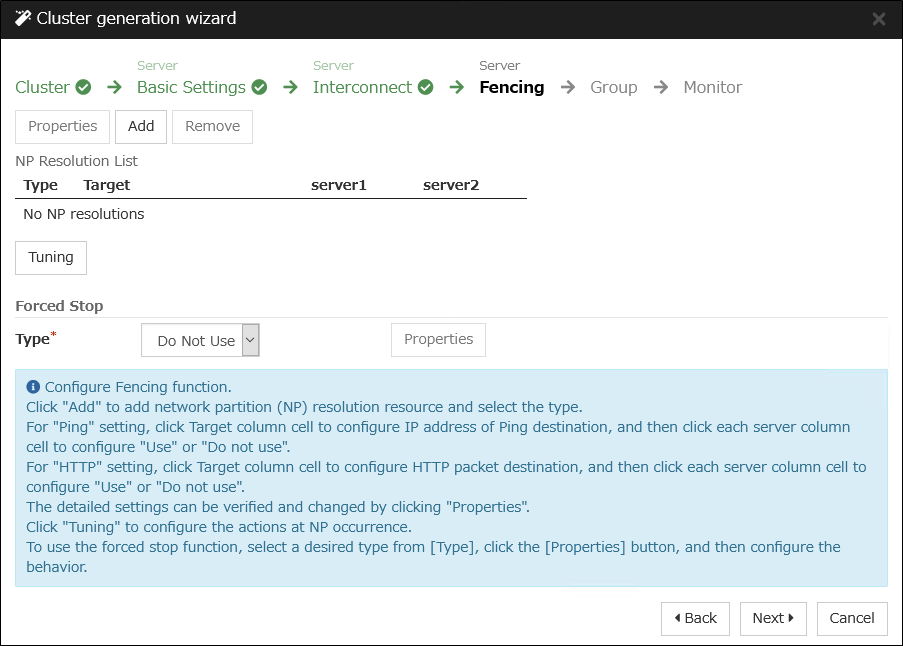

Specify the operation to perform when a network partition is detected. Select Stop the cluster service or Stop the cluster service and shutdown OS.
To use the mirror disk, Stop the cluster service is selected.
Set up a group that works as a unit of failover at the time an error occurs.
In the Group List click Add.
The Group Definition dialog box is displayed. Enter the group name (failover1) in the Name box, and click Next.
Specify a server on which the failover group can start up. For the setup example in this chapter, select the Failover is possible at all servers check box to use the shared disk and mirror disk.
Specify each attribute value of the failover group. Because all the default values are used for the setup example in this chapter, click Next.

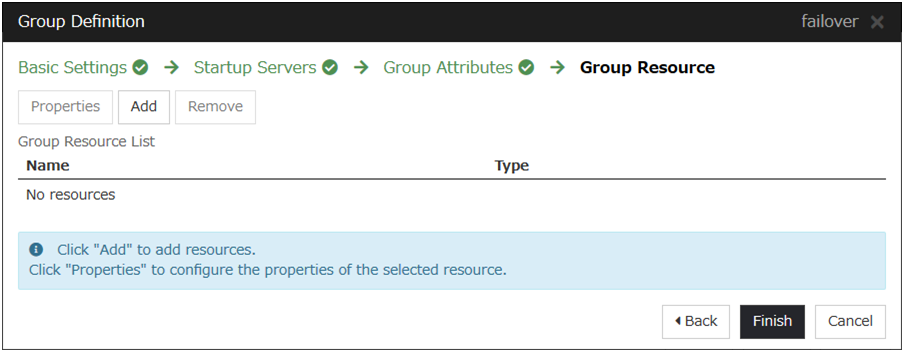

The Group Resource is displayed.
6.4.2.2. Add a group resource (Floating IP resource)
Add a group resource, a configuration element of the group, to the failover group you have created in "6.4.2.1.Add a failover group".
In the Group Resource List, click Add.
The Resource Definition of Group | failover1 dialog box is displayed. In this dialog box, select the group resource type Floating IP resource in the Type box, and enter the group name fip1 in the Name box. Click Next.
The Dependent Resources page is displayed. Specify nothing. Click Next.
The Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection pages are displayed. Click Next.
Enter IP address (192.168.0.12 ) to IP Address box. Click Finish.
6.4.2.3. Add a group resource (Volume manager resource)
If using a shared disk in the cluster environment, add a shared disk as a group resource.
In the Group Resource List, click Add.
The Resource Definition of Group | failover1 dialog box is displayed. In this dialog box, select the group resource type Volume manager resource in the Type box, and enter the group resource name volmgr1 in the Name box. Click Next.
The Dependent Resources page is displayed. Specify nothing. Click Next.
The Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection pages are displayed. Click Next.
Select volume manager name to be used (lvm1) and enter the target name (vg1) in the box. Click Finish.
If a shared disk is used in a cluster system, add a shared disk as a group resource.
In the Group Resource List, click Add.
In the Resource Definition of Group | failover1, select the group resource type Disk resource in the Type box, and enter the group resource name disk1 in the Name box. Click Next.
The Dependent Resources page is displayed. Specify nothing. Click Next.
The Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection pages are displayed. Click Next.
Select disk type (disk) in the Disk Type box and file system (ext3) in the File System box, and enter device name (/dev/sdb2) and mount point (/mnt/sdb2) to each box. Click Finish.
6.4.2.5. Add a group resource (Mirror disk resource)
If a cluster system is a data mirror type, add a mirror disk as a group resource.
In the Group Resource List, click Add.
The Resource Definition of Group | failover1 box is displayed. Select the group resource type Mirrordisk resource in the Type box, and enter the group resource name md1 in the Name box. Click Next.
Note
If a Mirror disk resource does not appear in the Type box, click the Get License Info button.
If a Mirror disk resource does not appear when you click the Get License Info button, the Replicator or Replicator DR license may not yet have been registered for the server. Check whether the Replicator or Replicator DR license has been registered for the server.
The Dependent Resources page is displayed. Specify nothing. Click Next.
The Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection pages are displayed. Click Next.
Select mirror partition device name (/dev/NMP1) in the Mirror Partition Device Name box. Enter mount point (/mnt/sdb2), data partition device name (/dev/sdb2) and cluster partition device name (/dev/sdb1) to each box. Select file system (ext3) in the File System box. Click Finish.
Add an EXEC resource that can start and stop the application from a script.
In the Group Resource List, click Add.
In the Resource Definition of Group | failover1, select the group resource execute resource in the Type box, and enter the group resource name exec1 in the Name box. Click Next.
The Dependent Resources page is displayed. Specify nothing. Click Next.
The Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection pages are displayed. Click Next.
Check Script created with this product. Describe start or stop procedures of the application by editing this script. When the application to be used by EXPRESSCLUSTER is decided, edit the script here. Click Finish.

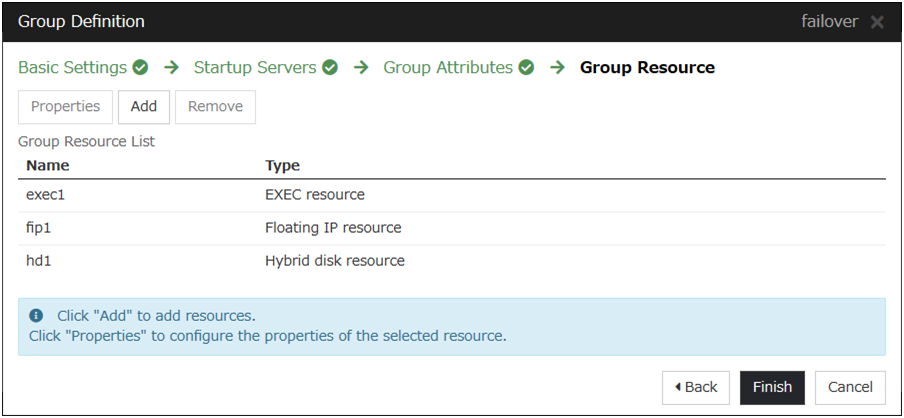

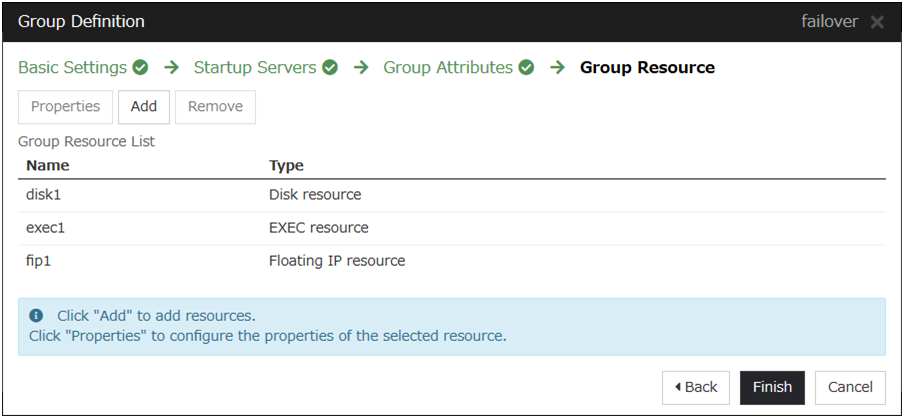

When a shared disk is used in a cluster system, the Group Resource List of the failover1 should look similar to the following:

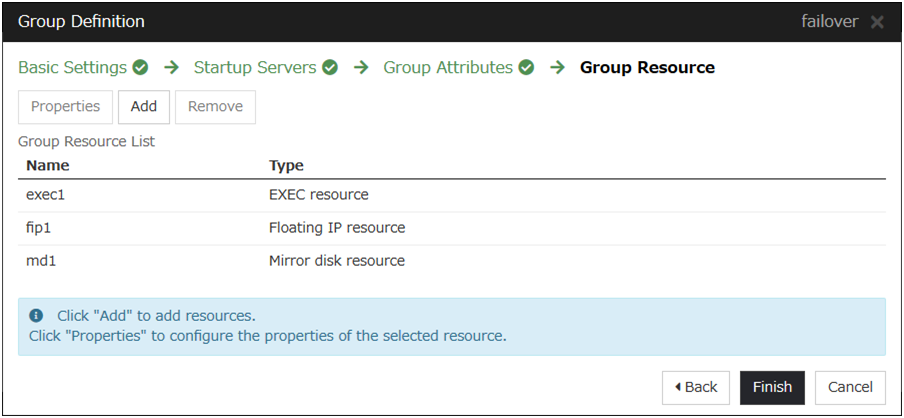

When a cluster system is a data mirror type, the Group Resource List of the failover1 should look similar to the following:
Add monitor resources to monitor the target disk. Disk monitor is used as an example of a monitor resource to be added.
In the Group , click Next.
In the Monitor Resource List, click Add.
The Monitor Resource Definition dialog box is displayed. When a shared disk is used in the cluster environment, the first monitor resource information is created by default when the cluster name is defined. When a mirror disk is used in the cluster environment, the first monitor resource information is created by default when the cluster name is defined. The sixth and seventh monitor resource information is created by default when the mirror disk resource is added. Select the monitor resource type Disk monitor in the Type box, and enter the monitor resource name (diskw1) in the Name box. Click Next.
Configure the monitor settings. When using volume manager, enter the monitor timing (active) and monitor target (volmgr1). When volume manager is not used, do not change the default value and click Next.
When using volume manager, enter Method (READ(O_DIRECT)) and Monitor Target (/dev/vg1/lv1). When volume manager is not used, enter Method (READ(O_DIRECT)) and Monitor Target (/dev/sdb1). Click Next.
Set Recovery Target. Click Browse.
Select LocalServer on the tree view being displayed, and click OK. LocalServer is set to Recovery Target.
Select Stop the cluster service and shut down OS in the Final Action box, and click Finish.
In the Monitor Resource Definition dialog box, select the monitor resource type IP monitor in the Type box, and enter the monitor resource name ipw1 in the Name box. Click Next.
Enter the monitor settings. Change nothing from the default values. Click Next.
Click Add.
Enter the IP address to be monitored (10.0.0.254) in the IP Address box, and then click OK.
Note
For the monitoring target of the IP monitor resource, specify the IP address of a device (such as a gateway) that is assumed to always be active on the public LAN.
The entered IP address is specified in the IP Addresses list. Click Next.
Specify the recovery target. Click Browse.
Select All Groups in the tree view and click OK. All Groups is set to Recovery Target.
Click Finish.

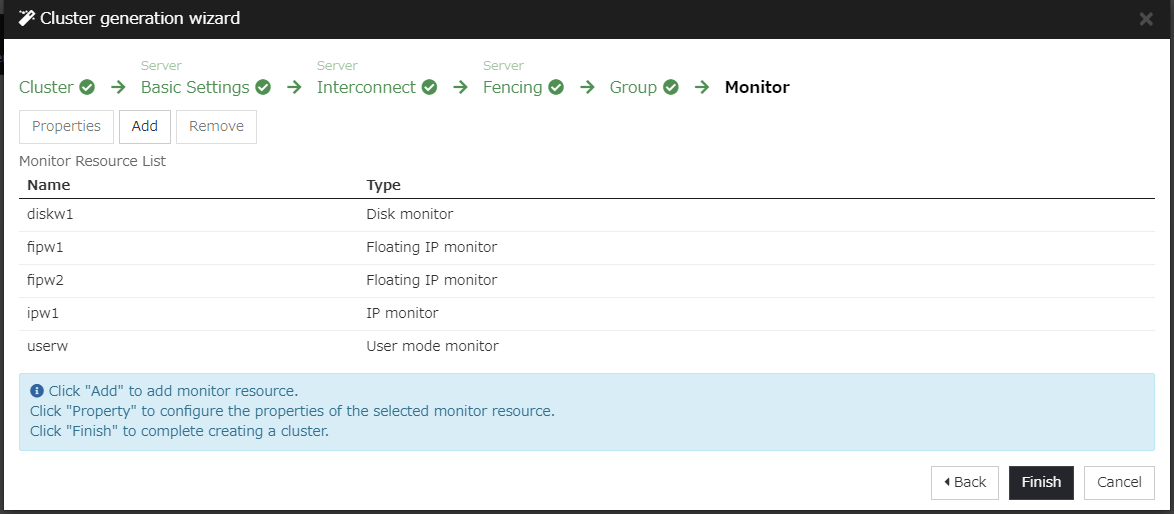

The Monitor Resource Definition list displays resources as shown below. When the Mirror disk resource is used, mdnw1 and mdw1 will also appear in the list. When the Volume manager resource is used, volmgrw1 will also appear in the list.

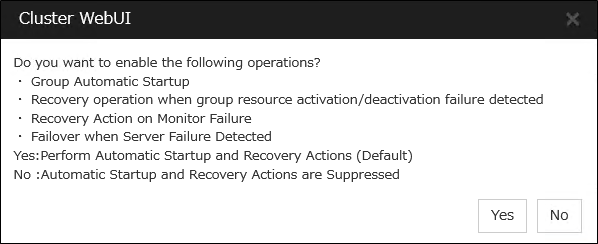

When you click Finish after creating a monitor resource, the following popup message appears:
Clicking No disables automatic group startup, recovery on the activation/deactivation failure of a group resource, recovery on the failure of a monitor resource, and failover on a server crash. To start a cluster for the first time after creating the cluster configuration data, it is recommended to disable the automatic start and the recovery and to check the cluster configuration data for errors.
To disable the cluster operation, go to Cluster properties -> Extension tab -> Disable cluster operation.
Note
Disabling the recovery on the failure of a monitor resource is not applied to user mode monitor resources.
Creating the cluster configuration data is completed. Proceed to "6.11.Creating a cluster ".
6.5. Checking the values to be configured in the cluster environment with three nodes

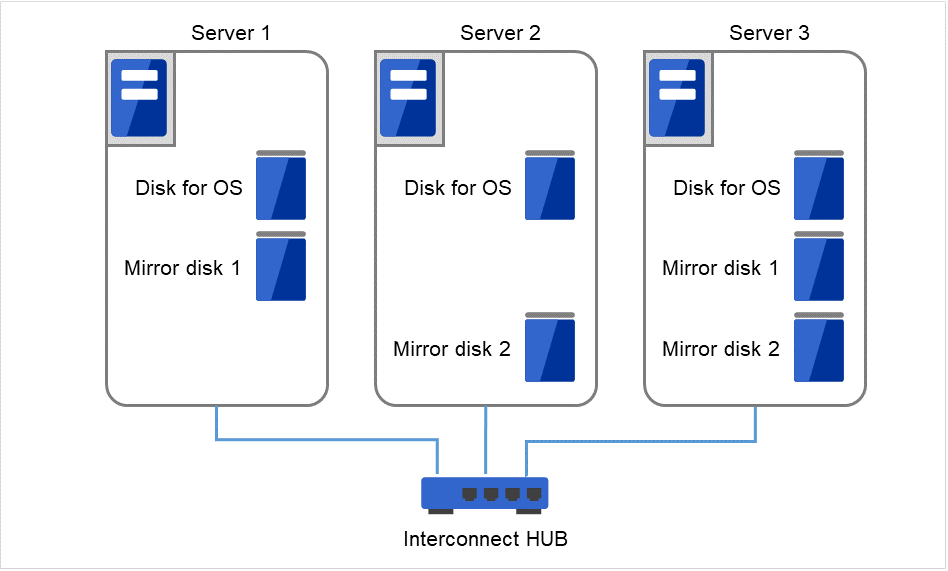

As shown in the diagram below, this chapter uses a configuration with three nodes mirror as a cluster example.

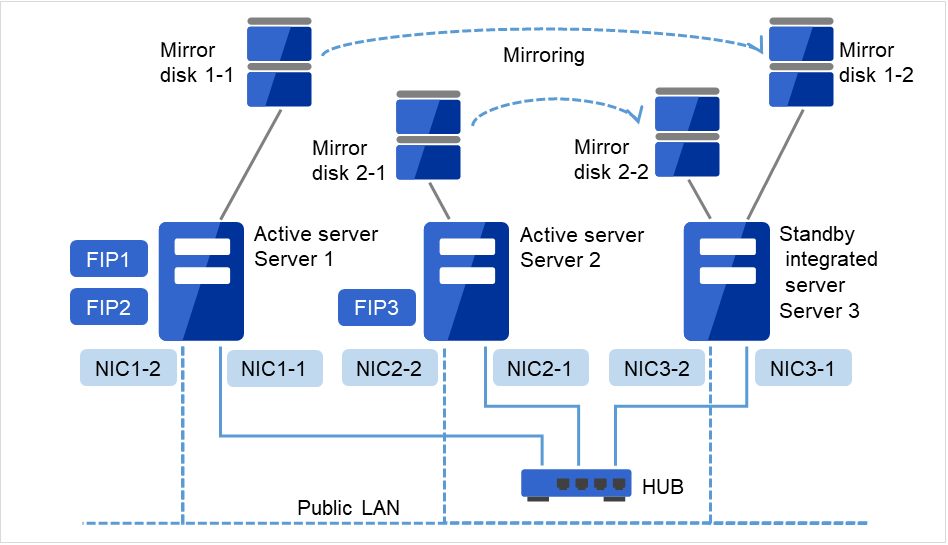

Fig. 6.6 Example of a 3-node cluster with mirror disks
FIP1: to be accessed by Cluster WebUI clients
FIP2: to be accessed by operation clients
The following table lists sample values of the cluster configuration data to achieve the cluster system shown above. These values and configuration are applied hereafter in the step-by-step instruction to create the cluster configuration data. When you actually set the values, you may need to modify them according to the cluster you are intending to create. For information on how you determine the values, refer to the "Reference Guide".
Eighth monitor resource (Automatically created after creating mirror disk resource)
Type
Mirror disk connect monitor
Monitor resource name
mdnw1
Monitored mirror disk resource
md1
When error is detected
No operation
Ninth monitor resource (Automatically created after creating mirror disk resource)
Type
Mirror disk connect monitor
Monitor resource name
mdnw2
Monitored mirror disk resource
md2
When error is detected
No operation
Tenth monitor resource (Automatically created after creating mirror disk resource)
Type
mirror disk monitor
Monitor resource name
mdw1
Monitored mirror disk resource
md1
When error is detected
No operation
Eleventh monitor resource (Automatically created after creating mirror disk resource)
Type
Mirror disk monitor
Monitor resource name
mdw2
Monitored mirror disk resource
md2
When error is detected
No operation
6.6. Creating the configuration data of a 3-node cluster
Creating the cluster configuration data involves creating a cluster, group resources, and monitor resources. The steps you need to take to create the data are described in this section.
Note
The following instruction can be repeated as many times as necessary. Most of the settings can be modified later by using the rename function or properties view function.
In the config mode of Cluster WebUI, click Cluster generation wizard to display the Cluster Generation Wizard. In the Language field, select a language that is used on the machine that the Cluster WebUI works.
Note
Only one language is available within one cluster. If multiple languages are used within a cluster, specify English to avoid garbled characters.
Enter the cluster name cluster in the Cluster Name box.
Enter the floating IP address (10.0.0.11) used to connect the Cluster WebUI in the Management IP Address box. Click Next.
The Basic Settings window for the server is displayed. The server (server1) for which the IP address was specified as the URL when starting up the Cluster WebUI is registered in the list.
Add the second and subsequent servers to the cluster.
In the Server List, click Add.
The Add Server dialog box is displayed. Enter the server name, FQDN name, or IP address of the second server, and then click OK. The second server (server2) is added to the Server List.
Set up the network configuration between the servers in the cluster.
Add or remove them by using Add or Remove, click a cell in each server column, and then select or enter the IP address. For a communication route to which some servers are not connected, leave the cells for the unconnected servers blank.
For a communication route used for heartbeat transmission (interconnect) , click a cell in the Type column, and then select Kernel Mode. Select Mirror Communication Only when using only for data mirroring communication of the mirror disk resource or hybrid disk resource, not using heartbeat.
At least one communication route must be specified for the interconnect. Specify as many communication routes for the interconnect as possible.
If multiple interconnects are set up, the communication route for which the Priority column contains the smallest number is used preferentially for internal communication between the servers in the cluster. To change the priority, change the order of communication routes by selecting arrows.
When using DISK heartbeat, click Type column cell and select DISK. Click Server name column cell and select or enter disk device.
When using Witness heartbeat, click a cell in the Type column, and select Witness. Next, click Properties, and enter the address of Witness server for Target Host. Then enter the port number for Service Port. For servers that do not use Witness heartbeat, click the cells of those servers, and select Do Not Use.
For a communication route used for data mirroring communication for mirror disk resources (mirror disk connect), click a cell in the MDC column, and then select the mirror disk connect name (mdc1 to mdc16) assigned to the communication route. Select Not Used for communication routes not used for data mirroring communication.
To use NP resolution in the PING mode, click Add and add a row to NP Resolution List, click Type and select Ping, click the cell of Target, and then enter the IP addresses of the ping destination target devices (such as a gateway). When multiple IP addresses separated by commas are entered, they are regarded as isolated from the network if there is no ping response from any of them.
If the PING mode is used only on some servers, set the cell of the server not to be used to DoNotUse.
If some ping-related parameters must be changed from their default values, select Properties, and then specify the settings in the Ping NP Properties dialog box.
For the setup example in this chapter, a row for the PING mode is added and 192.168.0.254 is specified for Target.
To use NP resolution in the HTTP mode, add a row to NP Resolution List by clicking Add, click the cell in Type column, and select HTTP. Then click Properties, enter the address of the Web server in Target Host, and enter the port number in Service Port. If the HTTP mode is used only on some servers, set the cells of the servers not to be used to Do Not Use.
For the setup example in this chapter, the HTTP mode is not used.
Specify the operation to perform when a network partition is detected. Select Stop the cluster service or Stop the cluster service and shutdown OS.
For the setup example in this chapter, Stop the cluster service is selected.
Set up a group that works as a unit of failover at the time an error occurs.
In the Group List, click Add.
The Group Definition is displayed.
Enter the group name (failover1) in the Name box, and then click Next.
Specify a server that the failover group can start up. In the setting example of this chapter, clear the Failover is possible at all servers check box and add server1 and server2 from the Available Servers to the Servers that can run the Group in this order.
Specify each attribute value of the failover group. Because all the default value are used in the setting example of this chapter, click Next.
The Group Resource is displayed.
6.6.2.2. Add a group resource (Floating IP resource)
The Resource Definition of Group | failover1 dialog box is displayed. Select the group resource type Floating IP resource in the Type box, and enter the group name fip1 in the Name box. Click Next.
The Dependent Resources page is displayed. Specify nothing. Click Next.
Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection are displayed. Click Next.
Enter IP address (10.0.0.12) to IP Address box. Click Finish.
6.6.2.3. Add a group resource (Mirror disk resource)
In the Group Resource List, click Add.
In the Resource Definition of Group | failover1 dialog box, select the group resource type Mirrordisk resource in the Type box, and enter the group resource name md1 in the Name box. Click Next.
The Dependent Resources page is displayed. Specify nothing. Click Next.
Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection are displayed. Click Next.
Select the mirror partition device name /dev/NMP1 in the Mirror Partition Device Name box. Enter the mount point /mnt/md1, the data partition device name /dev/sdb2, and the cluster partition device name /dev/sdb1 in the respective box. In the File System dialog box, select the file system ext3.
Click Select in Mirror Disk Connect. Select 2 of Order. and click Remove. Confirm that only 1 of Order. is selected in the Mirror Disk Connects list. Click OK.
In Resource Definition of Group | failover1, click Finish.
Add an EXEC resource that can start and stop the application from a script.
In the Group Resource List, click Add.
In the Resource Definition of Group | failover1 dialog box, select the group resource execute resource in the Type box, and enter the group name exec1 in the Name box. Click Next.
The Dependent Resources page is displayed. Specify nothing. Click Next.
Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection are displayed. Click Next.
Select Script created with this product. Edit the script if applications to be used in EXPRESSCLUSTER are already decided. Users may edit this script to describe the procedure to start and stop a group of applications. Click Finish.
The Group Resource List of the failover1 should look similar to the following:
Set up a group that works as a unit of failover at the time an error occurs.
In the Group List, click Add.
The Group Definition is displayed.
Enter the group name (failover2) in the Name box, and then click Next.
Specify a server that the failover group can start up. In the setting example of this chapter, clear the Failover is possible at all servers check box and select server2 from the Available Servers and click Add. Server2 is added to the Servers that can run the Group. And in the same way, add server3 and click Next.
Specify each attribute value of the failover group. Because all the default value are used in the setting example of this chapter, click Next.
The Group Resource is displayed.
6.6.2.6. Add a group resource (Floating IP resource)
In the Resource Definition of Group | failover2 dialog box, select the group resource type Floating IP resource in the Type box, and enter the group name fip2 in the Name box. Click Next.
A page for setting up a dependency is displayed. Click Next.
Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection are displayed. Click Next.
Enter IP address (10.0.0.13) to IP Address box. Click Finish.
6.6.2.7. Add a group resource (Mirror disk resource)
Click Add in the Group Resource.
In the Resource Definition of Group | failover2 dialog box, select the group resource type mirrordisk resource in the Type box, and enter the group name md2 in the Name box. Click Next.
A page for setting up a dependency is displayed. Click Next.
Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection are displayed. Click Next.
Select the mirror partition device name /dev/NMP2 in the Mirror Partition Device Name box. Enter the mount point /mnt/md2, the data partition device name /dev/sdb2, and the cluster partition device name /dev/sdb1 in the respective box. In the File System dialog box, select the file system ext3.
Click Select in Mirror Disk Connect. Select 2 of Order, and click Remove. Confirm that only 2 of Order is selected in the Mirror Disk Connects list. Click OK.
Select server3 tab in the Resource Definition of Group | failover2 dialog box, and check Set Up Individually on. Re-enter data partition device name (/dev/sdc2) and cluster partition device name (/dev/sdc1).
Add an EXEC resource that can start and stop the application from a script.
Click Add in the Group Resource List.
In the Resource Definition of Group | failover2 dialog box, select the group resource EXEC resource in the Type box, and enter the group name exec2 in the Name box. Click Next.
A page for setting up a dependency is displayed. Click Next.
Select Script created with this product. Users may edit this script to describe the procedure to start and stop a group of applications. Edit the script if applications to be used in EXPRESSCLUSTER are already decided. Click Next.
Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection are displayed. Click Next.
When a cluster system is a data mirror type, the Group Resource of the failover2 should look similar to the following:
Add a monitor resource that monitors a specified target to the cluster.
6.6.3.1. Add a monitor resource (Disk monitor resource)
Add monitor resources to monitor the target disk. disk monitor resource is used as an example of a monitor resource to be added.
In the Group list, click Next.
In the Monitor Resource List, click Add.
In the Monitor Resource Definition dialog box, the first monitor resource information is created by default when the cluster name is defined. The monitor resource information from seventh to tenth is created by default when Mirror disk resource is added. Select the monitor resource type (Disk monitor) in the Type box, and enter the monitor resource name (diskw1) in the Name box. Click Next.
Configure the monitor settings. Do not change the default value and click Next.
Enter Method (READ(O_DIRECT)) and Monitor Target(/dev/sdb1). Click Next.
Set Recovery Target. Click Browse.
Select LocalServer on the tree view being displayed, and click OK. LocalServer is set to Recovery Target.
Select Stop the cluster service and shut down OS in the Final Action box, and click Finish.
6.6.3.2. Add a monitor resource (Disk monitor resource)
Add monitor resources to monitor the target disk. Disk monitor resource is used as an example of a monitor resource to be added.
In the Monitor Resource List, click Add.
In the Monitor Resource Definition dialog box, select the monitor resource type (Disk monitor) in the Type box, and enter the monitor resource name (diskw2)in the Name box. Click Next.
Configure the monitor settings. Click Server.
Select the Select radio button. Select server3 on Available Servers. Confirm that server3 is added to Servers that can run the Group. Click OK.
In the Monitor Resource Definition window, click Next.
Enter Method (READ(O_DIRECT)) and Monitor Target(/dev/sdb1). Click Next.
Set Recovery Target. Click Browse.
Select LocalServer on the tree view being displayed, and click OK. LocalServer is set to Recovery Target.
Select Stop the cluster serviceand shut down OS in the Final Action box, and click Finish.
6.6.3.3. Add a monitor resource (IP monitor resource)
In the Monitor Resource List, click Add.
In the Monitor Resource Definition dialog box select the monitor resource type IP monitor in the Type box, and enter the monitor resource name ipw1 in the Name box. Click Next.
Enter the monitor settings. Change nothing from the default values. Click Next.
Click Add.
Enter the IP address to be monitored (10.0.0.254) in the IP Address box, and then click OK.
Note
For the monitoring target of the IP monitor resource, specify the IP address of a device (such as a gateway) that is assumed to always be active on the public LAN.
The entered IP address is specified in the IP Addresses list. Click Next.
Specify the recovery target. Click Browse.
Select All Groups in the tree view and click OK. All Groups is set to Recovery Target.
Click Finish

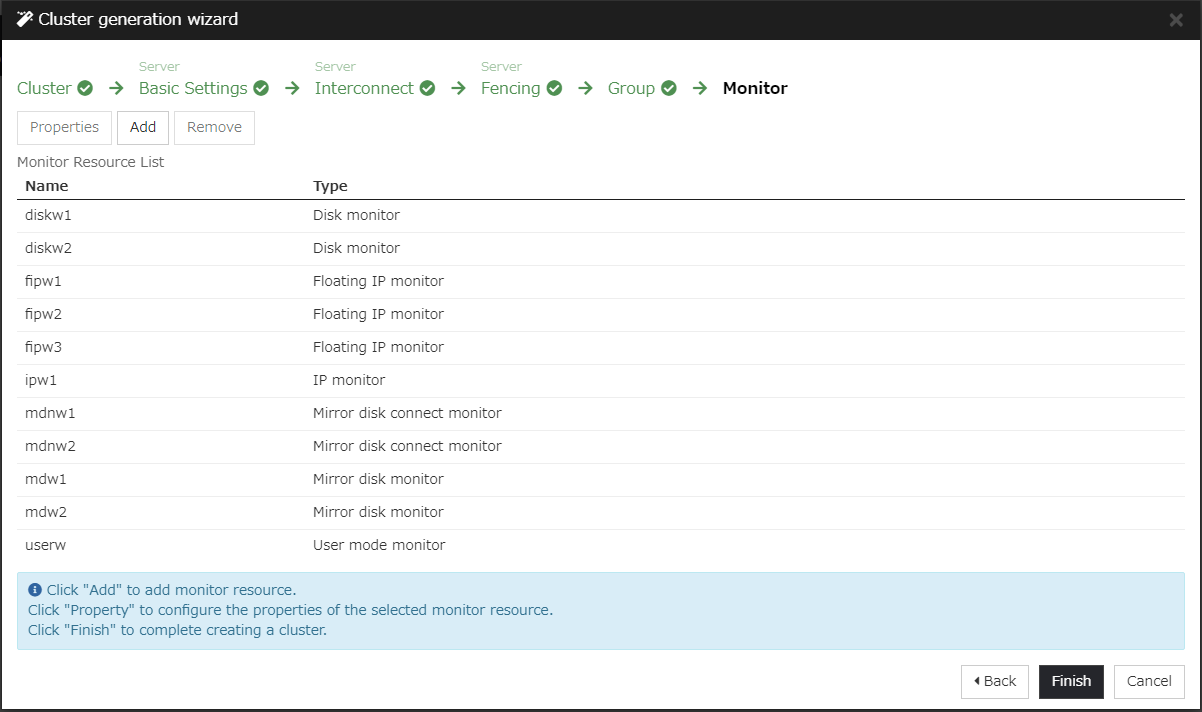

The Monitor Resource List displays resources as shown below. When the Mirror disk resource is used, mdnw1 and mdw1 will also appear in the list.
When you click Finish after creating a monitor resource, the following popup message appears:
Clicking No disables automatic group startup, recovery on the activation/deactivation failure of a group resource, recovery on the failure of a monitor resource, and failover on a server crash. To start a cluster for the first time after creating the cluster configuration data, it is recommended to disable the automatic start and the recovery and to check the cluster configuration data for errors.
To disable the cluster operation, go to Cluster properties -> Extension tab tab -> Disable cluster operation.
Note
Disabling the recovery on the failure of a monitor resource is not applied to user mode monitor resources.
The following table lists sample values of the cluster configuration data to achieve the cluster system shown above. These values and configuration are applied hereafter in the step-by-step instruction to create the cluster configuration data. When you actually set the values, you may need to modify them according to the cluster you are intending to create. For information on how you determine the values, refer to the "Reference Guide".
Example of configuration with three nodes
Target
Parameter
Value
Cluster configuration
Cluster name
cluster
Number of servers
3
Number of failover groups
2
Number of server groups
2
Number of monitor resources
6
Server Down Notification
Off (not used)
Heartbeat resources
Number of kernel mode LAN heartbeats
2
Number of disk heartbeats
1
First server information
(Master server)
Server name
server1
Interconnect IP address
(Dedicated)
192.168.0.1
Interconnect IP address
(Backup)
10.0.0.1
Public IP address
10.0.0.1
Disk heartbeat device
/dev/sdb3
Disk heartbeat Raw device
/dev/raw/raw1
Mirror disk connect 1
192.168.0.1
Mirror disk connect 2
-
Second server information
Server name
server2
Interconnect IP address
(Dedicated)
192.168.0.2
Interconnect IP address
(Backup)
10.0.0.2
Public IP address
10.0.0.2
Disk heartbeat device
/dev/sdb3
Disk heartbeat Raw device
/dev/raw/raw1
Mirror disk connect
192.168.0.2
Third server information
Server name
server3
Interconnect IP address
(Dedicated)
192.168.0.3
Interconnect IP address
(Backup)
10.0.0.3
Public IP address
10.0.0.3
Disk heartbeat device
Not configured
Disk heartbeat Raw device
Not configured
Mirror disk connect
192.168.0.3
First server group
Server group name
svg1
Belonging servers
server1
server2
Second server group
Server group name
svg2
Belonging servers
server3
Group for management
(For the Cluster WebUI)
Type
failover
Group name
ManagementGroup
Startup server
All servers
Number of group resources
1
Group resources for management
Type
Floating IP resource
Group resource name
ManagementIP
IP address
10.0.0.11
Group resources for operation
Type
failover
Group name
failover1
Startup server
server1 -> server 2 -> server3
Server Group
svg1 -> svg2
Number of group resources
3
First group resources
Type
Floating IP resource
Group resource name
fip1
IP address
10.0.0.12
Second group resources
(Shared disk for hybrid resource
Disk for hybrid resource)
Type
Hybrid disk resource
Group resource name
hd1
Mirror partition device name
/dev/NMP1
Mount point
/mnt/hd1
Data partition device name
/dev/sdb2
Cluster partition device name
/dev/sdb1
File system
ext3
Mirror disk connect
mdc1
Third group resources
Type
EXEC resource
Group resource name
exec1
Script
Standard Script
First monitor resources
(Created by default)
Type
User mode monitor
Monitor resource name
userw
Second monitor resources
Type
diskw
Monitor resource name
diskw1
Monitored target
/dev/sdb2/
Monitoring method
READ(O_DIRECT)
When error is detected
Stop the cluster service and shut down OS
Third monitor resources
(Automatically created after creating a ManagementIP resource)
Type
Floating IP monitor
Monitor resource name
fipw1
Monitored target
ManagementIP
When error is detected
"ManagementGroup" group's Failover
Fourth monitor resources
Type
Floating IP monitor
(Automatically created after creating an fip1 resource)
Monitor resource name
fipw2
Monitored target
fip1
When error is detected
"failover1" group's Failover
Fifth monitor resource
Type
IP monitor
Monitor resource name
ipw1
Monitor target
10.0.0.254
(gateway)
When an error is detected
Failover of all groups
Sixth monitor resource
(Automatically created after creating hybrid disk resource)
Type
hybrid disk connect monitor
Monitor resource name
hdnw1
Monitored hybrid disk resource
hd1
When error is detected
No operation
Seventh monitor resource
(Automatically created after creating hybrid disk resource)
Type
Hybrid disk monitor
Monitor resource name
hdw1
Monitored hybrid disk resource
hd1
When error is detected
No operation
6.8. Creating the configuration data of a 3-node cluster (hybrid type)
Creating the cluster configuration data involves creating a cluster, server group, group, monitor resources and modifying cluster properties. The steps you need to take to create the data are described in this section.
Note
The following instruction can be repeated as many times as necessary. Most of the settings can be modified later by using the rename function or properties view function.
In the config mode of Cluster WebUI, click Cluster generation wizard to display the Cluster Generation Wizard dialog box. In the Language field, select a language that is used on the machine that the Cluster WebUI works.
Note
Only one language is available within one cluster. If multiple languages are used within a cluster, specify English to avoid garbled characters.
Enter the cluster name cluster in the Name box.
Enter the floating IP address (10.0.0.11) used to connect the Cluster WebUI in the Management IP Address box. Click Next.
The Basic Settings window for the server is displayed. The server (server1) for which the IP address was specified as the URL when starting up the Cluster WebUI is registered in the list.
Add the second and subsequent servers to the cluster.
In the Server Definitions, click Add.
The Server Addition dialog box is displayed. Enter the server name, FQDN name, or IP address of the second server, and then click OK. The second server (server2) is added to the Server Definitions.
Add the third server (server3) in the same way.

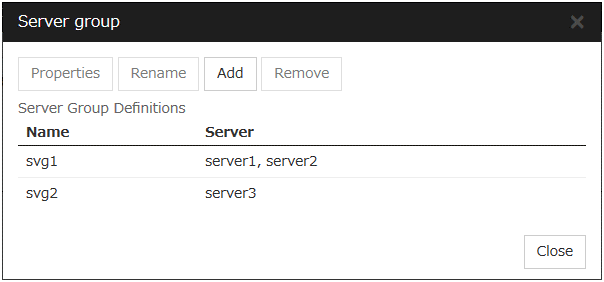

When using hybrid disks, click Settings and create two server groups (svg1 and svg2), add server1 and server2 to svg1 and add server3 to svg2.
Set up the network configuration between the servers in the cluster.
Add or remove them by using Add or Remove, click a cell in each server column, and then select or enter the IP address. For a communication route to which some servers are not connected, leave the cells for the unconnected servers blank.
For a communication route used for heartbeat transmission (interconnect) , click a cell in the Type column, and then select Kernel Mode. When using only for the data mirroring communication of the mirror disk resource or the hybrid disk resource and not using for the heartbeat, select Mirror Communication Only.
At least one communication route must be specified for the interconnect. Specify as many communication routes for the interconnect as possible.
If multiple interconnects are set up, the communication route for which the Priority column contains the smallest number is used preferentially for internal communication between the servers in the cluster. To change the priority, change the order of communication routes by selecting arrows.
When using Witness heartbeat, click a cell in the Type column, and select Witness. Next, click Properties, and enter the address of Witness server for Target Host. Then enter the port number for Service Port. For servers that do not use Witness heartbeat, click the cells of those servers, and select Do Not Use.
For a communication route used for data mirroring communication for mirror disk resources (mirror disk connect), click a cell in the MDC column, and then select the mirror disk connect name (mdc1 to mdc16) assigned to the communication route. Select Not Used for communication routes not used for data mirroring communication.
To use NP resolution in the PING mode, click Add and add a row to NP Resolution List, click Type and select Ping, click the cell of Target, and then enter the IP addresses of the ping destination target devices (such as a gateway). When multiple IP addresses separated by commas are entered, they are regarded as isolated from the network if there is no ping response from any of them.
If the PING mode is used only on some servers, set the cell of the server not to be used to DoNotUse.
If some ping-related parameters must be changed from their default values, select Properties, and then specify the settings in the Ping NP Properties dialog box.
For the setup example in this chapter, a row for the PING mode is added and 192.168.0.254 is specified for Target.
To use NP resolution in the HTTP mode, add a row to NP Resolution List by clicking Add, click the cell in Type column, and select HTTP. Then click Properties, enter the address of the Web server in Target Host, and enter the port number in Service Port. If the HTTP mode is used only on some servers, set the cells of the servers not to be used to Do Not Use.
For the setup example in this chapter, the HTTP mode is not used.
Specify the operation to perform when a network partition is detected. Select Stop the cluster service or Stop the cluster service and shutdown OS.
For the setup example in this chapter, Stop the cluster service is selected.
Set up a group that works as a unit of failover at the time an error occurs.
In the Group List, click Add.
In the Group Definition dialog box, enter the group name (failover1) in the Name box, and click Next.
Add svg1 and svg2 from the Available Server Groups list to the Server Groups that can run the Group in the order in the order of svg1, svg2.
Specify each attribute value of the failover group. Because all the default values are used for the setup example in this chapter, click Next.
The Group Resource is displayed.
6.8.2.2. Add a group resource (Floating IP address)
Add a group resource, a configuration element of the group, to the failover group you have created in "6.8.2.1.Add a failover group".
Click Add in the Group Resource List.
The Resource Definition of Group | failover1 dialog box is displayed. In this dialog box, select the group resource type Floating IP resource in the Type box, and enter the group name fip1 in the Name box. Click Next.
The Dependent Resources page is displayed. Specify nothing. Click Next.
The Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection pages are displayed. Click Next.
Enter the IP Address 10.0.0.12 in the IP Address box. Click Finish.
6.8.2.3. Add a group resource (Hybrid disk resource)
In the Group Resource List, click Add.
In the Resource Definition of Group | failover1 dialog box, select the group resource type Hybriddisk resource in the Type box, and enter the group resource name hd1 in the Name box. Click Next.
The Dependent Resources page is displayed. Specify nothing. Click Next.
The Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection pages are displayed. Click Next.
Select the mirror partition device name /dev/NMP1 in Mirror Partition Device Name box. Enter the mount point /mnt/sdb2, the data partition device name /dev/sdb2 and the cluster partition device name /dev/sdb1 in the respective box. In the File System dialog box, select the file system ext3. Click Finish.
Add an EXEC resource that can start and stop the application from a script.
In the Group Resource List, click Add.
In the Resource Definition of Group | failover1 dialog box, select the group resource EXEC resource in the Type box, and enter the group resource name exec1 in the Name box. Click Next.
The Dependent Resources page is displayed. Specify nothing. Click Next.
The Recovery Operation at Activation Failure Detection and Recovery Operation at Deactivation Failure Detection pages are displayed. Click Next.
Select Script created with this product. Edit the script if applications to be used in EXPRESSCLUSTER are already decided. Users may edit this script to describe the procedure to start and stop a group of applications. Click Next.
The Group Resource List of the failover1 should look similar to the following:
Add a monitor resource that monitors a specified target to the cluster.
6.8.3.1. Add a monitor resource (Disk monitor resource)
Add monitor resources to monitor the target disk. "diskw" is used as an example of a monitor resource to be added.
In the Group list, click Next.
In the Monitor Resource List, click Add.
The Monitor Resource Definition dialog box is displayed. The first monitor resource information is created by default when the cluster name is defined. The sixth and the seventh monitor resources are created in default when the hybrid disk resource is added. Select the monitor resource type Disk monitor in the Type box, and enter the monitor resource name diskw1 in the Name box. Click Next.
Configure the monitor settings. Do not change the default value and click Next.
Select Method (READ(RAW)) and enter Monitor Target (/dev/sdb2). Click Next.
Set the recovery target. Click Browse.
Click LocalServer in the tree view, click OK. LocalServer is set to the Recovery Target.
Select Stop the cluster service and shut down OS in the Final Action box, and click Finish.
6.8.3.2. Add a monitor resource (IP monitor resource)
In the Monitor Resource List, click Add.
In the Monitor Resource Definition dialog box, select the monitor resource type IP monitor in the Type box, and enter the monitor resource name ipw1 in the Name box. Click Next.
Enter the monitor settings. Change nothing from the default values. Click Next.
Click Add.
Enter the IP address to be monitored (10.0.0.254) in the IP Address box, and then click OK.
Note
For the monitoring target of the IP monitor resource, specify the IP address of a device (such as a gateway) that is assumed to always be active on the public LAN.
The entered IP address is specified in the IP Addresses list. Click Next.
Specify the recovery target. Click Browse.
Select All Groups in the tree view and click OK. All Groups is set to Recovery Target.
Click Finish.

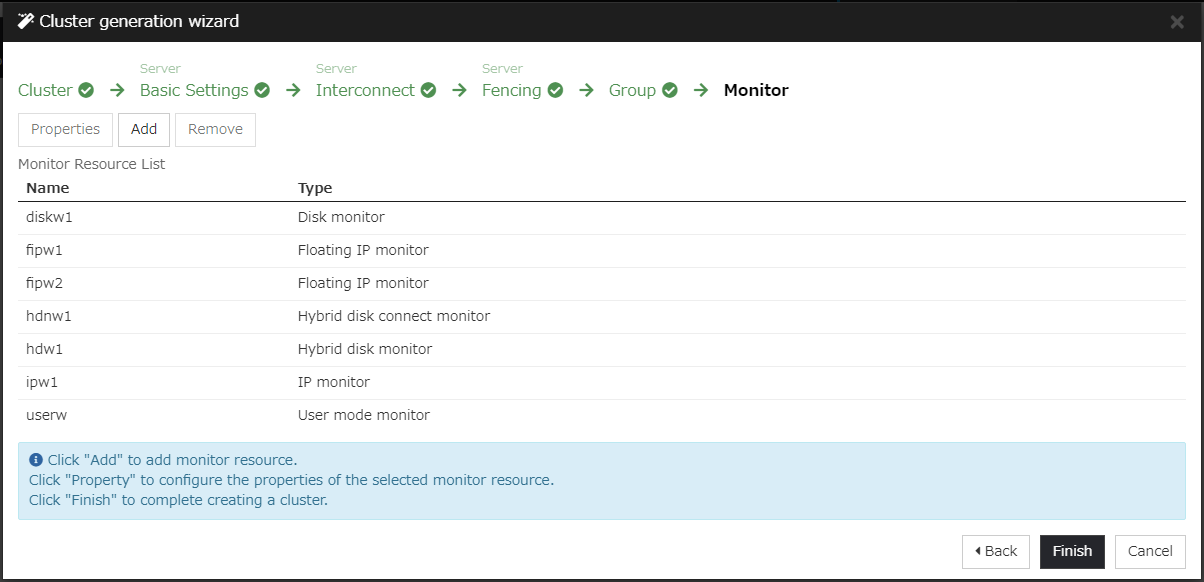

The Monitor Resource List should look similar to the following:
When you click Finish after creating a monitor resource, the following popup message appears:
Clicking No disables automatic group startup, recovery on the activation/deactivation failure of a group resource, recovery on the failure of a monitor resource, and failover on a server crash. To start a cluster for the first time after creating the cluster configuration data, it is recommended to disable the automatic start and the recovery and to check the cluster configuration data for errors.
To disable the cluster operation, go to Cluster properties -> Extension tab tab -> Disable cluster operation.
Note
Disabling the recovery on the failure of a monitor resource is not applied to user mode monitor resources.
The created configuration data can be saved in a directory on your PC or in external media.
Follow the procedures below to save the cluster configuration.
Click Export in the config mode of Cluster WebUI.
Select a location to save the data and save it.
Note
A zip file containing one file (clp.conf) and one directory (scripts) is saved. If any of these are missing, the command to create a cluster does not run successfully. Make sure to treat these two as a set. When new configuration data is edited, clp.conf.bak is created in addition to these two.
Note
When installing EXPRESSCLUSTER, if the port number different from the default value is specified in Port Number, click Cluster Properties and click Port Number and specify the same values for WebManager HTTP Port Number and Disk Agent Port Number specified at the time of installation before saving the cluster configuration data.
Before applying the cluster configuration data created on Cluster WebUI to the cluster servers, the cluster configuration data can be checked.
In the config mode of Cluster WebUI, click Cluster Configuration Information Check.
After the check is completed, the results are displayed in another window. It may take time for the check to be completed, depending on the settings for the created cluster configuration data.
Details of what is checked are as follows:
Cluster Properties
Check item
Description
Ping check on pingnp
Checks whether ping can reach the ping target for network partition resolution.
Target check for pingnp
This check ensures that the ping target for network partitioning resolution does not overlap with the IP addresses of cluster servers.
Port No. tab : port number check
Checks whether the range of automatically assigned communication port numbers managed by the OS does not overlap with that used by EXPRESSCLUSTER.
Port No.(Mirror) tab : port number check
Checks whether the range of automatically assigned communication port numbers managed by the OS does not overlap with that used by EXPRESSCLUSTER.
Port No.(Log) tab : port number check
Checks whether the range of automatically assigned communication port numbers managed by the OS does not overlap with that used by EXPRESSCLUSTER.
Extension tab: 1st check item for the log storage destination path of settings of log storage period
Check if the specified path is outside the EXPRESSCLUSTER installation path.
Extension tab: 2nd check item for the log storage destination path of settings of log storage period
Check if the specified path exists.
/dev/watchdog usage check for Shutdown Monitor
Checks whether the /dev/watchdog device used for monitoring is not being used by anything other than EXPRESSCLUSTER.
Group Resources
Check item
Description
Ping check on fip
Checks whether the specified IP address is not yet used in the same network, by pinging the IP address.
Ping check on vip
Checks whether the specified IP address is not yet used in the same network, by pinging the IP address.
Partition presence check for disk
Checks whether the specified partition exists in the system.
Partition presence check for md
Checks whether the specified partition exists in the system.
Partition presence check for hd
Checks whether the specified partition exists in the system.
Cluster partition size check for md
Checks whether the size of the specified cluster partition is enough.
Cluster partition size check for hd
Checks whether the size of the specified cluster partition is enough.
/etc/fstab entry check for disk
Checks whether the specified partition is not entered in /etc/fstab.
However, if "noauto" is specified as an option, the entry to /etc/fstab is accepted.
/etc/fstab entry check for md
Checks whether the specified partition is not entered in /etc/fstab.
However, if "noauto" is specified as an option, the entry to /etc/fstab is accepted.
/etc/fstab entry check for hd
Checks whether the specified partition is not entered in /etc/fstab.
However, if "noauto" is specified as an option, the entry to /etc/fstab is accepted.
Mount option check for md
Checks whether the mount option for the specified partition is appropriate.
Mount option check for hd
Checks whether the mount option for the specified partition is appropriate.
Port number check for md
Checks whether the range of automatically assigned communication port numbers managed by the OS does not overlap with that used by EXPRESSCLUSTER.
Port number check for hd
Checks whether the range of automatically assigned communication port numbers managed by the OS does not overlap with that used by EXPRESSCLUSTER.
Port number check for azurepp
Checks whether the range of automatically assigned communication port numbers managed by the OS does not overlap with that used by EXPRESSCLUSTER.
Port Number Usage Check for lbpp
This check ensures that the configured port number is not in use by other applications.
File system check for disk
Checks whether the file system for the specified partition is appropriate.
File system check for md
Checks whether the file system for the specified partition is appropriate.
File system check for hd
Checks whether the file system for the specified partition is appropriate.
VG presence check for volmgr
Checks whether the specified volume exists.
Monitor Resources
Check item
Description
/dev/watchdog usage check for userw
Checks whether the /dev/watchdog device used for monitoring is not being used by anything other than EXPRESSCLUSTER.
Heartbeat Resources
Check item
Description
Ping check on khb
Checks whether the IP address specified as a heartbeat resource can be used, by pinging the IP address.
Ping check on hb
Checks whether the IP address specified as a heartbeat resource can be used, by pinging the IP address.
Device presence check for diskhb
Checks whether the specified device exists in the system.
/etc/fstab entry check for diskhb
Checks whether the specified partition is not entered in /etc/fstab.
However, if "noauto" is specified as an option, the entry to /etc/fstab is accepted.
Others
Check item
Description
AWSCLI command execution check
Checks whether the AWS CLI can be run.
OS start time check
Checks whether the time for the OS startup is set longer than the heartbeat timeout.
Checking the configuration of SELinux
Checks whether SELinux is properly set.
Kernel check
Checks the kernel version.
Presence check for tar command
Checks whether the tar command has been installed.
Secure Boot check
Checks whether the secure boot has been disabled.
Unrecommended settings check
Check item
Description
Recovery action check for deactivation failure
Checks whether any setting other than No operation is set for the final action on the deactivation failure of each group resource.
After creating and/or modifying a cluster configuration data, apply the configuration data on the servers that constitute a cluster and create a cluster system.
7.1. Verifying operations using the Cluster WebUI
This chapter provides instructions for verifying the cluster system using the Cluster WebUI. The Cluster WebUI is installed at the time of the EXPRESSCLUSTER Server installation. Therefore, it is not necessary to install it separately. The Cluster WebUI can be accessed from a management PC. The following describes how to access to the Cluster WebUI.
Follow the steps below to verify the operation of the cluster after creating the cluster and connecting to the Cluster WebUI.
See also
For details on how to use the Cluster WebUI, see. If any error is detected while verifying the operation, troubleshoot the error by referring to "Troubleshooting" in the "Reference Guide".
Check heartbeat resources
Verify that the status of each server is online on the Cluster WebUI.
Verify that the heartbeat resource status of each server is normal.
Check monitor resources
Verify that the status of each monitor resource is normal on the Cluster WebUI.
Start up a group
Start a group.
Verify that the status of the group is online on the Cluster WebUI.
Check a disk resource
Verify that you can access the disk mount point on the server where the group having a disk resource is active.
Check a mirror disk resource/hybrid disk resource
Verify that you can access the disk mount point on the server where the group having a mirror disk resource/hybrid disk resource is active.
Check a floating IP resource
Verify that you can ping a floating IP address while the group having the floating IP resource is active.
Check an EXEC resource
Verify that an application is working on the server where the group having an EXEC resource is active.
Stop a group
Stop a group.
Verify that the status of the group is offline on the Cluster WebUI.
Move a group
Move a group to another server.
Verify that the status of the group is online on the Cluster WebUI.
Move the group to all servers in the failover policy and verify that the status changes to online on each server.
Perform failover
Shut down the server where a group is active.
After the heartbeat timeout, check to see the group has failed over. Verify that the status of the group becomes online on the failover destination server on the Cluster WebUI.
Perform failback
When the automatic failback is set, start the server that you shut down in the previous step, "9. Failover." Verify that the group fail back to the original server after it is started using the clpstat command. Verify that the status of group becomes online on the failback destination server on the Cluster WebUI.
Shut down the cluster
Shut down the cluster. Verify that all servers in the cluster are successfully shut down using the clpstat command.
Verify that the status of each server is online by using the clpstat command.
Verify that the heartbeat resource status of each server is normal.
Check monitor resources
Verify that the status of each monitor resource is normal by using the clpstat command.
Start groups
Start the groups with the clpgrp command.
Verify that the status of groups is online by using the clpstat command.
Stop a group
Stop a group with the clpgrp command.
Verify that the status of the group is offline by using the clpstat command.
Check a Disk resource
Verify that you can access a disk mount point on the server where the group having disk resources is active.
Check a Mirror disk resource/hybrid disk resource
Verify that you can access the disk mount point on the server where the group having a mirror disk resource/hybrid disk resource is active.
Check a Floating IP resource
Verify that you can ping a floating IP address while the group having a floating IP resource is active.
Check an EXEC resource
Verify that an application is working on the server where the group having an EXEC resource is active.
Move a group
Move a group to another server by using the clpstat command.
Verify that the status of the group is online by using the clpstat command.
Move the group to all servers in the failover policy and verify that the status changes to online on each server.
Perform failover
Shut down a server where a group is active.
After the heartbeat timeout, check to see the group has failed over by using the clpstat command. Verify that the status of the group becomes online on the failover destination server using the clpstat command.
Perform failback
When the automatic failback is set, start the server which you shut down in the previous step, "9. Failover." Verify that the group fails back to the original server after it is started using the clpstat command. Verify that the status of the group becomes online on the failback destination server using the clpstat command.
Shut down the cluster
Shut down the cluster by using the clpstdn command. Verify that all servers in the cluster are successfully shut down.
The following describes procedures and precautions of modifying the cluster configuration data after creating a cluster.
8.1.1. Modifying the cluster configuration data by using the Cluster WebUI
Start the Cluster WebUI.
Select the Config Mode from the drop down menu of the tool bar in Cluster WebUI.
Modify the configuration data after the current cluster configuration data is displayed
Upload the modified configuration data. Depending on the modified data, it may become necessary to suspend or stop the cluster and/or to restart by shutting down the cluster. In such a case, uploading is canceled once and the required operation is displayed. Follow the displayed message and do as instructed to perform upload again.
Apply the cluster configuration data on the EXPRESSCLUSTER Server environment. The way to apply them varies depending on the nature of the changes. For details on how to change parameters and how to apply them, refer to "Parameter details" in the "Reference Guide".
The way you apply changed parameters may affect behavior of the EXPRESSCLUSTER X. For details, see the table below:
The way to apply changes
Effect
Upload Only
The operation of the applications and EXPRESSCLUSTER Server is not affected. Heartbeat resources, group resources or resource monitor does not stop.
Uploading data and restarting the API service
The operation of the applications and EXPRESSCLUSTER Server is not affected. Heartbeat resources, group resources or resource monitor does not stop.
Uploading data and restarting the WebManager service
The operation of the applications and EXPRESSCLUSTER Server is not affected. Heartbeat resources, group resources or resource monitor does not stop.
Uploading data and restarting the Information Base service
The operation of the applications and EXPRESSCLUSTER Server is not affected. Heartbeat resources, group resources or resource monitor does not stop.
Uploading data and restarting the Node Manager service
As long as the EXPRESSCLUSTER Node Manager service is stopped, heartbeat resources are also stopped. However, the applications on the system continue to operate because group resources do not stop.
Uploading data after suspending the monitor
The monitor resource stops. The application continues to run because the group resource does not stop.
Uploading data after suspending the cluster
The operation of the EXPRESSCLUSTER Server partly stops. While the EXPRESSCLUSTER daemon is suspended, heartbeat resources and monitor resources stop. Applications continue operations because group resources do not stop.
Uploading data after stopping the monitor
The group resource stops. The application stops until the resource is started.
Uploading data after suspending the group
The group stops. The application stops until the group is started.
Uploading data after stopping the cluster
All the operations of the EXPRESSCLUSTER Server stop.
Because groups are also stopped, applications are stopped until a cluster and groups are started after uploading data.
Uploading data after stopping the cluster and mirror agent
The operation of the whole EXPRESSCLUSTER stops. The application stops until the data is uploaded, the cluster is started and the group is started.
Shutdown the cluster and restart after
uploading data
The application stops until the cluster is restarted and the group is started.
Note
If the EXPRESSCLUSTER daemon needs to be suspended or stopped to apply the modified data, ensure it is suspended or stopped before applying the cluster configuration data.
Check if the message on the Cluster WebUI Alert logs shows "Type : Info, Module name: pm, Event ID: 2". For more information on messages, see "Error Messages" in the "Reference Guide".
When the Cluster WebUI is not available to use, check the syslog to see if "Module type: pm, Event type: information, Event ID: 2" is reported.
After checking the message above, apply the cluster configuration data to the EXPRESSCLUSTER environment.
Verify how your cluster behaves by performing dummy-failure tests and/or backup restoration of the shared disk. Check for errors in monitor resources or stoppage of the server and OS.
If any error is detected in monitor resources or any stoppage of the server or the OS occurs, the time-out value or other settings need to be adjusted.
Transition of recovery operation due to dummy failure
When dummy failure is enabled, a test must be conducted to check that recovery of the monitor resources in which an error was detected is performed as set.
(When the shared disks are RAID-configured and dummy-failure tests can be run)
The test must include error, replacement, and recovery of RAID for a shared disk subsystem.
Set a dummy-failure to occur on a shared disk.
Recover RAID from the degenerated state to normal state.
For some shared disks, I/O may temporarily stop or delay when they switch to the degenerated operation or when RAID is reconfigured.
If any time-out and/or delay occurs in operations such as disk monitoring, adjust the time-out value of each monitor resources.
Dummy-failure of the paths to shared disks
(When the path to the shared disk is redundant paths and dummy-failure tests can be run.)
The test must include an error in the paths and switching of one path to another.
Set a dummy-failure to occur in the primary path.
It takes time for some path-switching software (driver) to switch the failed path to the path normally working. In some cases, the control may not be returned to the operating system (software).
If any time-out and/or delay occurs in operations such as disk monitoring, adjust the time-out value of each monitor resources.
Backup/Restoration
If you plan to perform regular backups, run a test backup.
Some backup software and archive commands make CPU and/or disk I/O highly loaded.
If any server and/or OS stop, heartbeat delays, delay in monitor resources, or time-out occur, adjust the heartbeat time-out value and/or time-out value of each monitor resources.
Different types of dummy-failure tests for each device and what happen after the tests are described below:
Device/Resource
Dummy-failure
What happens
Shared disk device SCSI/FC path
Unplug the cable on the server side (for a redundant server, unplug both cables)
When a disk is monitored, failover to the standby server occurs. When no disk is monitored, the operation stops.
Disk heartbeat resource becomes offline.
A warning is issued to the alert log.
= Operation continues.
Disk monitor resources detect an error
For FC, power off the FC Switch
When a disk is monitored, failover to the standby server occurs. When no disk is monitored, the operation stops.
Disk heartbeat resources become offline.
Disk monitor resources detect an error
Interconnect LAN
Unplug the LAN cable
(In the case of a virtual environment, instead of using OS commands, perform the procedure by disconnecting the guest OS's NIC from the virtualization platform side.)
Communication between servers continues using a business LAN
Operation continues
The kernel mode LAN heartbeat resource on the interconnect becomes offline.
A warning is issued to the alert log.
= Operation continues.
An error is detected in an IP monitor resource
Failover to the standby server occurs.
An error is detected in a NIC Link Up/Down monitor resource
Failover to the standby server occurs.
Business LAN
Unplug the LAN cable or power off the HUB
Communication stops, application stalls or an error occurs.
=These do not result in failover.
The kernel mode LAN heartbeat resource on the public LAN becomes inactive.
A warning is issued to the alert log.
= Operation continues.
An error is detected in an IP monitor resource
Failover to the standby server occurs.
An error is detected in a NIC Link Up/Down monitor resource.
Failover to the standby server occurs
UPS
Unplug the UPS from outlet
The active server shuts down
Failover to the standby server occurs
Array UPS
Unplug the UPS from outlet
Both servers shut down
Operation stops
LAN for UPS
Unplug the LAN cable
UPS becomes uncontrollable.
Operation continues
OS error
Run the shutdown command on the active server
The active server shuts down
Failover to a standby server occurs.
Mirror disk connect
Unplug the LAN cable
A warning is issued to the alert log (mirroring stops)
Operation continues, but a switch to a standby server becomes impossible.
An error is detected in mirror disk monitor resource
Operation continues
Disk resource
When Disk Type is not raw
Start up the group after mounting the disk
(Example) # mount /dev/sda2 /mnt/sda2
A disk resource does not get activated.
When Disk Type is raw
Specify the already-used device (the one that is used for the cluster partition) to make it redundant.
The disk resource is not activated.
EXEC resource
Write an invalid command in EXEC resource script
Change "EXIT 0" in the end of script to "EXIT 1"
An EXEC resource does not get activated.
Failover to a standby server occurs.
Floating IP address
Specify the already-used address (the one that is used for server) to make it overlapped
A floating IP resource does not get activated.
Virtual IP resource
Specify the already-used address (the one that is used for server) to make it overlapped
A virtual IP resource does not get activated.
Mirror disk resource
Hybrid disk resource
Start up the group after mounting the disk
(Example) # mount /dev/sda2 /mnt/sda2
A mirror disk resource/hybrid disk resource does not get activated.
PID monitor resource
Terminate resident process of monitored EXEC resource
(Example) # kill <process-ID>
Failover to a standby server occurs.
Volume manager monitor resource
When Volume Manager is lvm
Manually export the volume group from the standby server.
An error is detected in the monitor resource.
Dynamic DNS resource
Start the Dynamic DNS resource while the name resolution service on the DNS server is not running.
Dynamic DNS resource is not activated.
Dynamic DNS monitor resource
Shut down a normally operating DNS server or stop the running name resolution service.
Dynamic DNS monitor resource detects an error and takes action for it. The VHOST resource fails to stop when there is resource reactivation or a failover.
use the nsupdate command to delete the virtual host name that is registered in the Dynamic DNS resource from the DNS server.
Dynamic DNS monitor resource registers the virtual host name on the DNS serve again within the monitor interval.
This section explains how to back up and restore the file system. Before you start using your cluster system, make sure to simulate a backup operation.
To back up the file system, follow the procedures below.
For details on the backup with the disk image, refer to "Maintenance Guide" -> "The system maintenance information", and the manual of your backup software.
To back up the file system while the EXPRESSCLUSTER daemon is active, follow the procedures below.
Make sure the cluster is working normally.
To prevent the heartbeat time-out caused by highly loaded user space from occurring, change the time-out ratio of EXPRESSCLUSTER by using the time-out temporary adjustment command.
If you want to triple the current time-out and make this temporary setting valid for one hour, run the following command:
# clptoratio -r 3 -t 1h
Back up the shared disk, mirrored disk or hybrid disk.
For backing up a shared disk, the disk resource in group resources needs to be activated on the server for backup.
For backing up a mirror disk or hybrid disk, the mirror disk resource or hybrid disk resource in group resources needs to be activated on the server for backup. However, a backup command for directly accessing partition devices is not supported for mirror disks and hybrid disk.
Set the time-out ratio adjusted with the time-out temporary adjustment command back to the original:
9.2.2. Backing up while EXPRESSCLUSTER is inactive
To back up the file system while the EXPRESSCLUSTER daemon is inactive, follow the procedures below.
Make sure the cluster is working normally.
Stop the EXPRESSCLUSTER daemon.
# clpcl -t -a
Back up the file system and shared disk.
For the shared disk, manually mount the file system on the shared disk you want to back up. Make sure to unmount the file system after you have completed the backup.
Start the EXPRESSCLUSTER daemon.
# clpcl -s -a
9.2.3. Backing up while EXPRESSCLUSTER is inactive (For Replicator or Replicator DR)
It is not recommended to back up the file system while the EXPRESSCLUSTER daemon is inactive.
You also need to simulate restoration operation before starting to use your cluster system.
For details on the restoration with the disk image, refer to "Maintenance Guide" -> "The system maintenance information", and the manual of your backup software.
To restore the file system, follow the procedures below.
9.3.1. Restoring the file system containing the /opt/nec/clusterpro directory
From a server normally running in the cluster, back up the cluster configuration data to an external medium.
# clpcfctrl --pull -l -x <the path to the directory where the configuration data is stored>
After backing up the data, unmount the external medium.
Note
Perform the subsequent procedure on the server to be restored.
Run the following command to disable services on the server to be restored.
clpsvcctrl.sh--disable-a
Execute cluster shutdown by using Cluster WebUI or the clpstdn command, and then, restart the server.
Restore the file system on the server to be recovered (there is no cluster-dependent work).
Verify if the EXPRESSCLUSTER Server is installed on the restored file system with the following command:
rpm-qiexpresscls
For Ubuntu, run the following command.
dpkg-sclusterpro
When the EXPRESSCLUSTER Server is installed, proceed to Step (6).
When the EXPRESSCLUSTER Server is not installed, proceed to Step (7).
If the EXPRESSCLUSTER Server is installed, run the following command to uninstall it:
rpm-eexpresscls
For Ubuntu, run the following command.
dpkg-rclusterpro
Note
Do not specify options other than the one stated above.
For details, see "4.2.Setting up the EXPRESSCLUSTER Server" in "4.Installing EXPRESSCLUSTER" in this guide. If there is any server in the cluster on which an update of the EXPRESSCLUSTER Server is applied, apply the same update to this server. Make sure that the same version of the EXPRESSCLUSTER Server is installed on all servers in the cluster.
Mount an external medium in the server where the EXPRESSCLUSTER Server was reinstalled.
Note
You have to restart the server where the EXPRESSCLUSTER Server was reinstalled after reinstallation.
Register the cluster configuration data which was backed up in Step 1 with the server by running the cluster creation command:
# clpcfctrl --push -x <path to the directory where configuration data is saved>Command succeeded.(code:0)
if the command is successfully displayed and completed.
To prevent the heartbeat time-out caused by heavily loaded user space from occurring, change the time-out ratio of EXPRESSCLUSTER with the time-out temporary adjustment command.
If you want to triple the current time-out and make this temporary setting valid for one hour, run the following command:
# clptoratio -r 3 -t 1h
Restore the shared disk.
The disk resource of the group resource should be active on the server to be restored.
Set the time-out ratio adjusted with the timeout temporary adjustment command back to the original ratio:
Run the command below to set the disk resource partition to ReadWrite as needed. [7]
For example, when the disk resource partition device is /dev/sdb5:
# clproset -w -d /dev/sdb5
Manually mount the file system on the shared disk to be restored. Make sure to unmount the file system when you have completed restoration.
Run the command below to set the disk resource partition to ReadOnly as needed. [7] Do not specify ReadOnly for the device used by a volume manager resource.
For example, when the disk resource partition device is /dev/sdb5:
9.3.3. Restoring the data on the mirror disk or the hybrid disk
The following describes how to restore the data on the mirrored disk resource or the hybrid disk resource.
Restoring while EXPRESSCLUSTER is active
Make sure that the cluster is working normally.
To prevent the heartbeat time-out caused by heavily loaded user space from occurring, change the time-out ratio of EXPRESSCLUSTER with the time-out temporary adjustment command.
If you want to triple the current time-out and make this temporary setting valid for one hour, run the following command.
# clptoratio -r 3 -t 1h
Restore the mirrored disk or the hybrid disk.
Mirror disk resource or hybrid disk resource of the group resource should be active on the server where you want to restore them.
Set the time-out ratio adjusted with the time-out temporary adjustment command back to the original.
Before you start using your cluster system, check to see your cluster system work properly and make sure you can use the system properly. The operations described below can be executed by using Cluster WebUI or EXPRESSCLUSTER commands. For details of functions of Cluster WebUI, see the online manual.
To activate a cluster, follow the instructions below:
When you are using any shared or external mirror disk, start the disk.
Start all the servers in the cluster.
Note
When you start all the servers in the cluster, make sure they are started within the duration of time set to Server Sync Wait Time on the Timeout tab of the Cluster Properties in the Cluster WebUI. Note that failover occurs if startup of any server fails to be confirmed within the specified time duration.
Note
The shared disk spends a few minutes for initialization after its startup. If a server starts up during the initialization, the shared disk cannot be recognized. Make sure to set servers to start up after the shared disk initialization is completed.
The entire cluster can be shut down by running the clpstdn command or executing cluster shutdown from the Cluster WebUI. By shutting down a cluster, all servers in the cluster can be stopped properly as a cluster system.
When you want to update the cluster configuration information or EXPRESSCLUSTER, you can stop the EXPRESSCLUSTER daemon without stopping the current operation. Stopping the EXPRESSCLUSTER in this way is referred to as "suspending". Returning from the suspended status to the normal operation status is referred to as "resuming".
When suspending or resuming a cluster, a request for processing is issued to all the servers in the cluster. Suspending of a cluster must be executed while the EXPRESSCLUSTER daemon is active on all the servers in the cluster.
Use EXPRESSCLUSTER commands or Cluster WebUI to suspend or resume a cluster.
When a cluster is suspended, some functions are disabled, as described below because the EXPRESSCLUSTER stops while the active resources are kept active.
All heartbeat resources stop.
All monitor resources stop.
Groups or group resources are disabled (cannot be started, stopped, or moved).
To make the EXPRESSCLUSTER daemon not start at the time the operating system is started up, you can disable it with the command. The following describes how to disable the EXPRESSCLUSTER daemon.
Follow the procedures below to disable the EXPRESSCLUSTER daemon:
Run the following command to disable services on the server where you want to disable the EXPRESSCLUSTER daemon.
clpsvcctrl.sh--disablecoremgr
Restart the server by using the Cluster WebUI or the clpdown command.
10.2.3. Enabling the disabled EXPRESSCLUSTER daemon
Follow the procedures below to enable the disabled EXPRESSCLUSTER daemon again:
On the server where the EXPRESSCLUSTER daemon is disabled, run the following command in the following order to enable services.
To start Integrated Cluster WebUI, follow these steps:
Start a Web browser.
In the address bar of the browser, enter the IP address and port number of a server where EXPRESSCLUSTER Server is installed, and add integ.html to the URL as follows:
http://ip-address:port/integ.html
ip-address
Specify the actual IP address of a server where EXPRESSCLUSTER Server is installed.
port
Specify the same port number as that of WebManager specified during the installation (default, 29003).
Integrated Cluster WebUI is started.
When the login screen appears, enter a username and password to log in.
10.3.4. Registering a cluster system in Integrated Cluster WebUI
Registering a cluster in Integrated Cluster WebUI also requires choosing OS Authentication Method, a method to log in to Cluster WebUI.
For information on how to register it, see the online help of Integrated Cluster WebUI.
In case of disconnected communication to the IP address entered during the registration, also register an IP address connectable to each server, in IP address for Integrated Cluster WebUI. (See "Reference Guide" -> "Parameter details" -> "Cluster properties" -> "WebManager tab" -> "IP address for Integrated Cluster WebUI".)
You must log on as root user when uninstalling the EXPRESSCLUSTER Server. It is recommended that you obtain a cluster configuration before uninstalling the EXPRESSCLUSTER Server. For details, refer to "EXPRESSCLUSTER command reference" in the "Reference Guide".
Follow the procedures below to uninstall the EXPRESSCLUSTER Server:
If the SNMP linkage function has been used, you must cancel the linkage before uninstalling EXPRESSCLUSTER Server. For how to cancel the settings of the SNMP linkage function, see "11.1.2.Canceling the SNMP linkage function settings".
Run the following command to disable the following services.
clpsvcctrl.sh--disable-a
Restart the server by using the Cluster WebUI or the clpdown command.
If SELinux is enabled, delete its settings by executing the following command:
clpselctrl.sh--delete
Note
ValueError messages may appear during execution, but there is no problem as long as clpselctrl.sh:Commandsucceeded. is displayed at the end.
Run the rpm -e expresscls command.
For Ubuntu, run dpkg -r expresscls. However, this does not delete the configuration data or internal log under the installation directory of Ubuntu. If they are unnecessary, manually delete them.
Note
Do not specify other options than the one stated above.
11.1.2. Canceling the SNMP linkage function settings
You must cancel the SNMP function settings before uninstalling the EXPRESSCLUSTER Server.
Follow the procedure below to cancel the SNMP linkage function settings.
Note
To cancel the SNMP linkage function settings, you must log in as the root user.
The description related to Net-SNMP in the uninstallation procedure may vary depending on the distribution.
Stop the snmpd daemon.
Note
The daemon can usually be stopped by the following command:
For an init.d environment:
/etc/init.d/snmpdstop
For a systemd environment:
systemctlstopsnmpd
Cancel registration of the SNMP linkage function in the configuration file for the snmpd daemon.
Open the configuration file with a text editor.
Delete the following lines from the configuration file:
To reinstall the EXPRESSCLUSTER Server, you have to prepare the cluster configuration data created by the Cluster WebUI.
If you do not have the cluster configuration data created by the Cluster WebUI at hand, you can back up the data with the clpcfctrl command. For details, see "EXPRESSCLUSTER command reference" in the "Reference Guide".
To reinstall EXPRESSCLUSTER Server on the entire cluster
To reinstall the EXPRESSCLUSTER Server, follow the procedures below:
You have to restart the server on which you reinstalled the EXPRESSCLUSTER Server.
Distribute the configuration data to servers of which the EXPRESSCLUSTER Server has been reinstalled from the server where it has not been reinstalled. Log on to one of the server where the EXPRESSCLUSTER Server has not been reinstalled. Run one of the following commands:
If mirror resources are configured on the distributed configuration data, initializing the device specified as a cluster partition of mirror resources is required. Run the clpmdinit command to initialize it. For details, see "EXPRESSCLUSTER command reference" in the "Reference Guide".
Register the license only if the option of the node license will be used on the server where the EXPRESSCLUSTER Server is reinstalled. For more information, refer to "5.3.Registering the node license ".
Restart the server on which you reinstalled the EXPRESSCLUSTER Server.
When the command was executed, the following message appeared in the console:
Log in as root.
The command was executed by a general user.
Log on as root user or log on again after changing to root user with su -.
When the command was executed at the license registration, the following message appeared in the console:
Command succeeded. But the license was not applied to all the servers in the cluster because there are one or more servers that are not started up.
The transaction server may not be active, or the cluster configuration data may be yet to be distributed.
Check again whether the transaction server is activated and the cluster configuration data is distributed on all servers. If either of them is not done yet, complete the task and register the license again.
When the cluster was shut down and rebooted after distribution of the configuration data created by the Cluster WebUI to all servers, the following message was displayed on the alert log, and the cluster stopped.
The license is not registered. (Product name:%1)
%1: Product name
The cluster has been shut down and rebooted without its license being registered.
When the cluster was shut down and rebooted after distribution of the configuration data created by the Cluster WebUI to all servers, the following message appeared on the alert log, but the cluster is working properly.
The number of licenses is insufficient. The number of insufficient licenses is %1. (Product name:%2)
%1: The number of licenses in short of supply
%2: Product name
The number of licenses is insufficient.
Obtain a license and register it.
While the cluster was operated on the trial license, the following message appeared and the cluster stopped.
The trial license has expired in %1. (Product name:%2)
%1: Trial end date
%2: Product name
The license has already expired.
Ask your sales agent for extension of the trial version license, or obtain and register the product version license.
While the cluster was operated on the fixed term license, the cluster operation was disabled with the following message outputted:
The fixed term license has expired in %1. (Product name:%2)
%1: Fixed term end date
%2: Product name
Cluster operation is forcibly disabled since a valid license has not been registered.
The license has already expired.
Obtain the license for the product version from the vendor, and then register the license.
A server that is part of a cluster in a cluster system. In networking terminology, it refers to devices, including computers and routers, that can transmit, receive, or process signals.
In the figures of this guide, this icon represents EXPRESSCLUSTER.
When a cluster system is a data mirror type, the Group Resource List of the failover1 should look similar to the following:
button on the upper right of the screen.
