1. Preface

1.1. Who Should Use This Guide

The EXPRESSCLUSTER X Hardware Feature Guide is intended for system administrators. Detailed information of the functions for linking with specific hardware is covered in this guide.

The guide provides supplemental information to the "EXPRESSCLUSTER X Installation and Configuration Guide".

For information on the construction and the operation of clusters, refer to the guide.

1.2. How This Guide is Organized

• 2. Linkage with specific hardware: Provides information on linkage with specific hardware.

1.3. EXPRESSCLUSTER X Documentation Set

The EXPRESSCLUSTER X manuals consist of the following six guides. The title and purpose of each guide is described below:

Getting Started Guide

This guide is intended for all users. The guide covers topics such as product overview, system requirements, and known problems.

Installation and Configuration Guide

This guide is intended for system engineers and administrators who want to build, operate, and maintain a cluster system. Instructions for designing, installing, and configuring a cluster system with EXPRESSCLUSTER are covered in this guide.

Reference Guide

This guide is intended for system administrators. The guide covers topics such as how to operate EXPRESSCLUSTER, function of each module, and troubleshooting. The guide is supplement to the "Installation and Configuration Guide".

Maintenance Guide

This guide is intended for administrators and for system administrators who want to build, operate, and maintain EXPRESSCLUSTER-based cluster systems. The guide describes maintenance-related topics for EXPRESSCLUSTER.

Hardware Feature Guide

This guide is intended for administrators and for system engineers who want to build EXPRESSCLUSTER-based cluster systems. The guide describes features to work with specific hardware, serving as a supplement to the "Installation and Configuration Guide".

Legacy Feature Guide

This guide is intended for administrators and for system engineers who want to build EXPRESSCLUSTER-based cluster systems. The guide describes EXPRESSCLUSTER X 4.0 WebManager, Builder, and EXPRESSCLUSTER Ver 8.0 compatible commands.

1.4. Conventions

In this guide, Note, Important, See also are used as follows:

Note

Used when the information given is important, but not related to the data loss and damage to the system and machine.

Important

Used when the information given is necessary to avoid the data loss and damage to the system and machine.

See also

Used to describe the location of the information given at the reference destination.

The following conventions are used in this guide.

Convention	Usage	Example
Bold	Indicates graphical objects, such as fields, list boxes, menu selections, buttons, labels, icons, etc.	In User Name, type your name. On the File menu, click Open Database.
Angled bracket within the command line	Indicates that the value specified inside of the angled bracket can be omitted.	clpstat -s [-h host_name]
Monospace (courier)	Indicates path names, commands, system output (message, prompt, etc), directory, file names, functions and parameters.	c:\Program files\EXPRESSCLUSTER
Monospace bold (courier)	Indicates the value that a user actually enters from a command line.	Enter the following: clpcl -s -a
Monospace italic (courier)	Indicates that users should replace italicized part with values that they are actually working with.	clpstat -s [-h host_name]

1.5. Contacting NEC

For the latest product information, visit our website below:

https://www.nec.com/global/prod/expresscluster/

2. Linkage with specific hardware

This chapter explains the settings for the linkage between specific hardware and EXPRESSCLUSTER.

This chapter covers:

• 2.1. Express5800/A1080a or Express5800/A1040a series linkage

2.1. Express5800/A1080a or Express5800/A1040a series linkage

2.1.1. Express5800/A1080a or Express5800/A1040a series linkage

Express5800/A1080a or Express5800/A1040a series linkage takes over operations by linking to EXPRESSCLUSTER if the BMC installed on a server detects an error.

This function uses BMC heartbeat resources and message receive monitor resources.

BMC heartbeat resources monitor whether the target servers are active by using the BMC network.

Setting a message receive monitor resource for Express5800/A1080a or Express5800/A1040a series linkage makes the BMC installed on the server report an error to execute a recovery operation.

2.1.2. Notes on Express5800/A1080a or Express5800/A1040a series linkage

To use this function, the following conditions must be satisfied.

• The hardware and firmware of the BMC must support this function. For the available models, refer to "Servers supporting Express5800/A1080a or Express5800/A1040a series linkage" in "Installation requirements for EXPRESSCLUSTER" in the "Getting Started Guide".

• The ipmi service must be started in advance.

• To use this function in the same environment as that for ESMPRO Agent, use the ESMPRO Agent control panel (ESMamsadm) to change the agent event operation after report from Shutdown to No Operation.

  Source name: ESMCOMMONSERVICE, ID: C00001FD, C0000203, C0000454

  [Starting the control panel (ESMamsadm)]

  1. Log in as a root user.

  2. Move to the directory containing ESMamsadm.

     # cd /opt/nec/esmpro_sa/bin/

  3. Start the control panel (ESMamsadm).

     # ./ESMamsadm

  [Specifying an operation after report for each monitor event]

  1. Start the control panel (ESMamsadm) and select Agent Event Setting.

  2. Select a source for Source Name. (Use the ↑ or ↓ key.)

  3. Select an event ID for Event ID. (Use the ↑ or ↓ key.)

  4. Click the Setting... button. The Monitor Event Setting window appears.

  5. Change Operation after Report from Shutdown to No Operation.

     For details, refer to the ESMPRO Agent User's Guide (Linux).

2.1.3. Creating configuration information for using Express5800/A1080a or Express5800/A1040a series linkage

The following describes, using an example, how to create the configuration information needed to use the Express5800/A1080a or Express5800/A1040a series linkage function.

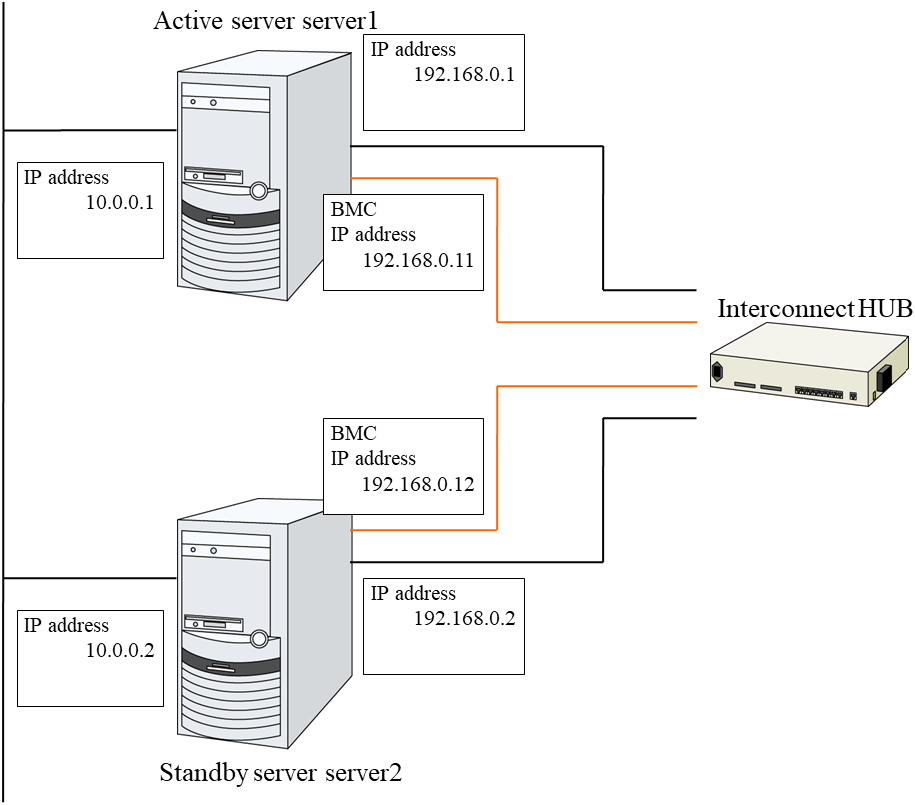

Sample cluster environment

The creation of configuration information is explained below using an example for configuring a cluster environment with the following network configuration. In the figure below, disk configuration and other data are omitted because they are not directly related to the Express5800/A1080a or Express5800/A1040a series linkage function.

The following table lists sample values for the cluster configuration information that is used to configure the cluster system shown in the above figure. The following pages provide a step-by-step procedure for creating cluster configuration information for these conditions. When actually setting values, use the configuration information for the cluster to be configured.

	Parameter to be set	Value
Cluster configuration	Cluster name	cluster
	Number of servers	2
	Number of failover groups	1
	Number of monitor resources	2
Heartbeat resources	Number of LAN heartbeat resources	2
	Number of BMC heartbeat resources	1
First server information	Server name	server1
(master server)	Interconnect IP address (dedicated)	192.168.0.1
	Interconnect IP address (backup)	10.0.0.1
	BMC server Web console IP address	192.168.0.11
Second server information	Server name	server2
	Interconnect IP address (dedicated)	192.168.0.2
	Interconnect IP address (backup)	10.0.0.2
	BMC server Web console IP address	192.168.0.12
First group	Type	Failover
	Group name	failover1
	Starting server	All servers
	Number of group resources	-
Group resource (omitted)	-	-
	-	-
	-	-
First monitor resource (default)	Type	User mode monitor
	Monitor resource name	userw
Second monitor resource	Type	Message receive monitor
	Category	BMCNOTICE
	Keyword (common)	192.168.0.1
	Keyword (Individual server setting: server1)	192.168.0.1
	Keyword (Individual server setting: server2)	192.168.0.2
	Recovery operation	Executes the failover for the recovery target.
	Recovery target	failover1

Procedure for creating cluster configuration information

The creation of cluster configuration information involves the following three basic steps: creating a cluster, creating groups, and creating monitor resources. The following shows the flow of the procedure for setting items specific to Express5800/A1080a or Express5800/A1040a series linkage. For other items, refer to "Creating the cluster configuration data" in the "Installation and Configuration Guide".

Note

An operation on cluster configuration information can be performed any number of times. Most settings can be modified later by using the rename function or the properties view function.

1 Creating a cluster

Create a cluster and add servers.

1-1 Adding a cluster

Add a cluster you want to construct and enter its name. This item contains no settings that are specific to Express5800/A1080a or Express5800/A1040a series linkage.

1-2 Adding servers

Add servers and set their server names, IP addresses, and other items. This item contains no settings that are specific to Express5800/A1080a or Express5800/A1040a series linkage.

1-3 Setting the network configuration

Set the network configuration between servers that constitute the cluster. Set BMC heartbeat resources as an item specific to Express5800/A1080a or Express5800/A1040a series linkage.

1-4 Setting network partition resolution resources

Set the network partition resolution resources. This item contains no settings that are specific to Express5800/A1080a or Express5800/A1040a series linkage.

2 Creating a failover group

Create a failover group that operates as a unit when failover occurs. This item contains no settings that are specific to Express5800/A1080a or Express5800/A1040a series linkage.

2-1 Adding a failover group

Add a group that operates as a unit when failover occurs. This item contains no settings that are specific to Express5800/A1080a or Express5800/A1040a series linkage.

2-2 Adding a group resource

Add a resource that constitutes a group. This item contains no settings that are specific to Express5800/A1080a or Express5800/A1040a series linkage.

3 Creating a monitor resource

Create a monitor resource that monitors the specified target in the cluster.

3-1 Adding a monitor resource (message receive monitor)

Add a monitor resource to use.

1 Procedure for creating a cluster

First, create a cluster. To the created cluster, add a server that is part of the cluster and determine the priorities of the server and heartbeat. Only item 1-3 contains settings that are specific to Express5800/A1080a or Express5800/A1040a series linkage.

1-1 Adding a cluster

This item contains no settings that are specific to Express5800/A1080a or Express5800/A1040a series linkage.

1-2 Adding servers

This item contains no settings that are specific to Express5800/A1080a or Express5800/A1040a series linkage.

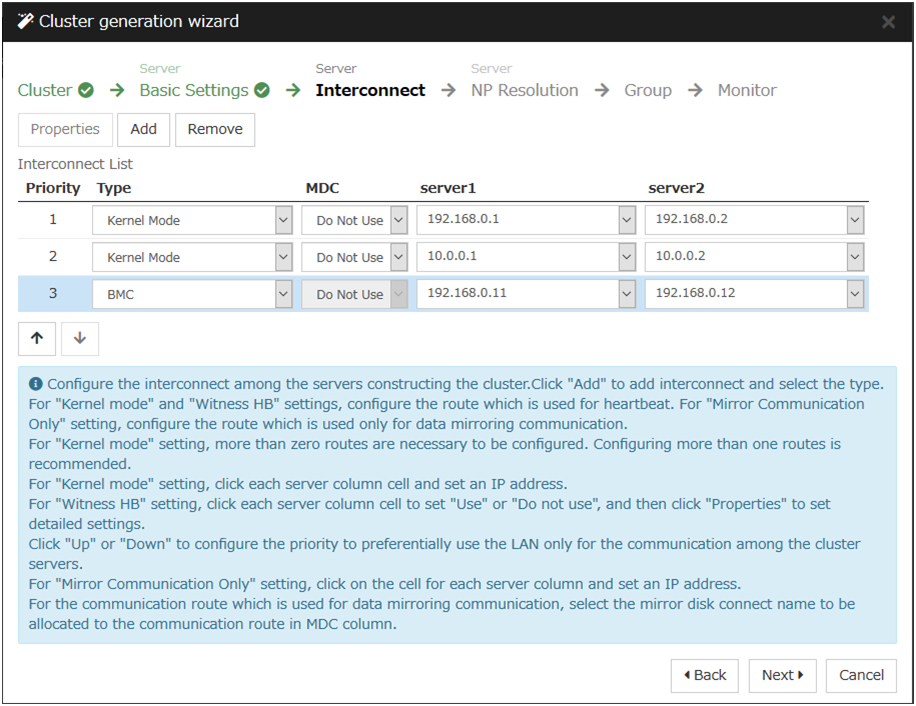

1-3 Setting the network configuration

Set the network configuration between the servers that constitute the cluster.

1. For the communication route used for BMC heartbeat transmission (interconnect), click a cell in the Type column, and then select BMC. Click a cell in the column for each server, and then enter the BMC server Web console IP address.

1-4 Setting network partition resolution resources

This item contains no settings that are specific to Express5800/A1080a or Express5800/A1040a series linkage.

2 Creating a failover group

This item contains no settings that are specific to Express5800/A1080a or Express5800/A1040a series linkage.

3 Creating a monitor resource

Create a monitor resource that monitors the specified target in the cluster. For the Express5800/A1080a or Express5800/A1040a series linkage function, set a message receive monitor. For details on the monitor, see "2.1.4. Express5800/A1080a or Express5800/A1040a series linkage with message receive monitor resources".

3-1 Adding a monitor resource (Message receive monitor)

Add a monitor resource that monitors the reception of an error report from the server.

1. Click Next in Group.

2. The Monitor Resource List appears. Click Add.

3. The Monitor Resource Definition dialog box appears. Select the monitor resource type (Message receive monitor) from the Type box, and then enter the monitor resource name (mrw1) in the Name box. Click Next.

4. Enter the monitoring settings. Click Next without changing the default values.

5. Enter BMCNOTICE in the Category box and the IP address of the OS side of each server that can communicate with the BMC as the IP address of the destination of the error report in the Keyword box. Use the Monitor(special) tab because the IP addresses differ depending on the server. In this example, enter 192.168.0.1 for Common and server1 and 192.168.0.2 for server2.

6. Set Executing failover the recovery target for Recovery Action. For Express5800/A1080a or Express5800/A1040a series linkage, select this setting for Recovery Action.

7. Set a recovery target. Click Browse. In the displayed tree view, select failover1 and then click OK. failover1 is set for Recovery Target.

8. Click Complete.

This completes the creation of cluster configuration information that is specific to Express5800/A1080a or Express5800/A1040a series linkage.

2.1.4. Express5800/A1080a or Express5800/A1040a series linkage with message receive monitor resources

This function enables EXPRESSCLUSTER to immediately execute a recovery operation if the BMC installed on the Express5800/A1080a or Express5800/A1040a series detects an error.

When this function is not used, and the BMC detects an error, server reset and other operations are executed immediately. For this reason, required operations such as application termination are not executed.

When this function is used, even if the BMC detects an error, server reset and other operations are performed after EXPRESSCLUSTER executes recovery.

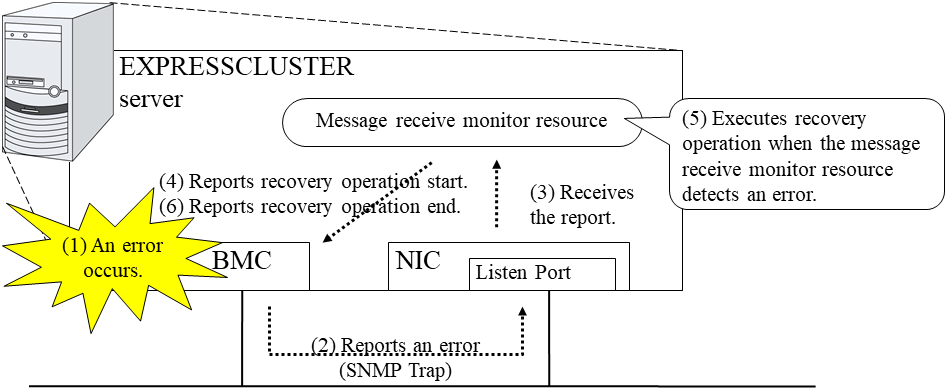

The following figure is an overview of the operation that is performed when Express5800/A1080a or Express5800/A1040a series linkage with message receive monitor resources is used.

2.1.5. Notes on Express5800/A1080a or Express5800/A1040a series linkage with message receive monitor resources

In addition to the conditions listed in "2.1.2. Notes on Express5800/A1080a or Express5800/A1040a series linkage" , the following condition must be satisfied.

• Because SNMP Traps are used for reporting an error from the BMC to a message receive monitor resource, communication using TCP/IP must be enabled between the BMC and OS network interfaces.

Also note the following points when setting BMC linkage:

• Set BMCNOTICE for Category.

• Unique values must be specified for Keyword on different servers. Specify the IP address and port number on the OS side connected to the BMC on each server as the destination of error reports.

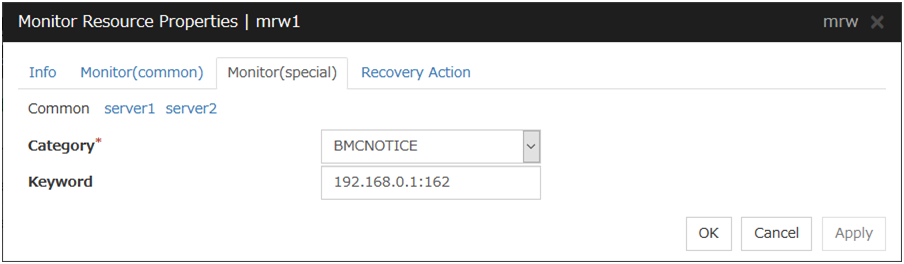

2.1.6. Monitor(special) tab

For more information of other tabs, see "Monitor resource details" in the "Reference Guide".

Category (within 32 bytes)

Specify a category.

Specify BMCNOTICE.

Keyword (within 1023 bytes)

Specify an IP address that can communicate with the BMC on each server. In this case, specify the IP address and port number for receiving error reports.

Use individual server settings to specify the values for each server.

The port number can be omitted (default: 162). To set the port number, use the same value for all the message receive monitor resources for the same server.

The format is as follows:

<IP address> [:<Port number>]
